ISLA214 Series

Manufacturer: Renesas Electronics Corporation

Catalog

EVAL BOARD ISLA214S50

Part	Supplied Contents	Number of A/D Converters	Data Interface	Number of Bits	Sampling Rate (Per Second)	Input Voltage (Value)	Utilized IC / Part	Contents	Power (Typ)	Architecture	Package / Case	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Name	Package Width	Input Type	Configuration	Number of Inputs	Mounting Type	Reference Type	Ratio - ADC	Ratio - S/H
Renesas Electronics Corporation ISLA214S50IR48EV1Z	Board(s)	1 count	JESD204B Serial	14 bits	500 MHz	2 Vpp	ISLA214S50	Board	1.06 W
Renesas Electronics Corporation ISLA214P13IRZ		1 count	LVDS - Parallel Parallel	14 bits	130 MHz					SAR	72-VFQFN Exposed Pad	1.7 V	1.9 V	1.9 V	1.7 V	-40 °C	85 °C	10 mm	72-QFN	10 mm	Differential	S/H-ADC	1	Surface Mount	Internal	1	1
Renesas Electronics Corporation ISLA214S50IR1Z		1 count	LVDS - Parallel Parallel	14 bits	500 MHz					Pipelined	48-VFQFN Exposed Pad	1.7 V	1.9 V	1.9 V	1.7 V	-40 °C	85 °C	7 mm	48-QFN	7 mm	Differential	S/H-ADC	1	Surface Mount	Internal	1	1
Renesas Electronics Corporation ISLA214P25IRZ		1 count	LVDS - Parallel Parallel	14 bits	250 MHz					SAR	72-VFQFN Exposed Pad	1.7 V	1.9 V	1.9 V	1.7 V	-40 °C	85 °C	10 mm	72-QFN	10 mm	Differential	S/H-ADC	1	Surface Mount	Internal	1	1
Renesas Electronics Corporation ISLA214P50IR72EV1Z	Board(s)	1 count	SPI	14 bits	500 MHz	2 Vpp	ISLA214P50	Board	900 mW
Renesas Electronics Corporation ISLA214P50IRZ		1 count	LVDS - Parallel Parallel	14 bits	500 MHz					SAR	72-VFQFN Exposed Pad	1.7 V	1.9 V	1.9 V	1.7 V	-40 °C	85 °C	10 mm	72-QFN	10 mm	Differential	S/H-ADC	1	Surface Mount	Internal	1	1

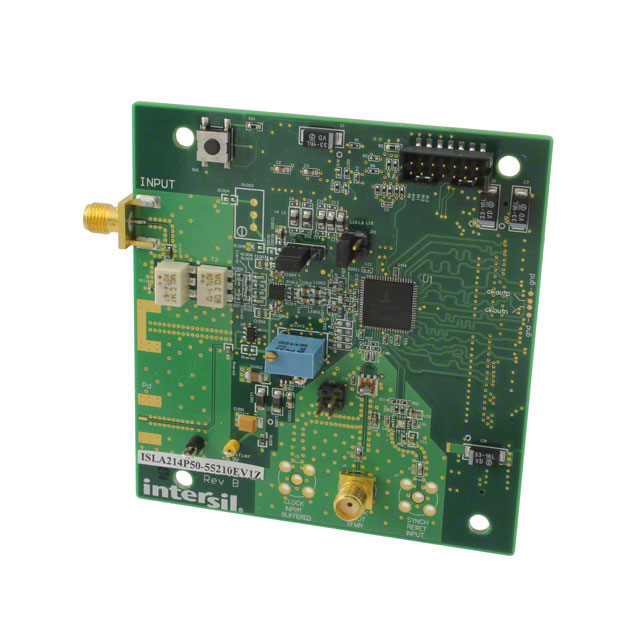

Renesas Electronics Corporation ISLA214P50-55210EV1Z	Board(s)	1 count	SPI	14 bits	500 MHz	2 Vpp	ISL55210 ISLA214P50	Board	900 mW
