1971837 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

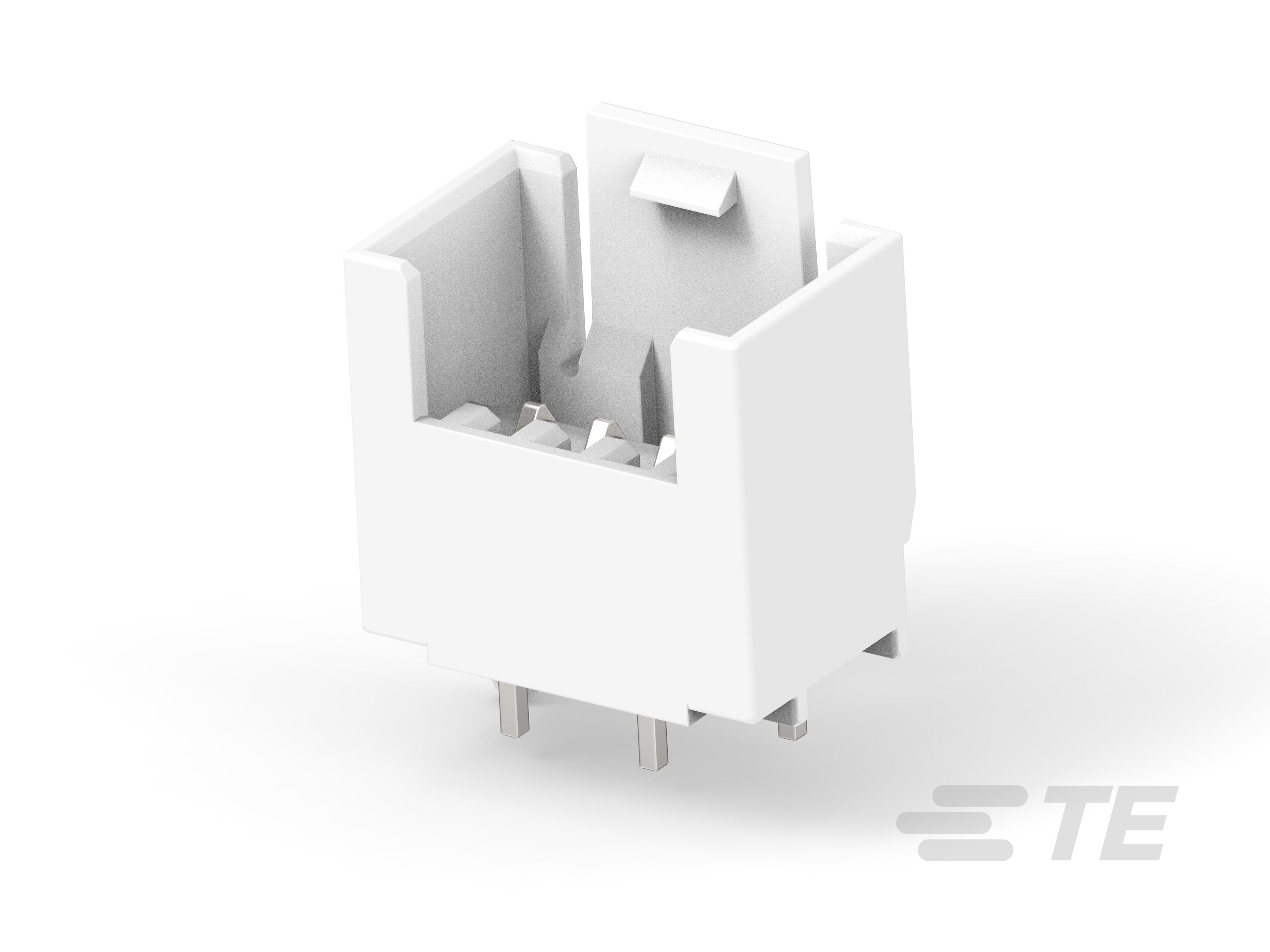

4P,RAST 2.5 TAB HEADER,EX- LOCKING,THV
| Part | Features | Insulation Material | Contact Length - Post | Style | Insulation Color | Number of Positions Loaded | Shrouding | Mounting Type | Contact Shape | Fastening Type | Contact Material | Material Flammability Rating | Contact Finish - Mating | Contact Type | Connector Type | Termination | Insulation Height | Number of Positions | Number of Rows | Contact Finish - Post | Operating Temperature (Max) | Operating Temperature (Min) | Pitch - Mating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | 0.114 in | Board Cable/Wire | Natural | All | Shrouded - 4 Wall | Through Hole | Rectangular | Locking Ramp | Copper Alloy | UL94 V-0 | Silver | Tab | Header | Solder | 0.61 in | 4 | 1 | Silver | 120 °C | -40 °C | 0.098 in | General Purpose |
 TE Connectivity AMP Connectors | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | 0.114 in | Board Cable/Wire | Natural | All | Shrouded - 4 Wall | Through Hole | Rectangular | Locking Ramp | Copper Alloy | UL94 V-0 | Silver | Tab | Header | Solder | 0.61 in | 5 | 1 | Silver | 120 °C | -40 °C | 0.098 in | General Purpose |
