1971773 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PTL 1X2 PLUG HSG HIGH TEMP KEY A LGR
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Pitch | Connector Type | Number of Rows | Color | Contact Type | Number of Positions | Contact Termination | Mounting Type | Fastening Type | Insulation Material | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Natural | Female Blade Socket | 2 | Crimp | Free Hanging (In-Line) | Latch Holder | Nylon Polyamide (PA) | Contacts Not Included |
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Natural | Female Blade Socket | 3 | Crimp | Free Hanging (In-Line) | Latch Holder | Nylon Polyamide (PA) | Contacts Not Included |
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Black | Female Blade Socket | 5 | Crimp | Free Hanging (In-Line) | Latch Holder | Nylon Polyamide (PA) | Contacts Not Included |
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Yellow | Female Blade Socket | 2 | Crimp | Free Hanging (In-Line) | Latch Holder | Glass Filled Polybutylene Terephthalate (PBT) | Contacts Not Included |
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Purple | Female Blade Socket | 3 | Crimp | Free Hanging (In-Line) | Latch Holder | Glass Filled Polybutylene Terephthalate (PBT) | Contacts Not Included |
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Purple | Female Blade Socket | 4 | Crimp | Free Hanging (In-Line) | Latch Holder | Glass Filled Polybutylene Terephthalate (PBT) | Contacts Not Included |

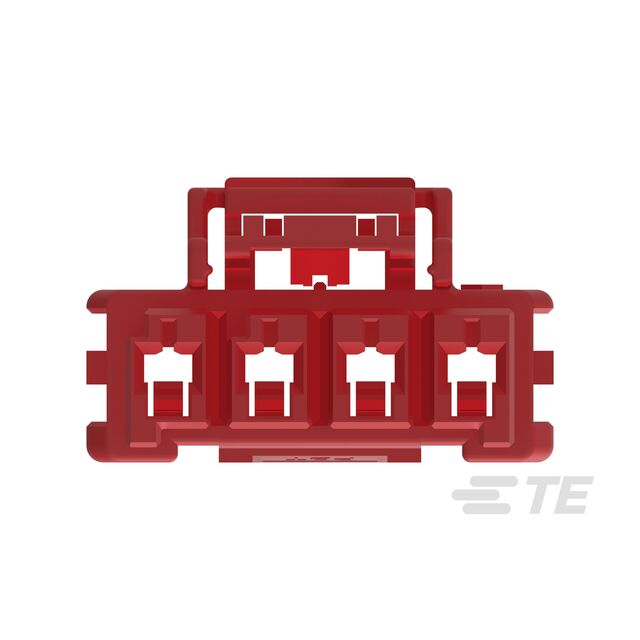

 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Red | Female Blade Socket | 4 | Crimp | Free Hanging (In-Line) | Latch Holder | Nylon Polyamide (PA) | Contacts Not Included |
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Black | Female Blade Socket | 2 | Crimp | Free Hanging (In-Line) | Latch Holder | Nylon Polyamide (PA) | Contacts Not Included |
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Natural | Female Blade Socket | 3 | Crimp | Free Hanging (In-Line) | Latch Holder | Glass Filled Polybutylene Terephthalate (PBT) | Contacts Not Included |
 TE Connectivity AMP Connectors | -55 °C | 105 °C | 0.236 in | Plug | 1 | Yellow | Female Blade Socket | 4 | Crimp | Free Hanging (In-Line) | Latch Holder | Glass Filled Polybutylene Terephthalate (PBT) | Contacts Not Included |
