1776131 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TERM BLOCK HDR 5POS VERT 3.81MM
| Part | Type | Mounting Type | Contact Mating Finish | Number of Levels | Positions Per Level | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - UL | Number of Positions | Current - UL | Color | Header Orientation | Termination Style | Pitch | Insulation Height | Housing Material | Material Flammability Rating | Contact Tail Length | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

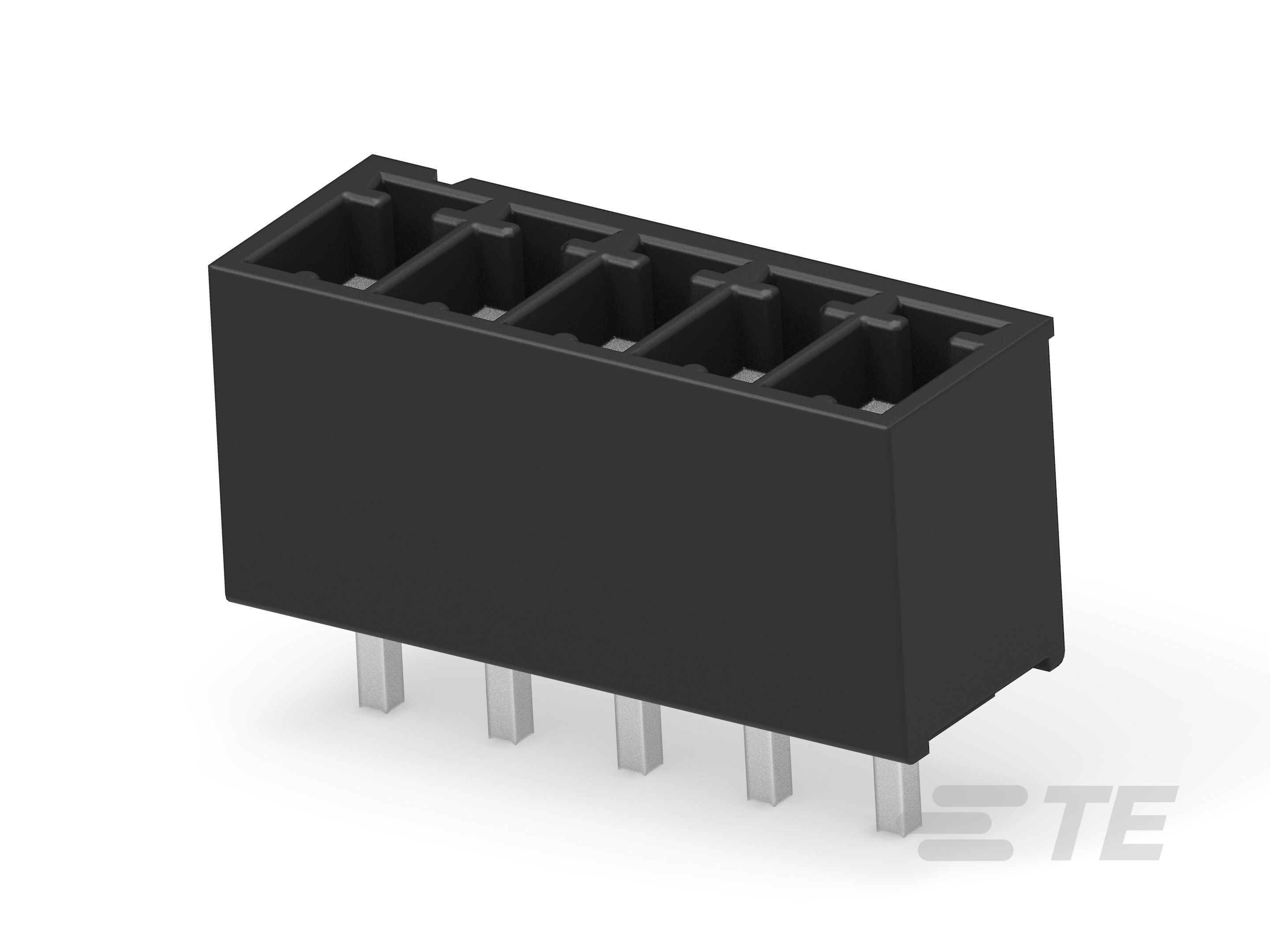

 TE Connectivity AMP Connectors | Header Male Pins Shrouded (4 Side) | Through Hole | Tin | 1 | 5 | -40 °C | 110 °C | 300 V | 5 | 11 A | Black | Vertical | Solder | 0.15 in | 0.362 in | Nylon PA Polyamide | UL94 V-0 | 0.134 in | Phosphor Bronze |
 TE Connectivity AMP Connectors | Header Male Pins Shrouded (4 Side) | Through Hole | Tin | 1 | 10 | -40 °C | 110 °C | 300 V | 10 | 11 A | Black | Vertical | Solder | 0.15 in | 0.362 in | Nylon PA Polyamide | UL94 V-0 | 0.134 in | Phosphor Bronze |

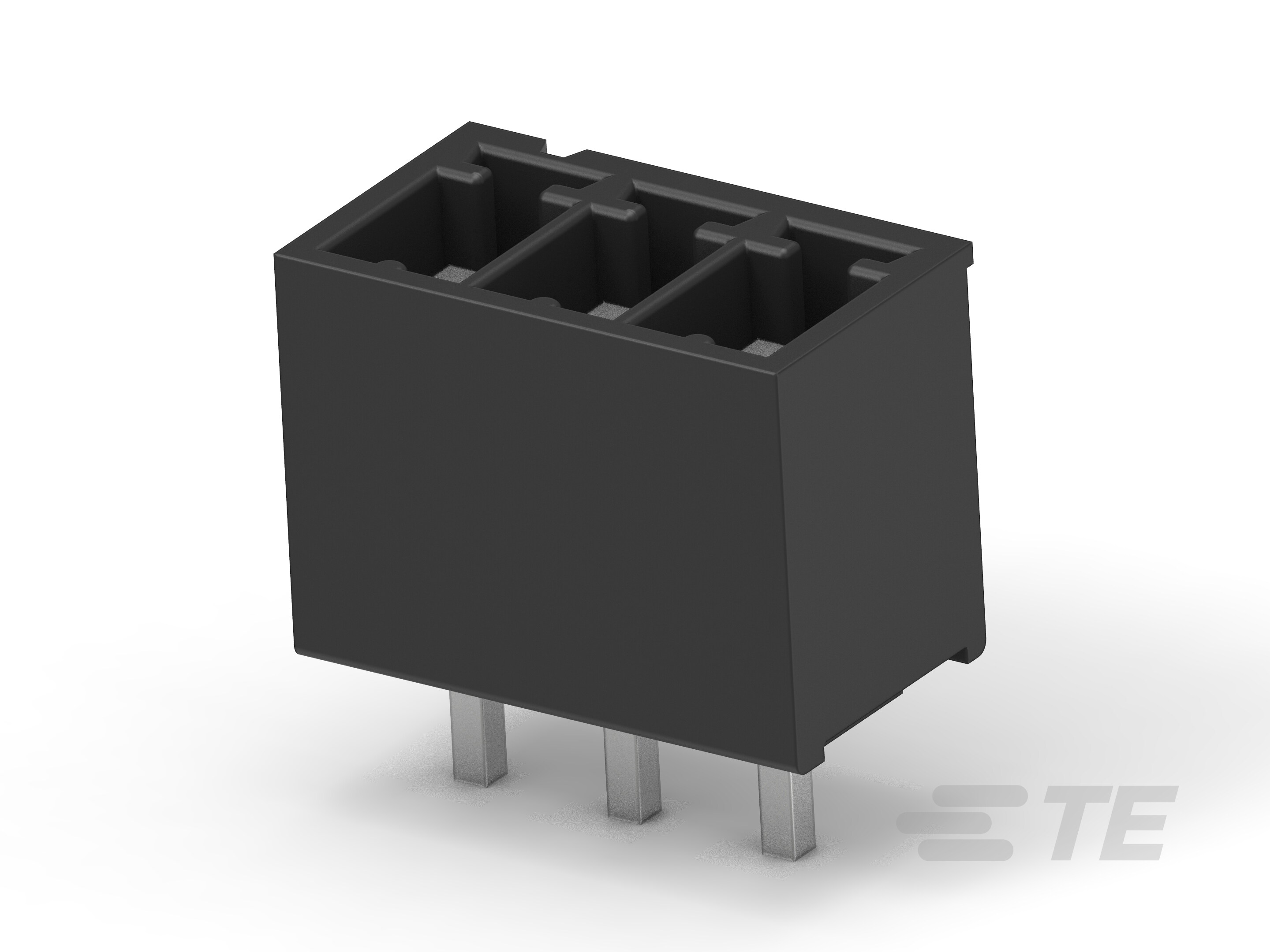

 TE Connectivity AMP Connectors | Header Male Pins Shrouded (4 Side) | Through Hole | Tin | 1 | 3 | -40 °C | 110 °C | 300 V | 3 | 11 A | Black | Vertical | Solder | 0.15 in | 0.362 in | Nylon PA Polyamide | UL94 V-0 | 0.134 in | Phosphor Bronze |
