FHJC2002G Series

Holdr, JCase w/cover 8AWG mount brkt

Catalog

Holdr, JCase w/cover 8AWG mount brkt

Part	Voltage	Mounting Type	Fuseholder Type	Termination Style	Current Rating	For Use With/Related Products	Number of Circuits	Fuse Length	Fuse Height	Fuse Width
LITTELFUSE FHJC2002G	58 V	Free Hanging (In-Line)	Holder	Wire Leads	60 A	Auto Link	1	0.555 in	1.063 in	0.472 in

Catalog

Holdr, JCase w/cover 8AWG mount brkt

Description

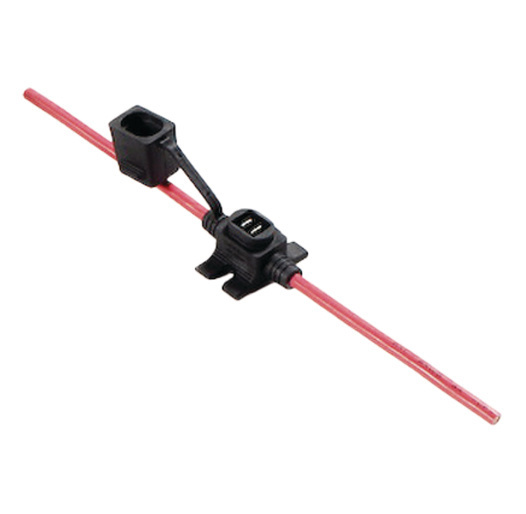

Easily install a JCASE® cartridge fuse up to 60 amps (sold separately) using the JCASE® FHJ Series 32V In-Line Cartridge Fuse Holder. The JCASE® FHJ Series fuse holder features black TPV housing with a UL 94 V-0 flammability rating and comes with tin-plated copper alloy contacts for reliable fuse installation. This model of the in-line fuse holder (FHJC2002G) features red 8 AWG GXL leads and built-in mounting brackets for simple installation and an integrated cover for added protection in harsh environments.
