053290 Series

Manufacturer: Molex

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 2.0MM BTB CONN. WAFER ASSY 06 CKT LF

Part	Overall Contact Length	Number of Rows	Pitch - Mating	Contact Shape	Number of Positions	Termination	Fastening Type	Shrouding	Material Flammability Rating	Contact Finish - Post	Connector Type	Mounting Type	Style	Insulation Material	Number of Positions Loaded	Contact Type	Insulation Height	Contact Material	Insulation Color	Contact Finish - Mating	Contact Length - Mating	Contact Length - Post	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Voltage Rating

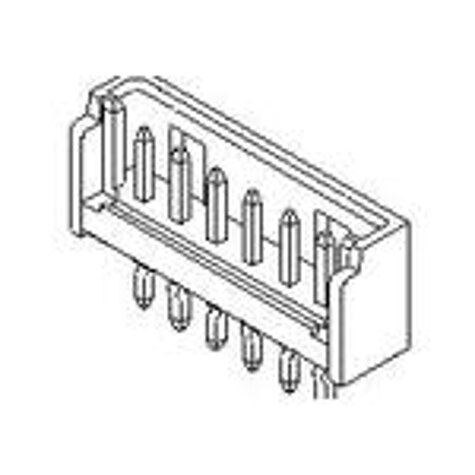

Molex 0532900680	0.335 in	1	0.079 in	Square	6	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass	Natural	Tin	0.13 in	0.126 in
Molex 0532901380	0.335 in	1	0.079 in	Square	13	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass	Natural	Tin	0.13 in	0.126 in	-40 °C	105 °C	1.5 A	125 V
Molex 0532900310	0.335 in	1	0.079 in	Square	3	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass		Tin	0.13 in	0.126 in
Molex 0532900710	0.335 in	1	0.079 in	Square	7	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass		Tin	0.13 in	0.126 in
Molex 0532901180	0.335 in	1	0.079 in	Square	11	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass	Natural	Tin	0.13 in	0.126 in
Molex 0532900780	0.335 in	1	0.079 in	Square	7	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass	Natural	Tin	0.13 in	0.126 in
Molex 0532900510	0.335 in	1	0.079 in	Square	5	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass		Tin	0.13 in	0.126 in
Molex 0532901210	0.335 in	1	0.079 in	Square	12	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass		Tin	0.13 in	0.126 in
Molex 0532900480	0.335 in	1	0.079 in	Square	4	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass	Natural	Tin	0.13 in	0.126 in
Molex 0532900410	0.335 in	1	0.079 in	Square	4	Kinked Pin Solder	Detent Lock	Shrouded - 3 Wall	UL94 V-0	Tin	Header	Through Hole	Board	Glass Filled Polybutylene Terephthalate (PBT)	All	Male Pin	0.236 in	Brass		Tin	0.13 in	0.126 in
