MT9V024 Series

CMOS Image Sensor, Digital, Global Shutter,VGA, 1/3"

Catalog

CMOS Image Sensor, Digital, Global Shutter,VGA, 1/3"

Part	Operating Temperature (Min)	Operating Temperature (Max)	Grade	Frames per Second	Package / Case	Type	Package Name	Package Length	Package Width	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Active Pixel Array Horizontal	Active Pixel Array Vertical	Qualification	Pixel Size (Length)	Pixel Size (Width)
ON Semiconductor MT9V024IA7XTR-DP	-40 °C	105 °C	Automotive	60 fps	52-LBGA	CMOS with Processor	52-IBGA	9 mm	9 mm	3.6 V	3 V	752 pixels	480 pixels	AEC-Q100	6 µm	6 µm
ON Semiconductor MT9V024IA7XTM-TR	-40 °C	105 °C	Automotive	60 fps	52-LBGA	CMOS with Processor	52-IBGA	9 mm	9 mm	3.6 V	3 V	752 pixels	480 pixels	AEC-Q100	6 µm	6 µm
ON Semiconductor MT9V024IA7XTR-DR	-40 °C	105 °C	Automotive	60 fps	52-LBGA	CMOS with Processor	52-IBGA	9 mm	9 mm	3.6 V	3 V	752 pixels	480 pixels	AEC-Q100	6 µm	6 µm
ON Semiconductor MT9V024IA7XTC-DP	-40 °C	105 °C	Automotive	60 fps	52-LBGA	CMOS with Processor	52-IBGA	9 mm	9 mm	3.6 V	3 V	752 pixels	480 pixels	AEC-Q100	6 µm	6 µm
ON Semiconductor MT9V024IA7XTC-DR1	-40 °C	105 °C		60 fps	52-LBGA Module	CMOS	52-IBGA	9 mm	9 mm	3.6 V	3 V	752 pixels	480 pixels		6 µm	6 µm
ON Semiconductor MT9V024IA7XTM-DR1	-40 °C	105 °C		60 fps		CMOS				3.6 V	3 V	752 pixels	480 pixels		6 µm	6 µm
ON Semiconductor MT9V024IA7XTM-DP	-40 °C	105 °C	Automotive	60 fps	52-LBGA	CMOS with Processor	52-IBGA	9 mm	9 mm	3.6 V	3 V	752 pixels	480 pixels	AEC-Q100	6 µm	6 µm

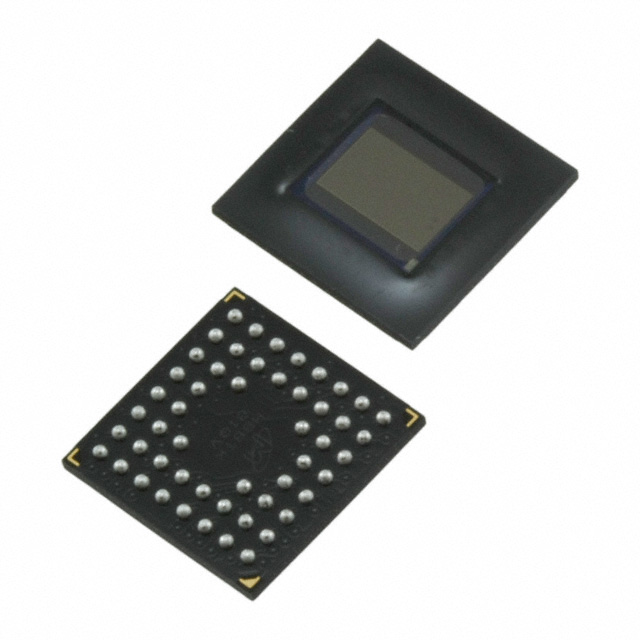

ON Semiconductor MT9V024IA7XTR-DP1	-40 °C	105 °C		60 fps		CMOS				3.6 V	3 V	752 pixels	480 pixels		6 µm	6 µm
ON Semiconductor MT9V024IA7XTM-TP	-40 °C	105 °C	Automotive	60 fps	52-LBGA	CMOS with Processor	52-IBGA	9 mm	9 mm	3.6 V	3 V	752 pixels	480 pixels	AEC-Q100	6 µm	6 µm
ON Semiconductor MT9V024IA7XTR-DR1	-40 °C	105 °C		60 fps		CMOS				3.6 V	3 V	752 pixels	480 pixels		6 µm	6 µm

Catalog

CMOS Image Sensor, Digital, Global Shutter,VGA, 1/3"

Key Features

• High Dynamic Range

Description

The MT9V024 6um global shutter HDR pixel technology uniquely allows automotive cameras to "freeze" fast moving objects, and capture all scene detail under extreme lighting conditions. The MT9V024 enhanced NIR pixel process provides excellent image quality in very low-light night conditions.
