53978 Series

Catalog

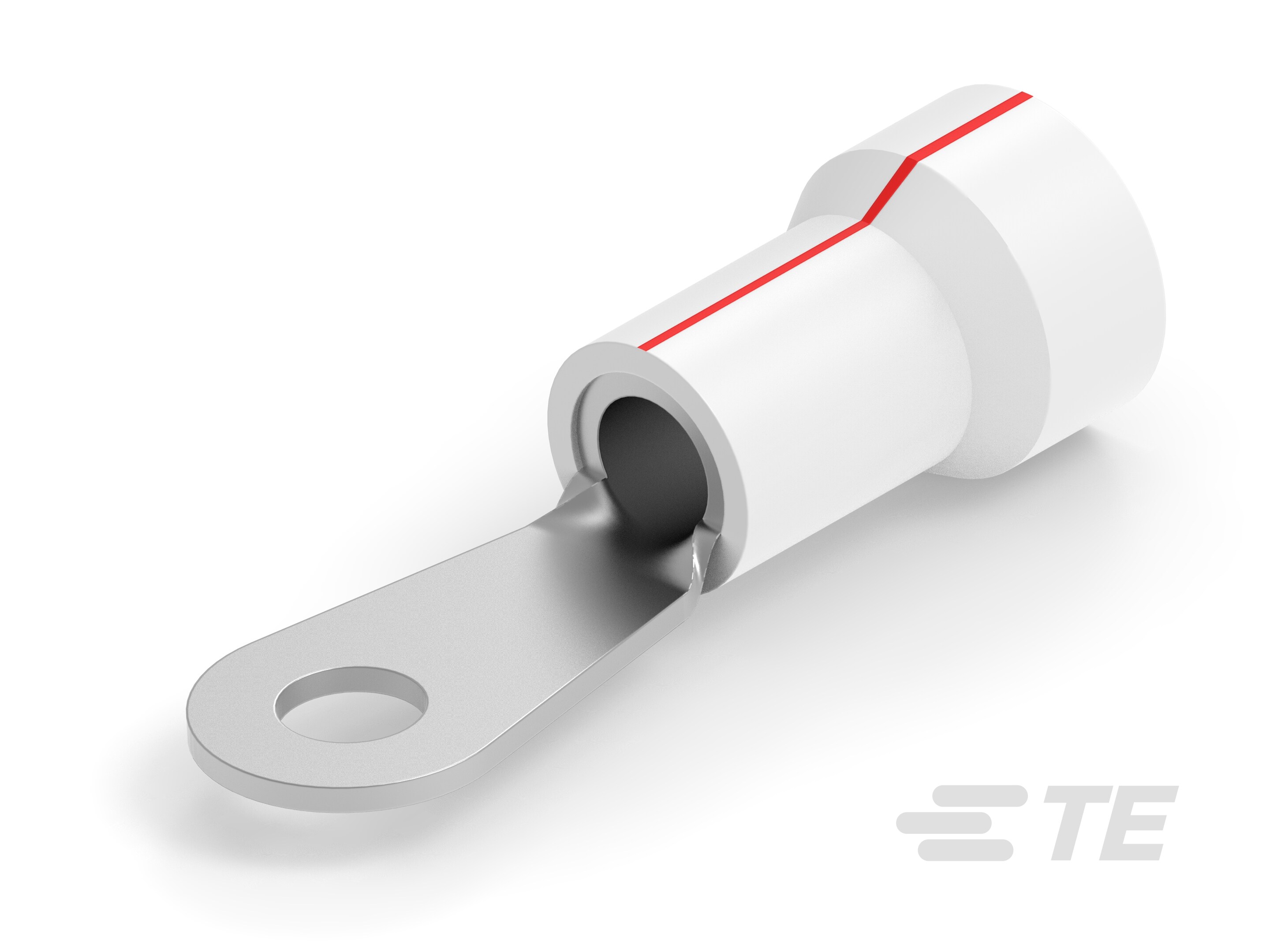

CONN RING D-SHAPE 8AWG #10 CRIMP

Part	Insulation Diameter	Material - Insulation	Terminal Type	Termination	Insulation	Mounting Type	Wire Gauge	Color	Contact Material	Length - Overall	Contact Finish	Width - Outer Edges	Thickness	Stud/Tab Size
TE Connectivity AMP Connectors 8-53978-2	0.38 in	Polyvinylidene Fluoride PVDF	D-Shaped	Crimp	Insulated	Free Hanging (In-Line)	8 AWG	Natural Red Stripe	Copper	1.562 in	Tin-Lead	0.431 in	0.04 in	10 Stud
TE Connectivity AMP Connectors 53978-1	0.38 in	Polyvinylidene Fluoride PVDF	D-Shaped	Crimp	Insulated	Free Hanging (In-Line)	8 AWG	Natural Red Stripe	Copper	1.562 in	Tin-Lead	0.431 in	0.04 in	10 Stud
