1877847 Series

Catalog

CONN PLUG MALE 7P GOLD SLDR CUP

Part	Cable Opening (Max)	Cable Opening (Min)	Connector Type	Color	Primary Material	Shell Material	Insert Material	Voltage Rating	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Termination	Contact Finish - Mating	Orientation Angle	Current Rating	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Contact Material
TE Connectivity AMP Connectors 1877847-4	0.256 in	0.209 in	Male Pins Plug	Black	Plastic	Thermoplastic	Polyphenylene Sulfide PPS	300 VAC/DC	Medical	-50 °C	170 °C	7	Solder Cup	Gold	80 °	5 A	29.5 Ąin	Free Hanging (In-Line)	Latch Lock	Copper Alloy

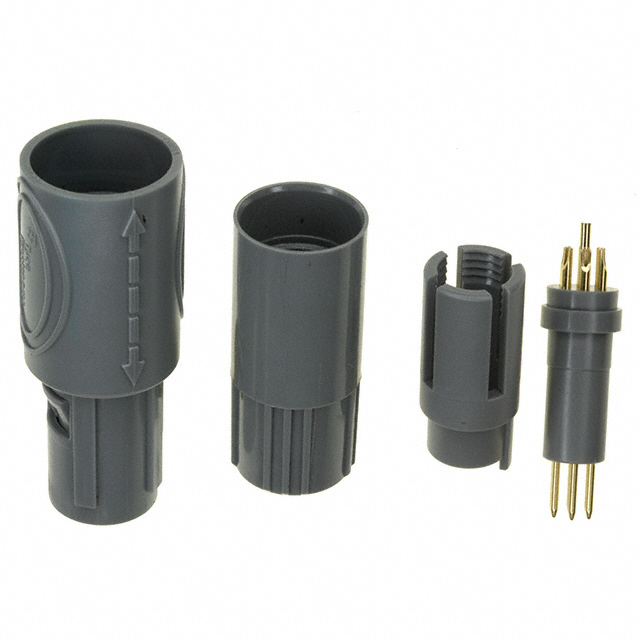

TE Connectivity AMP Connectors 1-1877847-0	0.256 in	0.209 in	Male Pins Plug	Gray	Plastic	Thermoplastic	Polyphenylene Sulfide PPS	300 VAC/DC	Medical	-50 °C	170 °C	7	Solder Cup	Gold	80 °	5 A	29.5 Ąin	Free Hanging (In-Line)	Latch Lock	Copper Alloy
TE Connectivity AMP Connectors 5-1877847-5	0.256 in	0.209 in	Male Pins Plug	Gray Green	Plastic	Thermoplastic	Polyphenylene Sulfide PPS	300 VAC/DC	Medical	-50 °C	170 °C	7	Solder Cup	Gold	0 °	5 A	29.5 Ąin	Free Hanging (In-Line)	Latch Lock	Copper Alloy
TE Connectivity AMP Connectors 7-1877847-0	0.256 in	0.209 in	Male Pins Plug	Blue Gray	Plastic	Thermoplastic	Polyphenylene Sulfide PPS	300 VAC/DC	Medical	-50 °C	170 °C	7	Solder Cup	Gold	80 °	5 A	29.5 Ąin	Free Hanging (In-Line)	Latch Lock	Copper Alloy
