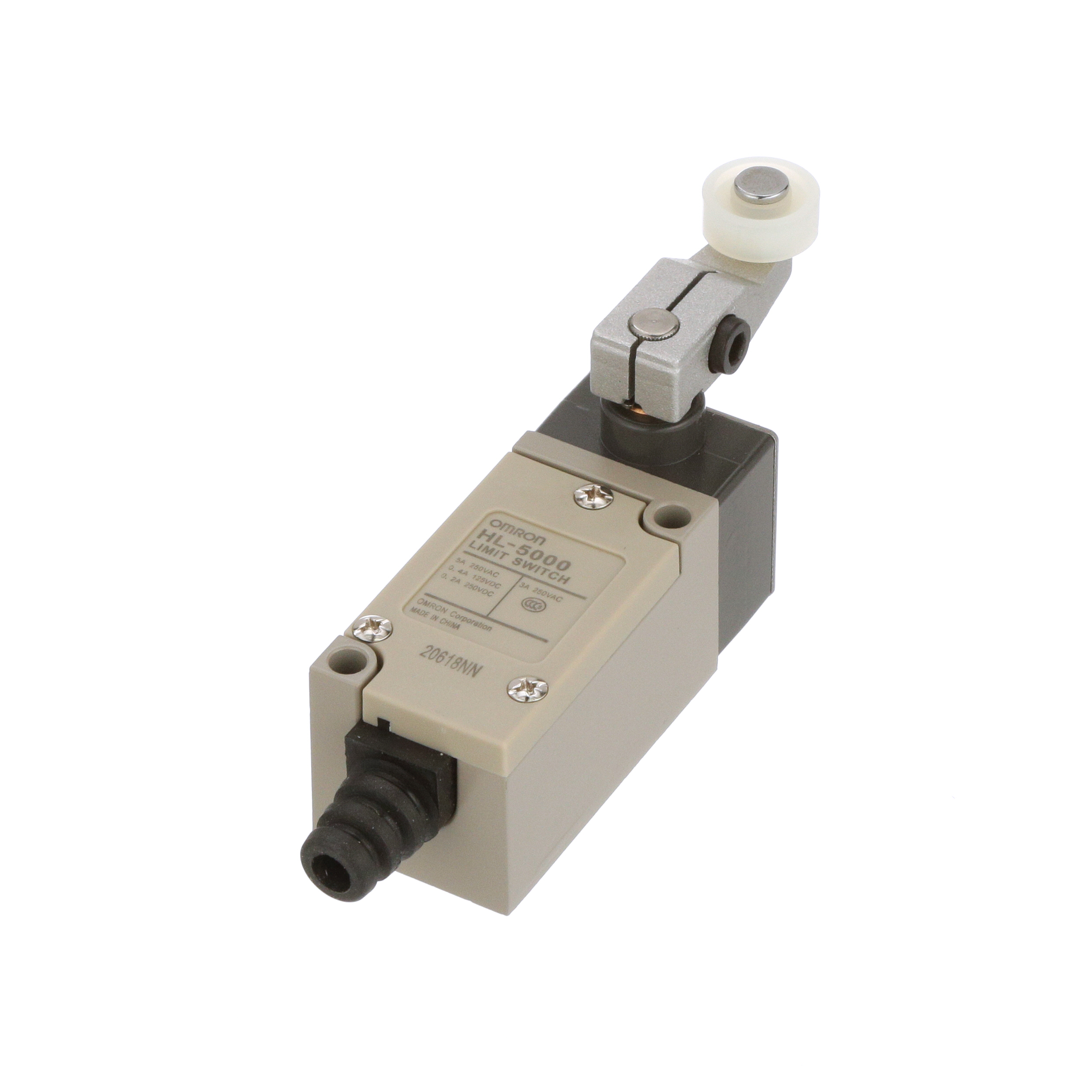

HL-5000 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
LIMIT SWITCHES LS COIL SPRING W/GROUND
| Part | Switch Function | Pretravel (Length) | Operating Force | Termination Style | Actuator Type | Ingress Protection IP Rating | Ingress Protection Description | Voltage Rating - DC | Operating Temperature (Min) | Operating Temperature (Max) | Mechanical Life (Cycles) | Circuit | Mounting Type | Voltage Rating - AC | Current Rating | Release Force | Overtravel (Angle) | Pretravel (Angle) | Differential Travel (Angle) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | On-Mom | 1.18 in | 150 gf | Screw Terminal | Rod Spring | IP65 | Dust Tight Water Resistant | 24 V | -5 °C | 60 °C | 10000000 Cycles | SPDT (DB/DM) | Chassis Mount | 125 V | 5 A | ||||
Omron Automation and Safety | On-Mom | 750 gf | Screw Terminal | Lever Roller | IP65 | Dust Tight Water Resistant | 24 V | -5 °C | 60 °C | 10000000 Cycles | SPDT (DB/DM) | Chassis Mount | 125 V | 5 A | 100 gf | 50 ° | 20 ° | 12 ° | |
 Omron Automation and Safety | On-Mom | 757 gf | Screw Terminal | Adjustable Rod Side Rotary | IP65 | Dust Tight Water Resistant | 24 V | -5 °C | 60 °C | 10000000 Cycles | SPDT (DB/DM) | Chassis Mount | 125 V | 5 A | 100 gf | 50 ° | 20 ° | 12 ° |
