747708 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

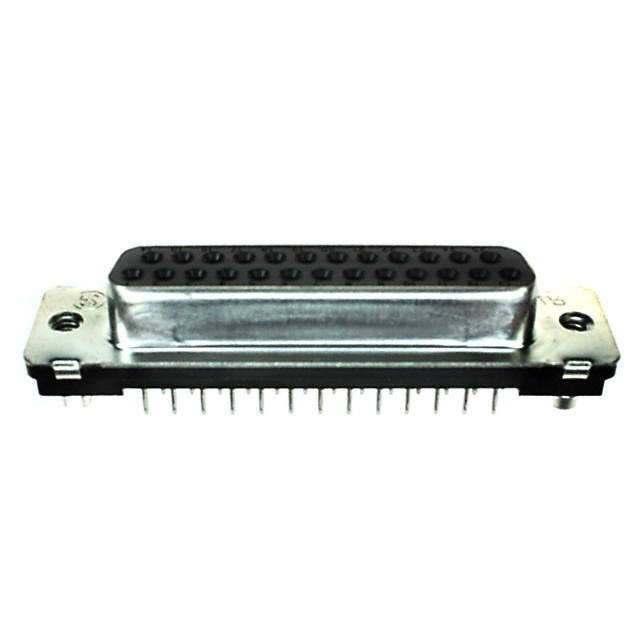

CONN D-SUB RCPT 25POS VERT SLDR
| Part | Termination | Connector Style | Contact Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Finish | Mounting Type | Voltage Rating | Flange Feature | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Color | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Solder | D-Sub | Phosphor Bronze | Signal | 105 ░C | -55 °C | UL94 V-0 | 6 A | 0.76 Ám | 30 Áin | 2 | Gold | Through Hole | 125 VDC | Housing/Shell (4-40) | Receptacle Female Sockets | B DB | 3 | Black | Thermoplastic |
