747943 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

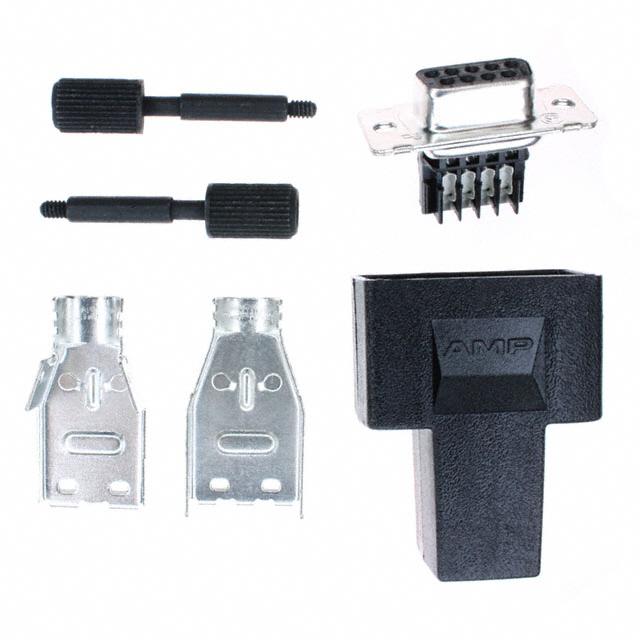

CONN D-SUB RCPT 9POS IDC
| Part | Connector Style | Material Flammability Rating | Contact Material | Wire Gauge [Min] | Wire Gauge [Max] | Number of Positions | Contact Finish | Contact Type | Flange Feature [custom] | Flange Feature [custom] | Current Rating (Amps) | Features | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Color | Mounting Type | Voltage Rating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | D-Sub | UL94 V-0 | Phosphor Bronze | 26 AWG | 30 AWG | 9 | Gold | Signal | Cable Side | Male Jackscrew (4-40) | Varies by Wire Gauge | Backshell Cover Mounting Hardware Shielded | Discrete Wire IDC | DE E | 1 | 105 ░C | -55 °C | 2 | 0.76 Ám | 30 Áin | Black | Free Hanging (In-Line) | 250 VDC | Receptacle Female Sockets |
