5414244 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

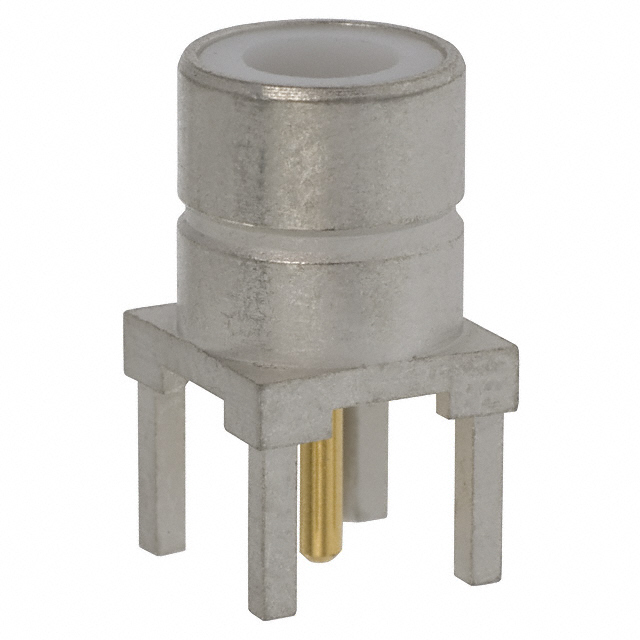

CONN SMB RCPT STR 75 OHM PCB
| Part | Insertion Loss | Body Finish | Body Material | Mating Cycles | Center Contact Plating | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Voltage Rating | Housing Color | Connector Style | Number of Ports | Center Contact Material | Mounting Type | Connector Type | Impedance | Shield Termination | Fastening Type | Frequency - Max | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.3 dB | Tin | Brass | 500 cycles | Gold | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | 335 V | Silver | SMB | 1 | Brass | Through Hole | Male Pin Receptacle | 75 Ohm | Solder | Snap-On | 4 GHz | Solder |
