2199298 Series

Catalog

IC & COMPONENT SOCKET, 16 CONTACTS, DIP SOCKET, 2.54 MM, 7.62 MM, PHOSPHOR BRONZE

Part	Contact Finish - Post	Housing Material	Contact Material - Post	Termination	Grid Rows	Number of Positions or Pins (Grid)	Grid Columns	Pitch - Post	Features	Pitch - Mating	Row Spacing	Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material - Mating	Mounting Type	Contact Resistance	Material Flammability Rating	Current Rating	Termination Post Length
TE Connectivity AMP Connectors 1-2199298-4	Tin	Glass Filled PBT Polybutylene Terephthalate	Brass Copper	Solder	2	16	8	0.1 in	Open Frame	0.1 in	0.3 in	0.3" (7.62mm) Row Spacing DIP	60 µin	Tin	-40 °C	105 °C	Phosphor Bronze	Through Hole	20 mOhm	UL94 V-0	1 A	0.118 in
TE Connectivity AMP Connectors 1-2199298-5	Tin	Glass Filled PBT Polybutylene Terephthalate	Brass Copper	Solder	2	18	9	0.1 in	Open Frame	0.1 in	0.3 in	0.3" (7.62mm) Row Spacing DIP	60 µin	Tin	-40 °C	105 °C	Phosphor Bronze	Through Hole	20 mOhm	UL94 V-0	1 A	0.118 in

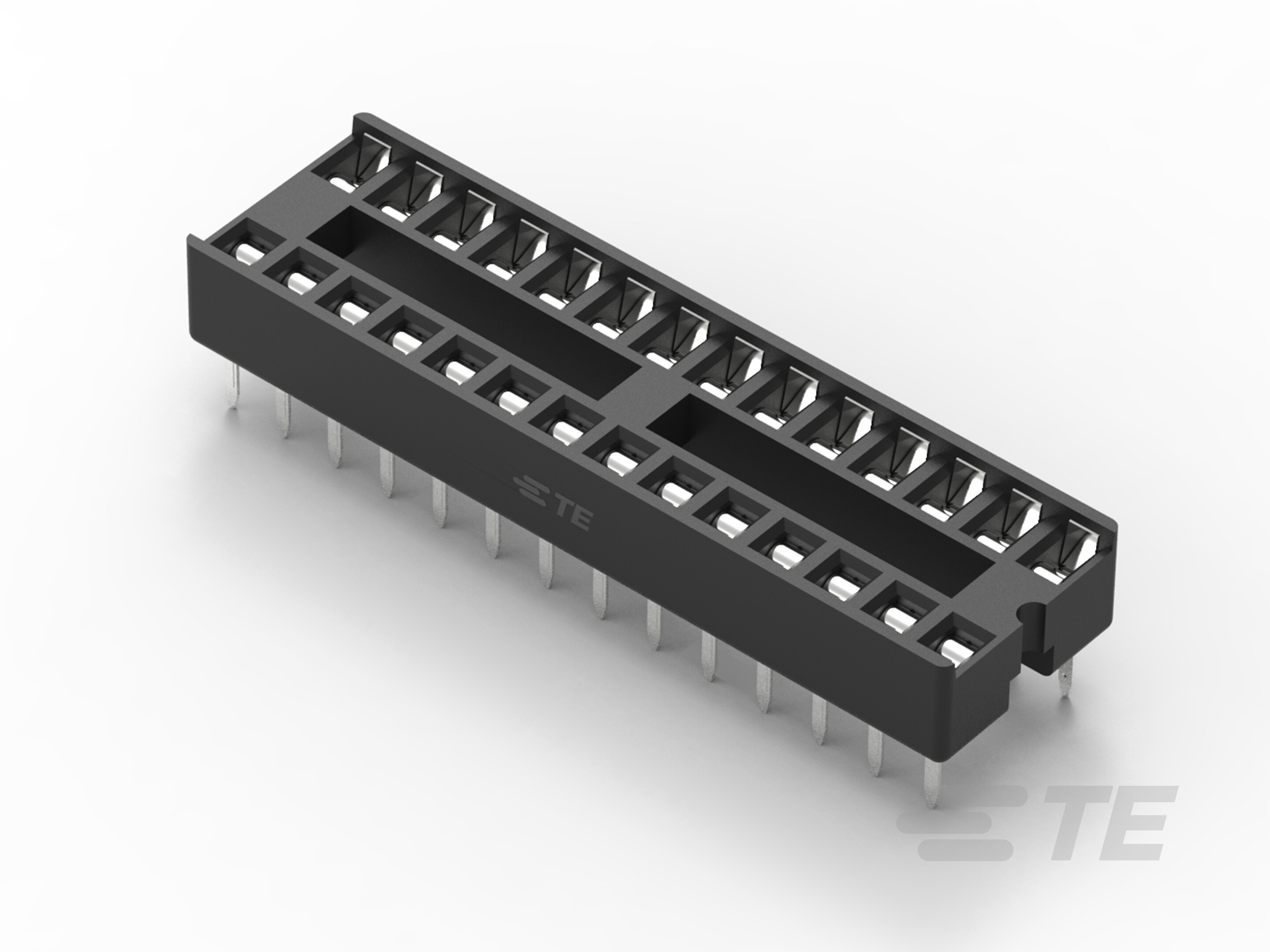

TE Connectivity AMP Connectors 1-2199298-9	Tin	Glass Filled PBT Polybutylene Terephthalate	Brass Copper	Solder	2	28	14	0.1 in	Open Frame	0.1 in	0.3 in	0.3" (7.62mm) Row Spacing DIP	60 µin	Tin	-40 °C	105 °C	Phosphor Bronze	Through Hole	20 mOhm	UL94 V-0	1 A	0.118 in
