090584 Series

Manufacturer: Molex

Catalog

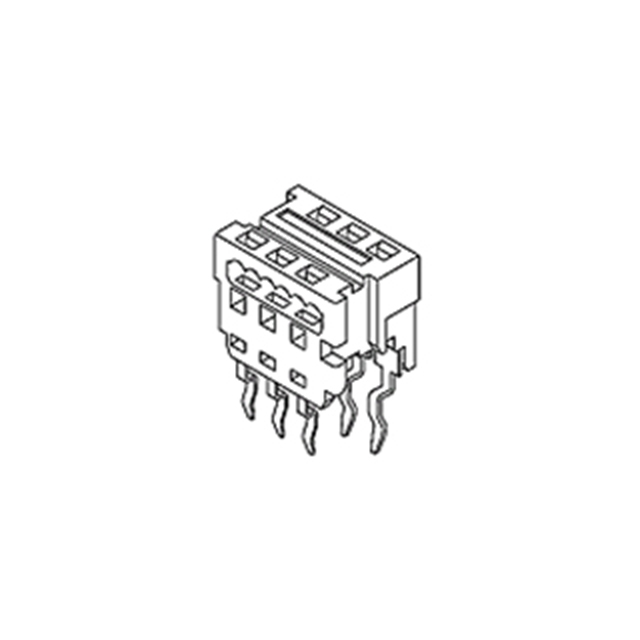

CONN DIP HDR IDC 22POS PCB

Part	Number of Positions Loaded	Number of Rows	Number of Positions	Cable Pitch	Row Spacing	Board-Side Pitch	Contact Finish	Cable Termination	Connector Type	Contact Finish Thickness	Color	Features	Mounting Type	Wire Gauge	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
Molex 0905841322	All	2	22	0.05 in	0.1 in	0.1 in	Tin	IDC	DIP Header Ribbon Cable	80 µin	White	Closed End	Press-Fit Through Hole	Stranded	28 AWG	26 AWG
Molex 0905842306	All	2	6	0.05 in	0.1 in	0.1 in	Tin	IDC	DIP Header Ribbon Cable	80 µin	White	Closed End	Press-Fit Through Hole	Stranded	28 AWG	26 AWG
Molex 0905842318	All	2	18	0.05 in	0.1 in	0.1 in	Tin	IDC	DIP Header Ribbon Cable	80 µin	White	Closed End	Press-Fit Through Hole	Stranded	28 AWG	26 AWG
Molex 0905842312	All	2	12	0.05 in	0.1 in	0.1 in	Tin	IDC	DIP Header Ribbon Cable	80 µin	White	Closed End	Press-Fit Through Hole	Stranded	28 AWG	26 AWG
Molex 0905842320	All	2	20	0.05 in	0.1 in	0.1 in	Tin	IDC	DIP Header Ribbon Cable	80 µin	White	Closed End	Press-Fit Through Hole	Stranded	28 AWG	26 AWG
