52951 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

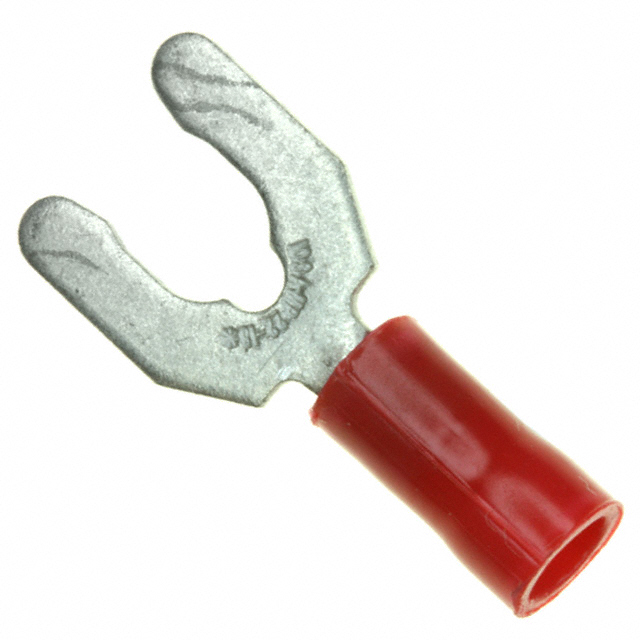

CONN SPADE TERM 16-22AWG #10 RED
| Part | Material - Insulation | Length - Termination | Length - Ring Center to Termination | Tongue Inside Opening | Insulation Diameter (Min) | Insulation Diameter (Max) | Termination | Length - Overall | Color | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Stud/Tab Size | Insulation | Mounting Type | Features | Contact Finish | Terminal Type | Contact Material | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Poly-Vinyl Chloride PVC | 0.416 in | 0.281 in | 0.19 in | 0.105 in | 0.14 in | Crimp | 0.92 in | Red | 16 AWG | 22 AWG | 10 Stud | Insulated | Free Hanging (In-Line) | Serrated Termination | Tin | Snap Spring | Brass | 0.406 in |
