626328 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

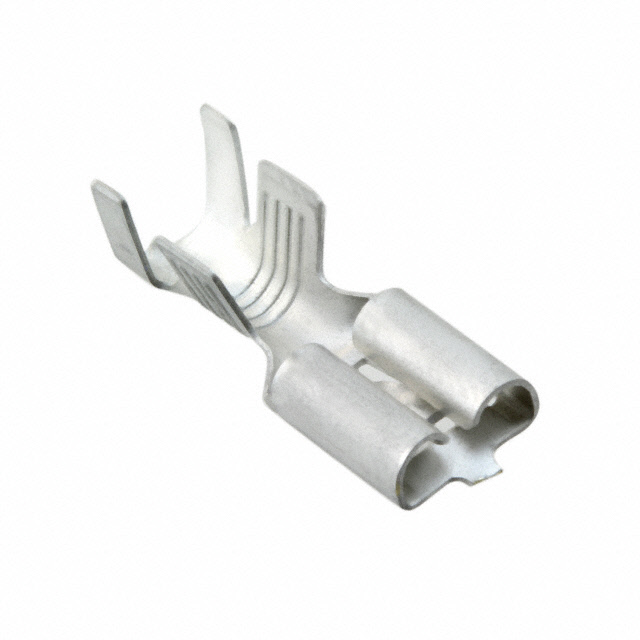

CONN QC RCPT 10-11AWG 0.250
| Part | Insulation Diameter (Max) | Insulation Diameter (Min) | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Gender | Contact Finish | Mounting Type | Tab Thickness | Length - Overall | Insulation | Termination | Tab Width | Contact Material | Wire Gauge (Cross-Sectional Area) (Max) | Wire Gauge (Cross-Sectional Area) (Min) | Tab Length | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.197 in | 0.134 in | 10 AWG | 11 AWG | Female | Silver | Free Hanging (In-Line) | 0.032 in | 0.756 in | Non-Insulated | Crimp | 0.25 in | Phosphor Bronze | 6 mm² | 4 mm² | 0.303 in | Standard |
