ISL6742 Series

Catalog

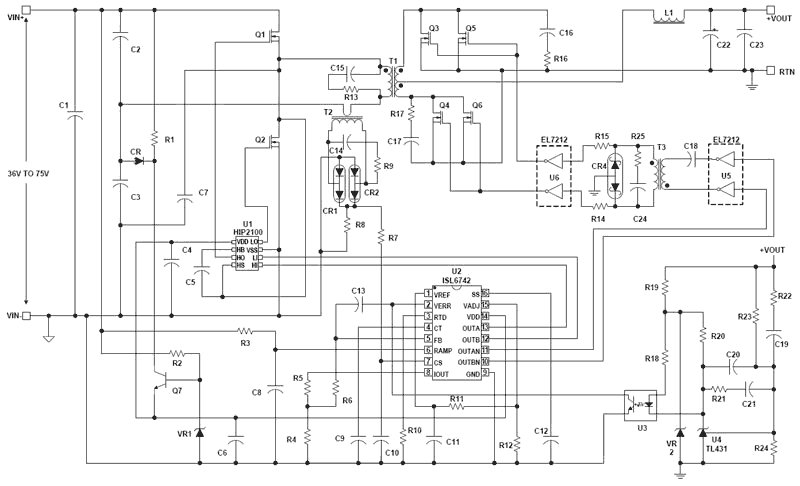

ADVANCED DOUBLE-ENDED PWM CONTROLLER WITH SYNCHRONOUS RECTIFIER CONTROL AND AVERAGE CURRENT LIMIT

Part	Frequency - Switching (Max)	Output Phases	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Function	Package Name	Output Configuration	Clock Sync	Package Width	Package Length	Synchronous Rectifier	Topology	Mounting Type	Number of Outputs	Output Type	Duty Cycle (Max)	Control Features	Operating Temperature (Max)	Operating Temperature (Min)	Supplied Contents	Utilized IC / Part	Contents	Type
Renesas Electronics Corporation ISL6742AAZA	2 MHz	1	9 V	16 V	Step-Down Step-Up	16-QSOP 16-SSOP	Isolation Capable Positive	No	3.9 mm	0.154 in	Yes	Full-Bridge Half-Bridge	Surface Mount	1	Transistor Driver	99 %	Frequency Control Ramp Soft Start	105 °C	-40 °C
Renesas Electronics Corporation ISL6742AAZA-T	2 MHz	1	9 V	16 V	Step-Down Step-Up	16-QSOP 16-SSOP	Isolation Capable Positive	No	3.9 mm	0.154 in	Yes	Full-Bridge Half-Bridge	Surface Mount	1	Transistor Driver	99 %	Frequency Control Ramp Soft Start	105 °C	-40 °C
Renesas Electronics Corporation ISL6742BEVAL3Z																				Board(s)	ISL6742B	Board	Power Management
