645986 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

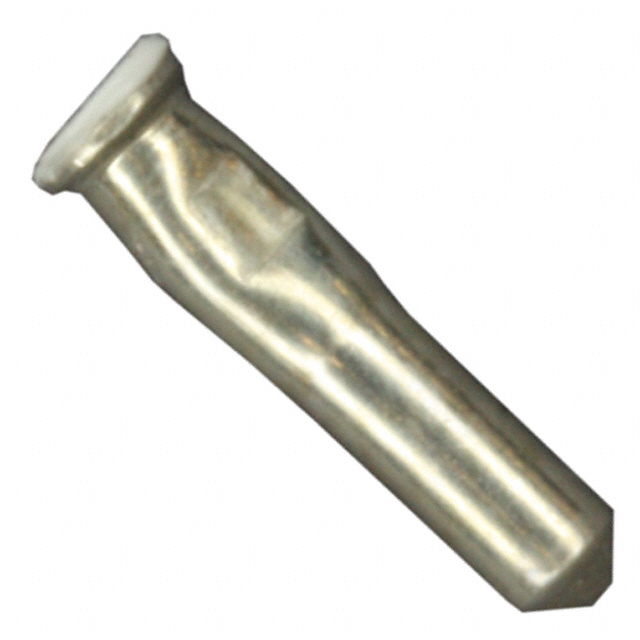

CONN PIN RCPT .028-.033 SOLDER
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Board Thickness (Min) | Board Thickness (Max) | Termination | Contact Material | Socket Depth (Min) | Socket Depth (Max) | Contact Finish | Accepts Pin Diameter (Max) | Accepts Pin Diameter (Min) | Tail Type | Mounting Hole Diameter | Flange Diameter | Contact Finish Thickness | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 °C | -65 °C | 0.031 in | 0.125 in | Solder | Beryllium Copper | 0.148 in | 0.26 in | Tin | 0.033 in | 0.028 in | No Tail | 0.062 in | 0.08 in | 150 µin | 0.29 in |
