Power Thyristor Disc-Triac ISO247
Description
AI
The High Efficiency TRIAC series offers various packages with improved forward voltage characteristics and breakdown voltages up to 1200V.
Beta
⌘K
Power Thyristor Disc-Triac ISO247
Power Thyristor Disc-Triac ISO247
| Part | Package Name | SCR Type | Current - Gate Trigger (Igt) (Max) | Voltage - Off State | Package / Case | Current - On State (It (RMS)) (Max) | Mounting Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge Type | Current - Non Rep. Surge (Itsm) | Voltage - On State (Vtm) (Max) | Current - On State (Max) | Current - Off State (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Hold (Ih) (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Triac Type | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

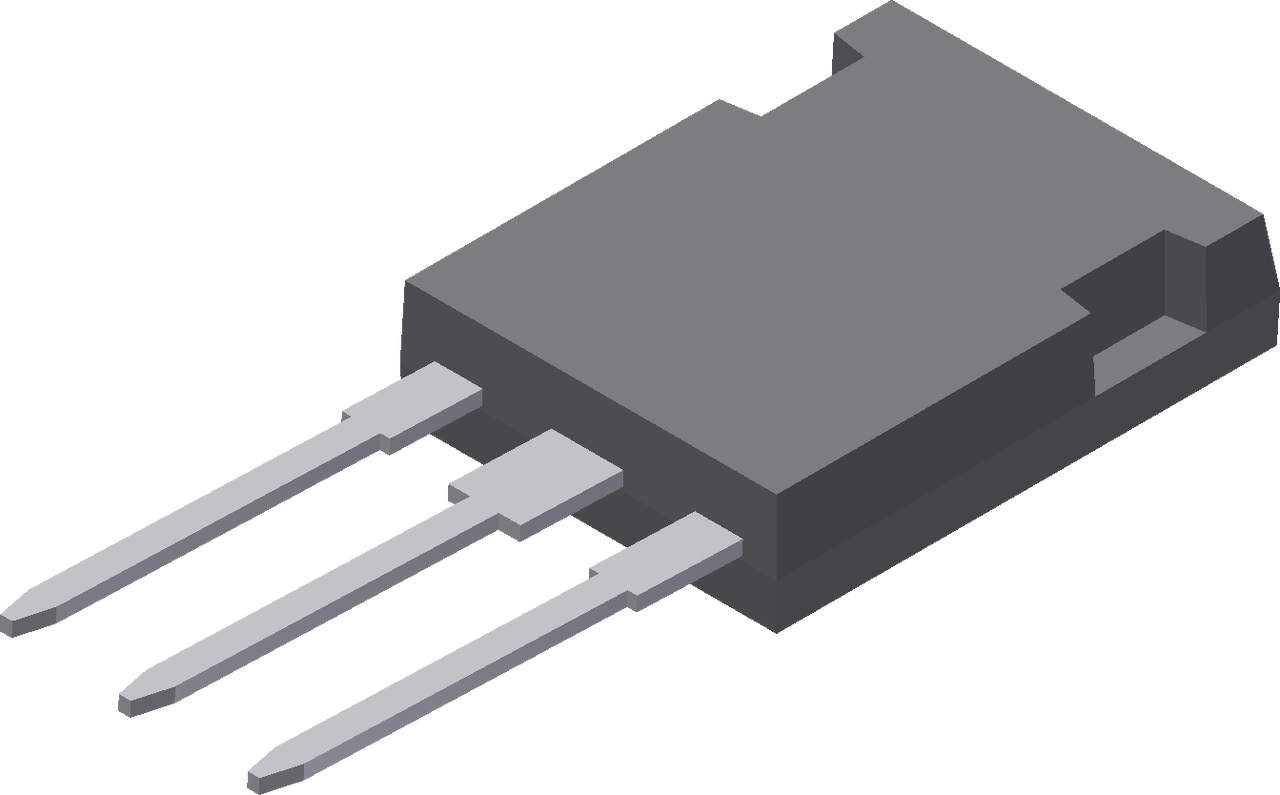

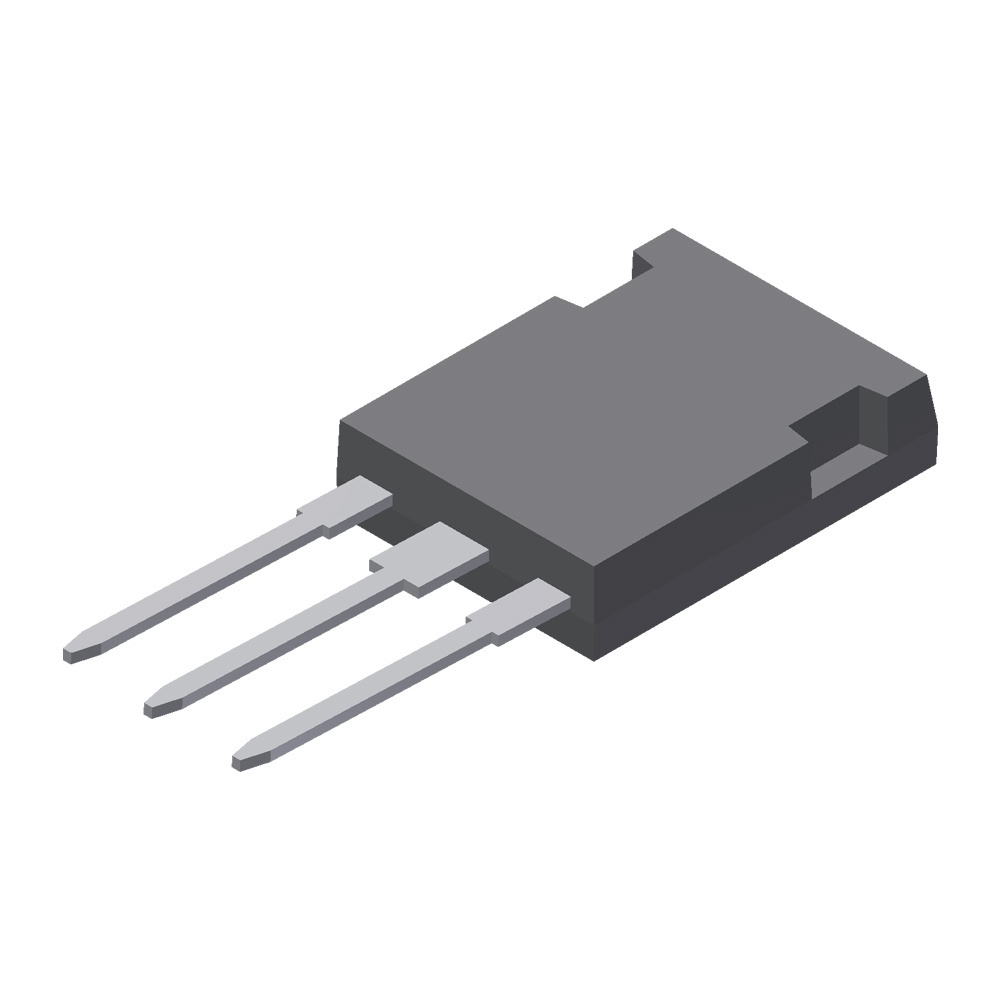

 LITTELFUSE | PLUS247™-3 | Standard Recovery | 38 mA | 1200 kV | TO-247-3 Variant | 126 A | Through Hole | 50Hz 60Hz | Itsm | 900 A 970 A | 1.77 V | 80 A | 50 µA | 1.5 V | 100 mA | -40 °C | 150 °C | ||
 LITTELFUSE | ISO247 | 70 mA | 1200 kV | TO-247-3 | 88 A | Through Hole | 50Hz 60Hz | Itsm | 480 A 520 A | 1.7 V | 70 mA | -55 °C | 150 °C | Standard | Single |
