2311586 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

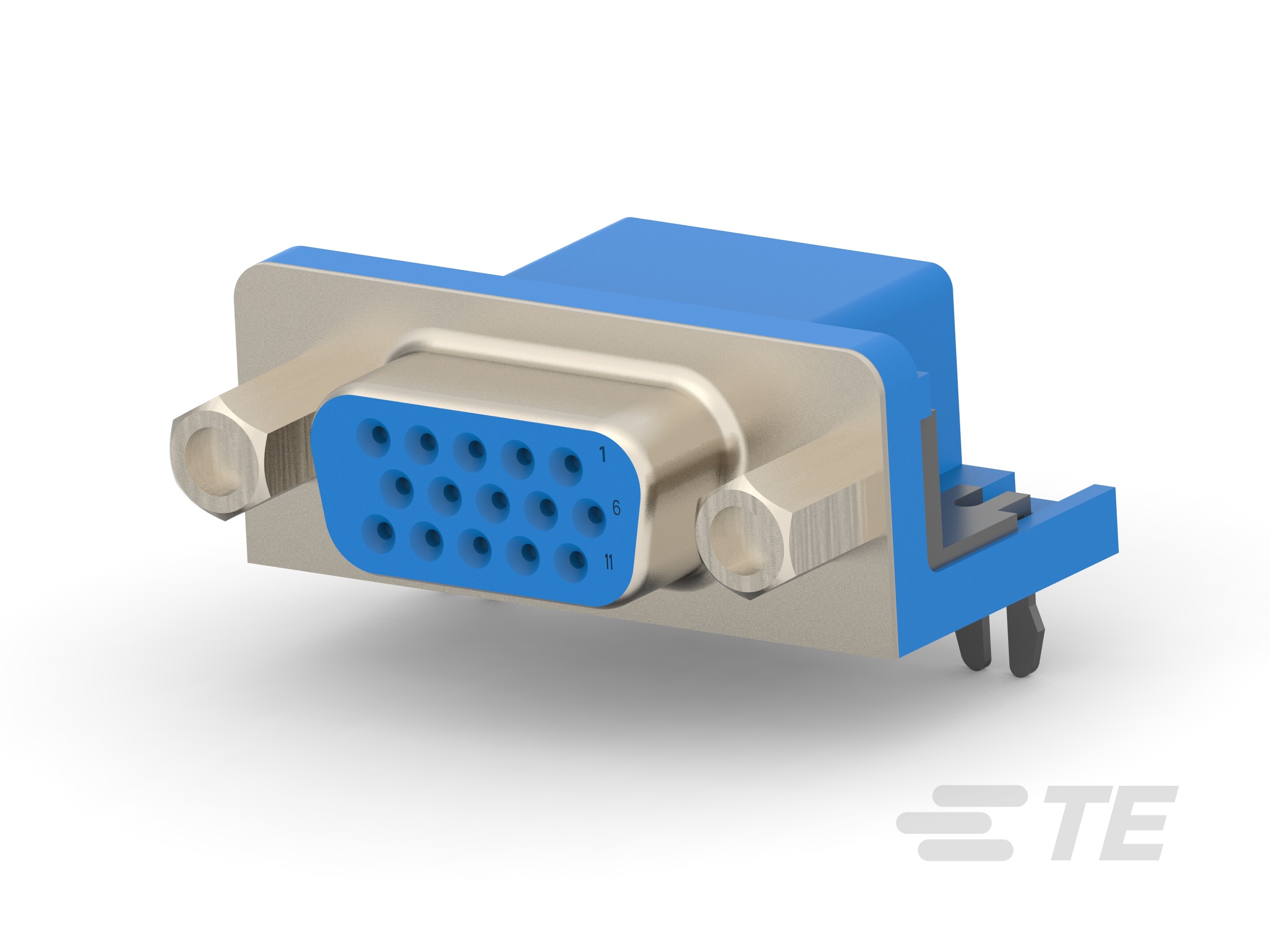

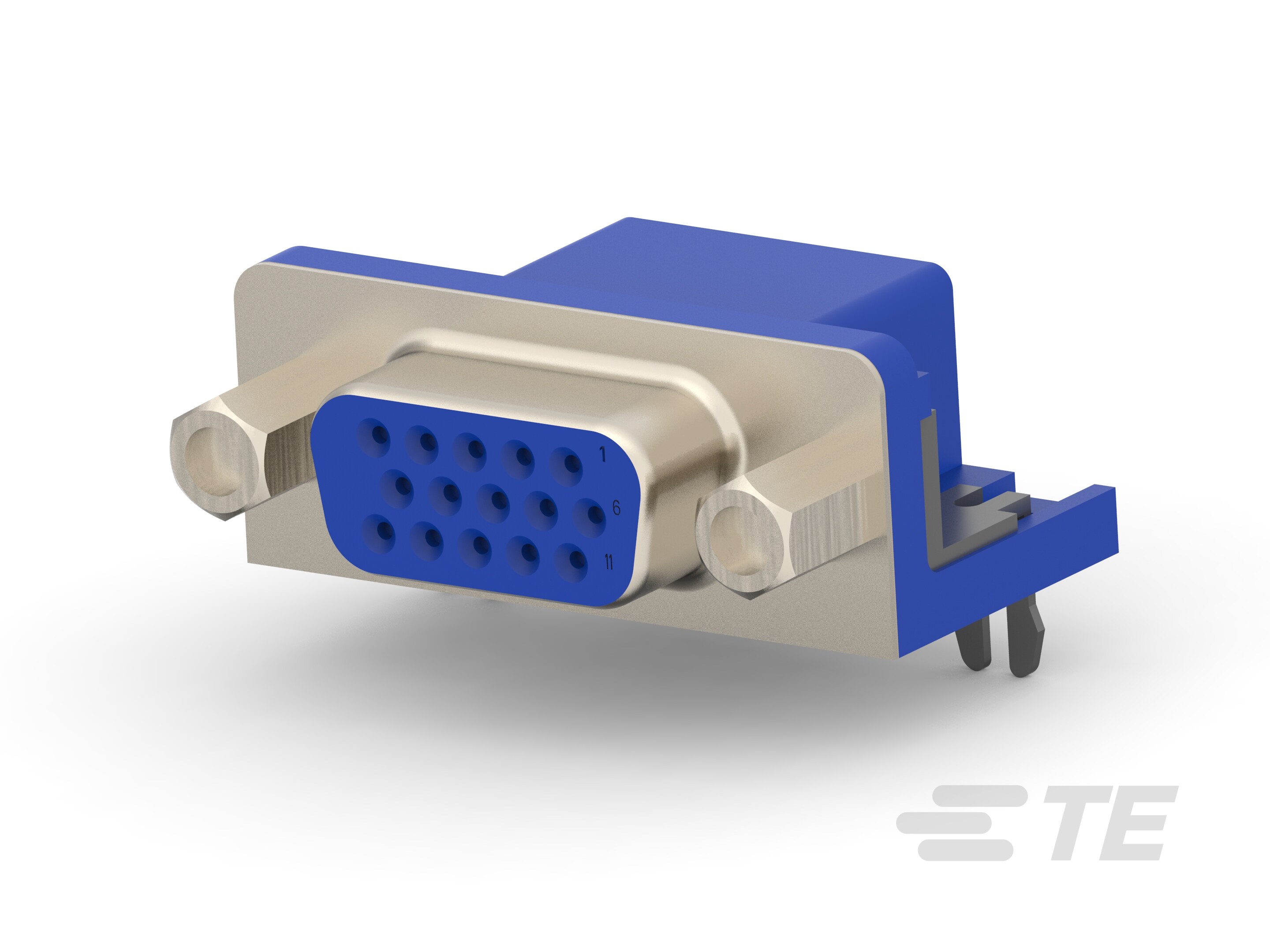

CONN D-SUB SKT 15 POS SOLDER RA THRU-HOLE 15 TERMINAL 1 PORT BOX/TRAY
| Part | Connector Type | Contact Type | Features | Number of Rows | Shell Size | Connector Layout | Current Rating | Contact Finish | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Number of Positions | Shell Material | Finish | Backset Spacing | Connector Style | Material Flammability Rating | Mounting Type | Flange Feature | Termination | Contact Material | Color | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Current Rating (Per Contact) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Female Sockets Receptacle | Signal | Board Lock | 3 | 1 | DE E High Density | 3 A | Gold | 0 | Flash | Flash | 15 | Steel | Nickel Plated | 0.35 in | D-Sub High Density | UL94 V-0 | Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Solder | Brass | Blue | -55 °C | 105 °C | Glass Filled Nylon 9T Polyamide (PA9T) | ||
 TE Connectivity AMP Connectors | Female Sockets Receptacle | Signal | Board Lock | 3 | 1 | DE E High Density | 3 A | Gold | 0 | Flash | Flash | 15 | Steel | Nickel Plated | 0.35 in | D-Sub High Density | UL94 V-0 | Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Solder | Brass | Blue | -55 °C | 105 °C | Glass Filled Nylon 9T Polyamide (PA9T) | ||
 TE Connectivity AMP Connectors | Female Sockets Receptacle | Signal | Board Lock | 3 | 1 | DE E High Density | Gold | 30 µin | 15 | Steel | Nickel Plated | 0.35 in | D-Sub High Density | UL94 V-0 | Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Solder | Phosphor Bronze | Blue | -55 °C | 85 °C | Glass Filled Nylon 9T Polyamide (PA9T) | 3 A | 250 V |
