076860 Series
Manufacturer: Molex
Beta
⌘K
CONN RCPT IMPACT 54POS EDGE MNT
| Part | Contact Finish | Termination | Connector Style | Number of Rows | Number of Positions | Color | Number of Positions Loaded | Number of Columns | Connector Type | Differential Pairs (Typical) | Contact Finish Thickness | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

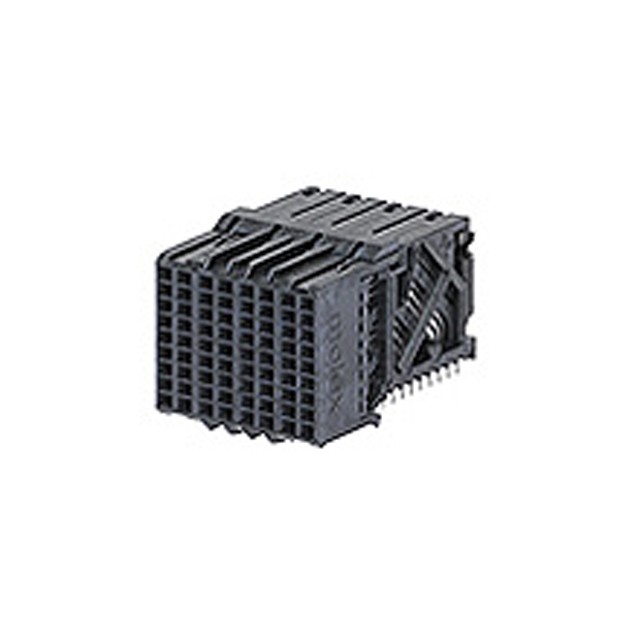

 Molex | Gold | Press-Fit | Impact | 9 | 54 | Black | All | 6 | Female Sockets Receptacle | 18 | 30 µin | Board Edge Right Angle Through Hole | -55 °C | 85 °C | 30 V | UL94 V-0 |
 Molex | Gold | Press-Fit | Impact | 9 | 72 | Black | All | 8 | Female Sockets Receptacle | 24 | 30 µin | Board Edge Right Angle Through Hole | -55 °C | 85 °C | 30 V | UL94 V-0 |

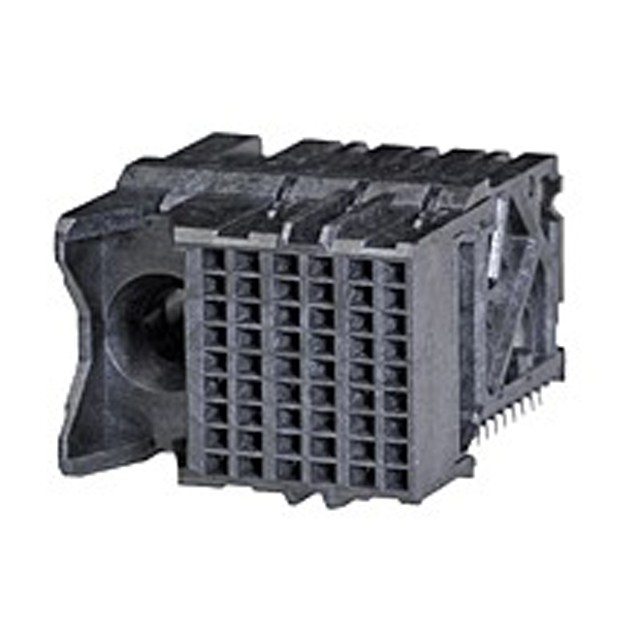

 Molex | Gold | Press-Fit | Guide Right Impact | 9 | 54 | Black | All | 6 | Female Sockets Receptacle | 18 | 30 µin | Board Edge Right Angle Through Hole | -55 °C | 85 °C | 30 V | UL94 V-0 |
 Molex | Gold | Press-Fit | Guide Left Impact | 9 | 54 | Black | All | 6 | Female Sockets Receptacle | 18 | 30 µin | Board Edge Right Angle Through Hole | -55 °C | 85 °C | 30 V | UL94 V-0 |
