2378762 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PCIE5,SMT,1.9TABX3,98P,30",WO ML,HT

Part	Number of Rows	Card Thickness	Read Out	Operating Temperature (Min)	Operating Temperature (Max)	Color	Termination	Mounting Type	Number of Bay	Number of Positions	Contact Finish Thickness	Features	Card Type	Contact Type	Contact Material	Gender	Contact Finish	Pitch	Termination Rows	Material - Insulation	Contact Finish Thickness (string set options)	Contact Finish Thickness
TE Connectivity AMP Connectors 2-2378762-3	2	0.062 in	Dual	-40 °C	85 °C	Black	Solder	Surface Mount	38	11 98	30 µin	Board Guide Locking Ramp Solder Retention	PCI Express™	Cantilever	Copper Alloy	Female	Gold	0.039 in	2 rows	Plastic

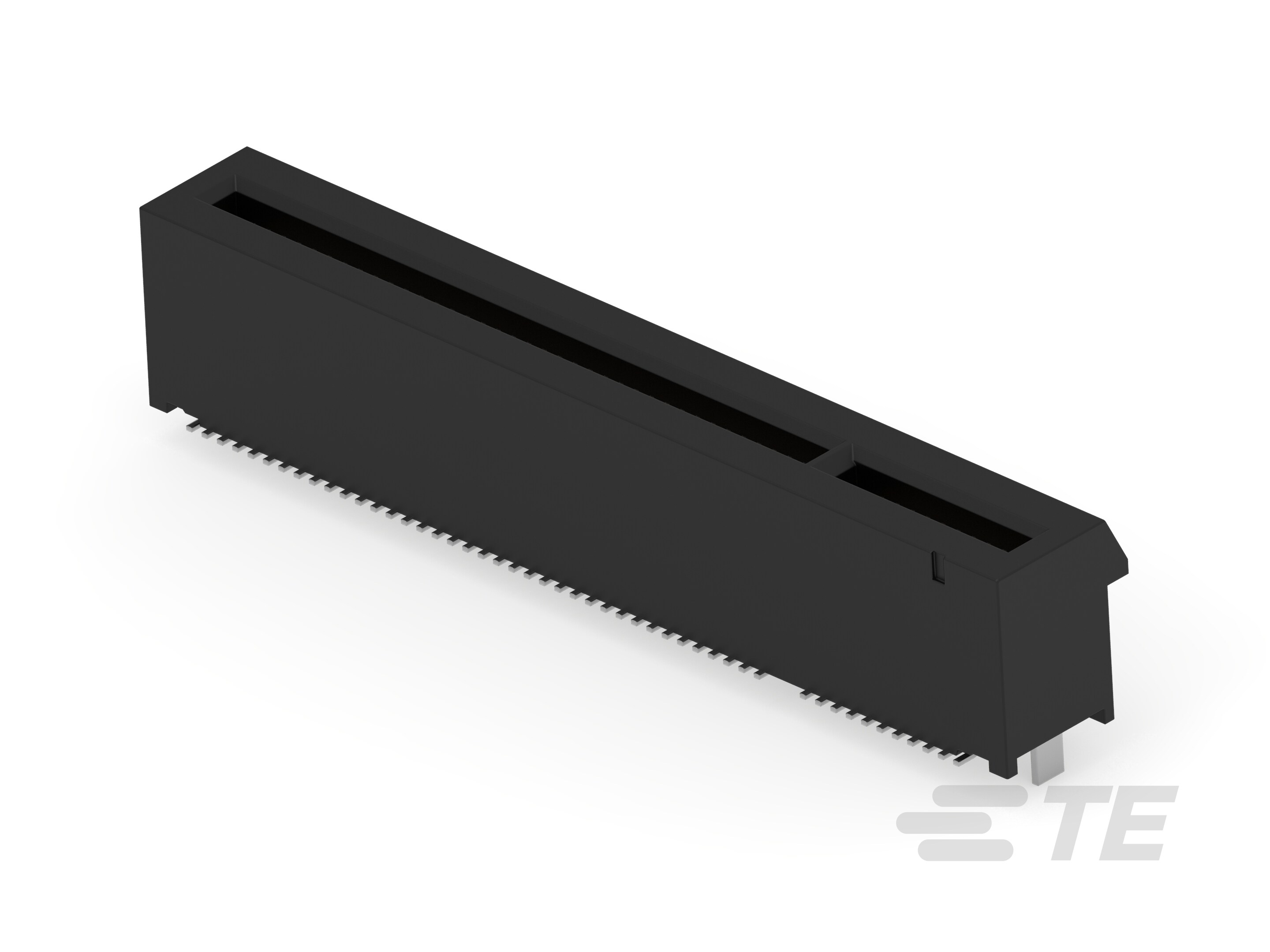

TE Connectivity AMP Connectors 4-2378762-3	2		Dual	-40 °C	85 °C	Black	Solder	Surface Mount	38	11 98	15 µin	Board Guide Solder Retention	PCI Express™	Cantilever	Copper Alloy	Female	Gold	0.039 in	2 rows	Plastic
TE Connectivity AMP Connectors 5-2378762-3	2	0.062 in	Dual	-40 °C	85 °C	Black	Solder	Surface Mount	38	11 98	30 µin	Board Guide Solder Retention	PCI Express™	Cantilever	Copper Alloy	Female	Gold	0.039 in	2 rows	Plastic
TE Connectivity AMP Connectors 2-2378762-4	2	0.062 in	Dual	-40 °C	85 °C	Black	Solder	Surface Mount	71	11 164	30 µin	Board Guide Locking Ramp Solder Retention	PCI Express™	Cantilever	Copper Alloy	Female	Gold	0.039 in	2 rows	Plastic
TE Connectivity AMP Connectors 4-2378762-4	2		Dual	-40 °C	85 °C	Black	Solder	Surface Mount	71	11 164	15 µin	Board Guide Solder Retention	PCI Express™	Cantilever	Copper Alloy	Female	Gold	0.039 in	2 rows	Plastic
TE Connectivity AMP Connectors 3-2378762-8	2	0.062 in	Dual	-40 °C	85 °C	Black	Solder	Surface Mount	71	11 164	0	Board Guide Locking Ramp Solder Retention	PCI Express™	Cantilever	Copper Alloy	Female	Gold	0.039 in	2 rows	Plastic	Flash	Flash
