FUSE 300V FA PT 2AG Pb-FREE 1A
Description
AI

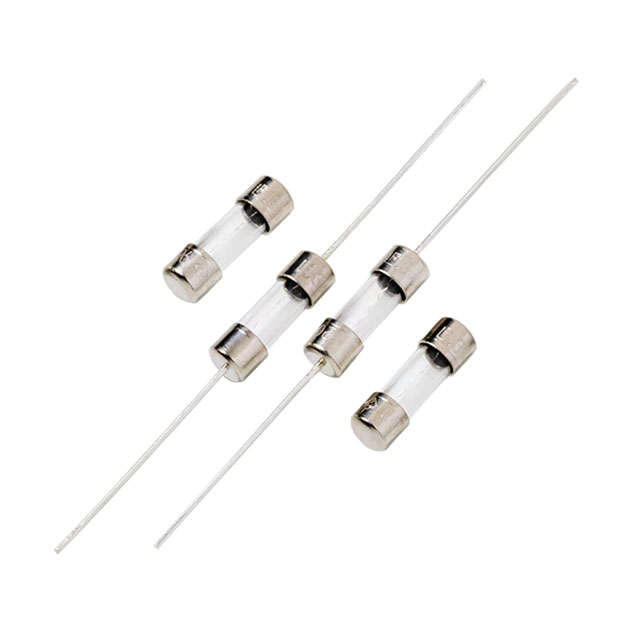

The 2AG Fast-Acting Axial Leaded Fuses provide the same performance characteristics as their 3AG counterpart, while occupying one-third the space.
Beta
⌘K
FUSE 300V FA PT 2AG Pb-FREE 1A
FUSE 300V FA PT 2AG Pb-FREE 1A
| Part | DC Cold Resistance | Package Width | Package / Case | Package Features | Package Name | Package Length | Fuse Type | Breaking Capacity | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating - AC | Response Time | Current Rating | Mounting Type | Size / Dimension Diameter | Size / Dimension Length | Melting I²t | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.1027 Ohms | 15 mm | 2AG 5mm x 15mm (Axial) | Axial | 2AG | 5 mm | Cartridge Glass | 100 A | 125 °C | -55 °C | 300 V | Fast Blow | 1 A | Through Hole | 0.185 in | 0.57 in | 2.22 | CE CSA UL |
LITTELFUSE | 0.1027 Ohms | 15 mm | 2AG 5mm x 15mm (Axial) | Axial | 2AG | 5 mm | Cartridge Glass | 100 A | 125 °C | -55 °C | 300 V | Fast Blow | 1 A | Through Hole | 0.185 in | 0.57 in | 2.22 | CE CSA UL |
