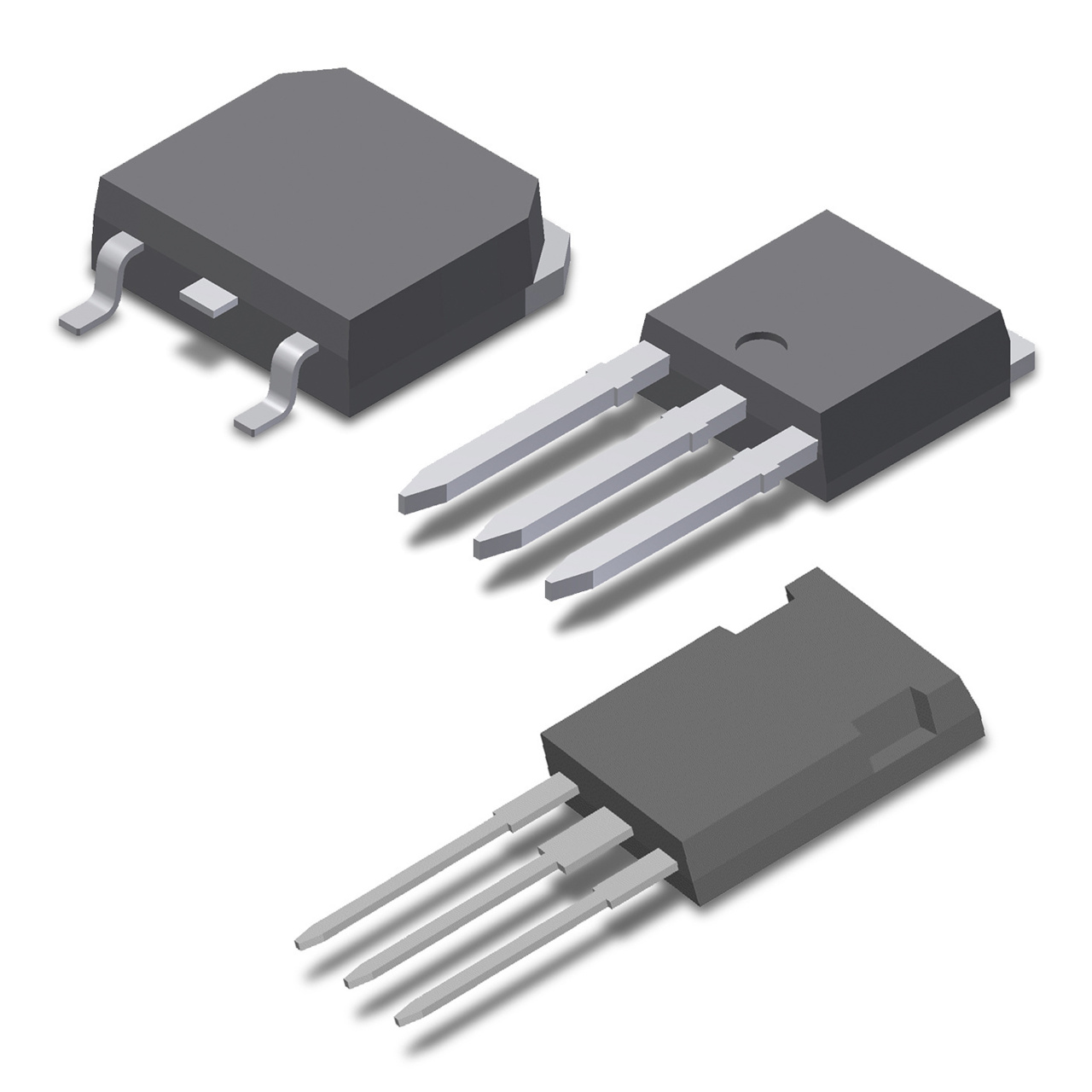

IXTH67N10 Series
Manufacturer: LITTELFUSE
Beta
⌘K
DISCMOSFET N-CH STD-HIVOLTAGE TO-247AD
| Part | Technology | Package Name | Rds On (Max) | Vgs (Max) | FET Type | Mounting Type | Input Capacitance (Ciss) (Max) | Vgs(th) (Max) | Current - Continuous Drain (Id) (Tc) | Drain to Source Voltage (Vdss) | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Max) | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | MOSFET (Metal Oxide) | TO-247 (IXTH) | 25 mOhm | 20 V | N-Channel | Through Hole | 4500 pF | 4 V | 67 A | 100 V | TO-247-3 | -55 °C | 150 °C | 10 V | 260 nC | 300 W |
