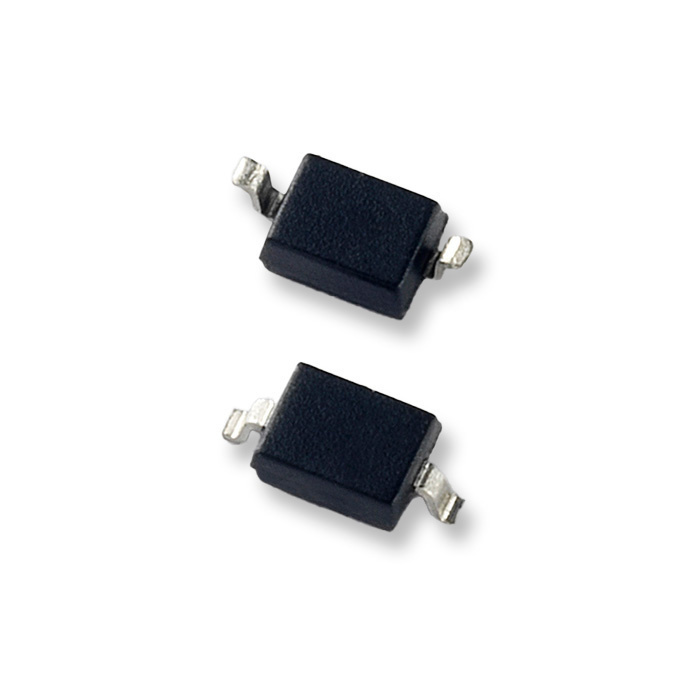

AQ27COM-01FTG Series

27V 4A 30kV 12pF SOD323 Diode Array

Catalog

27V 4A 30kV 12pF SOD323 Diode Array

Part	Voltage - Reverse Standoff (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Type	Current - Peak Pulse	Capacitance	Package Name	Qualification	Mounting Type	Power Line Protection	Voltage - Breakdown (Min)	Bidirectional Channels	Grade	Voltage - Clamping (Max) (Typ)	Package / Case	Applications	Power - Peak Pulse
LITTELFUSE AQ27COM-01FTG	27 V	-40 °C	150 °C	Zener	4 A	12 pF	SOD-323	AEC-Q101	Surface Mount	No	28 V	1	Automotive	50 V	SC-76 SOD-323	CAN Telecom	200 W

Catalog

27V 4A 30kV 12pF SOD323 Diode Array

Description

The AQ27COM-01 series bidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment.The AQ27COM-01 series TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 4 A 8/20 μs surge event as defined in IEC 61000-4-5, 2nd edition.
