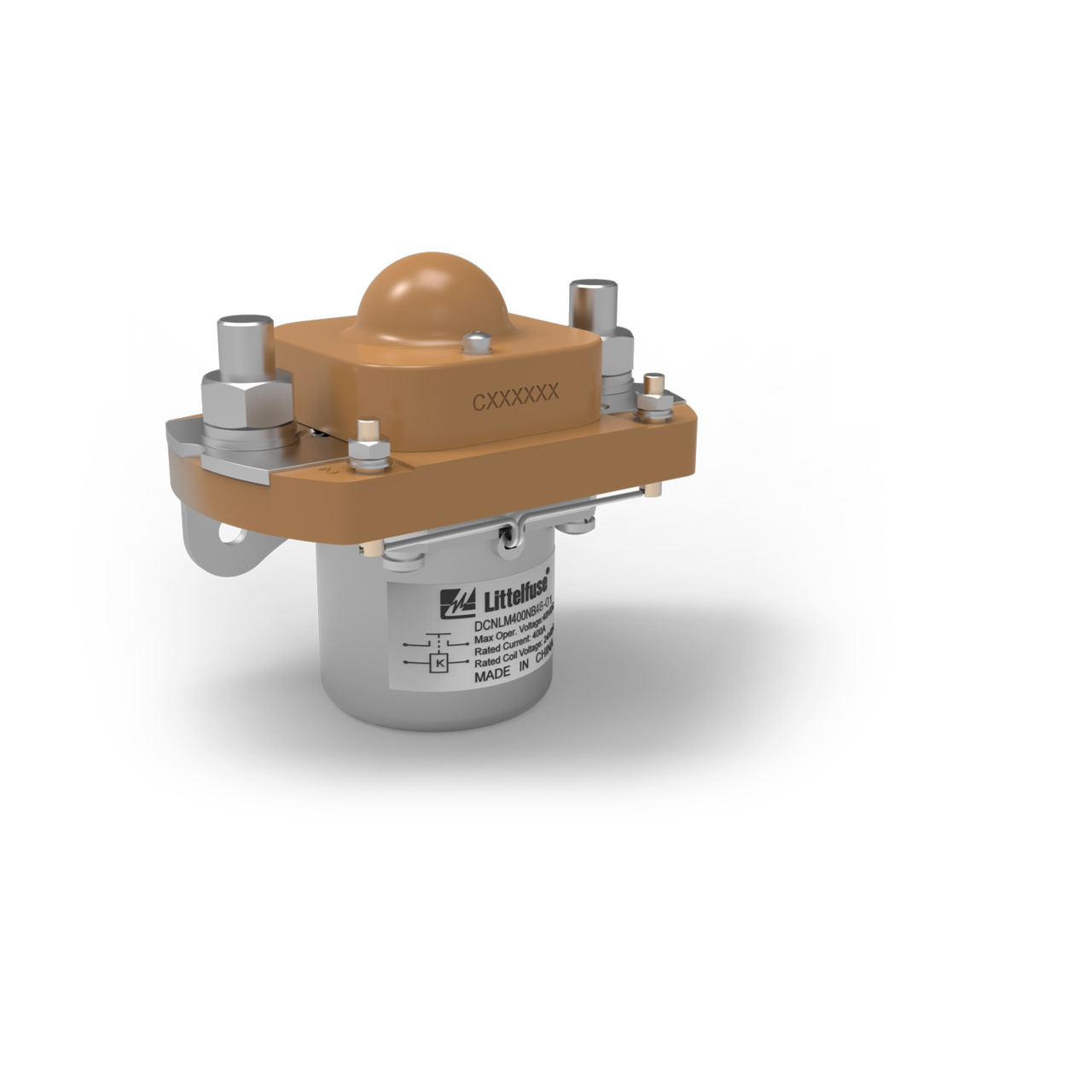

DCNLM400NB48-01 Series

DCNLM 400A 48V NP NO 48V 2Coil Contactor

Catalog

DCNLM 400A 48V NP NO 48V 2Coil Contactor

Part	Must Release Voltage	Must Operate Voltage	Termination Style	Switching Voltage DC (Max)	Form A Count	Contact Form	Mounting Type	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)	Coil Voltage
LITTELFUSE DCNLM400NB48-01	4 VDC	33.6 VAC	Stud	60 VDC	1	SPST-NO	Chassis Mount	400 A	-40 °C	70 °C	48 V

Catalog

DCNLM 400A 48V NP NO 48V 2Coil Contactor

Description

The DCNLM Series 48V High-Current DC Contactor Relay features 400A contact switching capability with a 48V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS).This configuration of the DCNLM normally open, high-current DC contactor (DCNLM400NB48-01) features 48V non-polarized main contacts and a dual-coil design that reduces drain on the electrical system.
