3231 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RING CIRC 6AWG #5/16 CRIMP

Part	Wire Gauge	Length - Overall	Terminal Type	Stud/Tab Size	Stud/Tab Size (Type)	Stud/Tab Size	Width - Outer Edges	Mounting Type	Thickness	Features	Contact Finish	Contact Material	Insulation	Termination	Insulation Diameter	Material - Insulation	Color	Insulation Diameter (Max)	Insulation Diameter (Min)	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Length - Termination	Tongue Inside Opening	Length - Ring Center to Termination
TE Connectivity AMP Connectors 323171	6 AWG	1.246 in	Circular	0.3125 in	Stud	16 Stud 5 Stud	0.625 in	Free Hanging (In-Line)	0.057 in	Brazed Seam Serrated Termination	Nickel	Copper	Non-Insulated	Crimp
TE Connectivity AMP Connectors 323197	8 AWG	1.328 in	Circular	10 Stud			0.406 in	Free Hanging (In-Line)	0.04 in	Serrated Termination	Tin	Copper	Insulated	Crimp	0.298 in	Vinyl	Red
TE Connectivity AMP Connectors 323170	6 AWG	1.168 in	Circular	0.25 Stud			0.468 in	Free Hanging (In-Line)	0.057 in	Brazed Seam Serrated Termination	Nickel	Copper	Non-Insulated	Crimp
TE Connectivity AMP Connectors 323174	4 AWG	1.324 in	Circular	0.3125 in	Stud	16 Stud 5 Stud	0.625 in	Free Hanging (In-Line)	0.07 in	Brazed Seam Serrated Termination	Nickel	Copper	Non-Insulated	Crimp

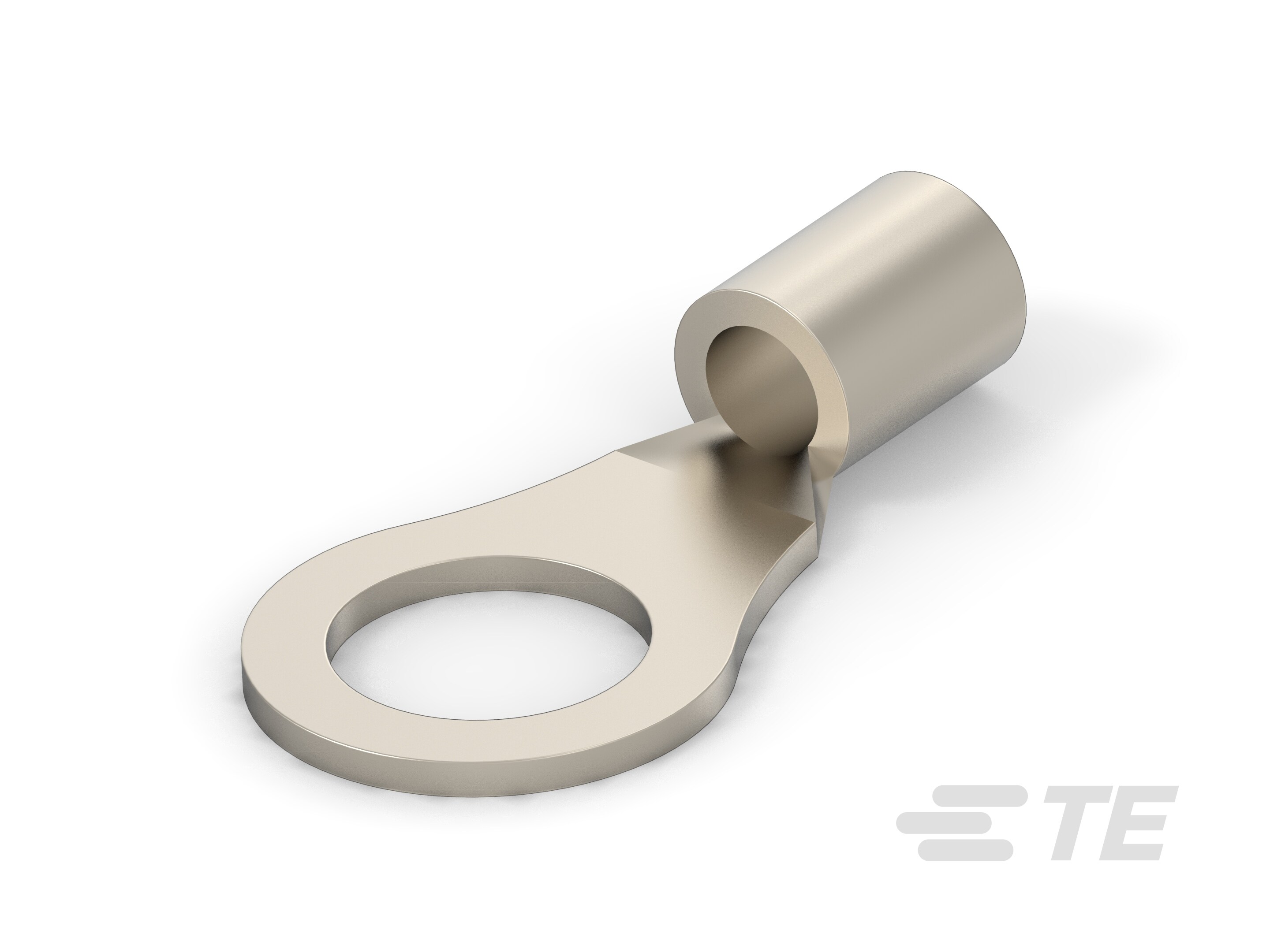

TE Connectivity AMP Connectors 323168	8 AWG	1.168 in	Circular	0.375 in		3 Stud 8 Stud	0.594 in	Free Hanging (In-Line)	0.048 in	Brazed Seam Serrated Termination	Nickel	Copper	Non-Insulated	Crimp

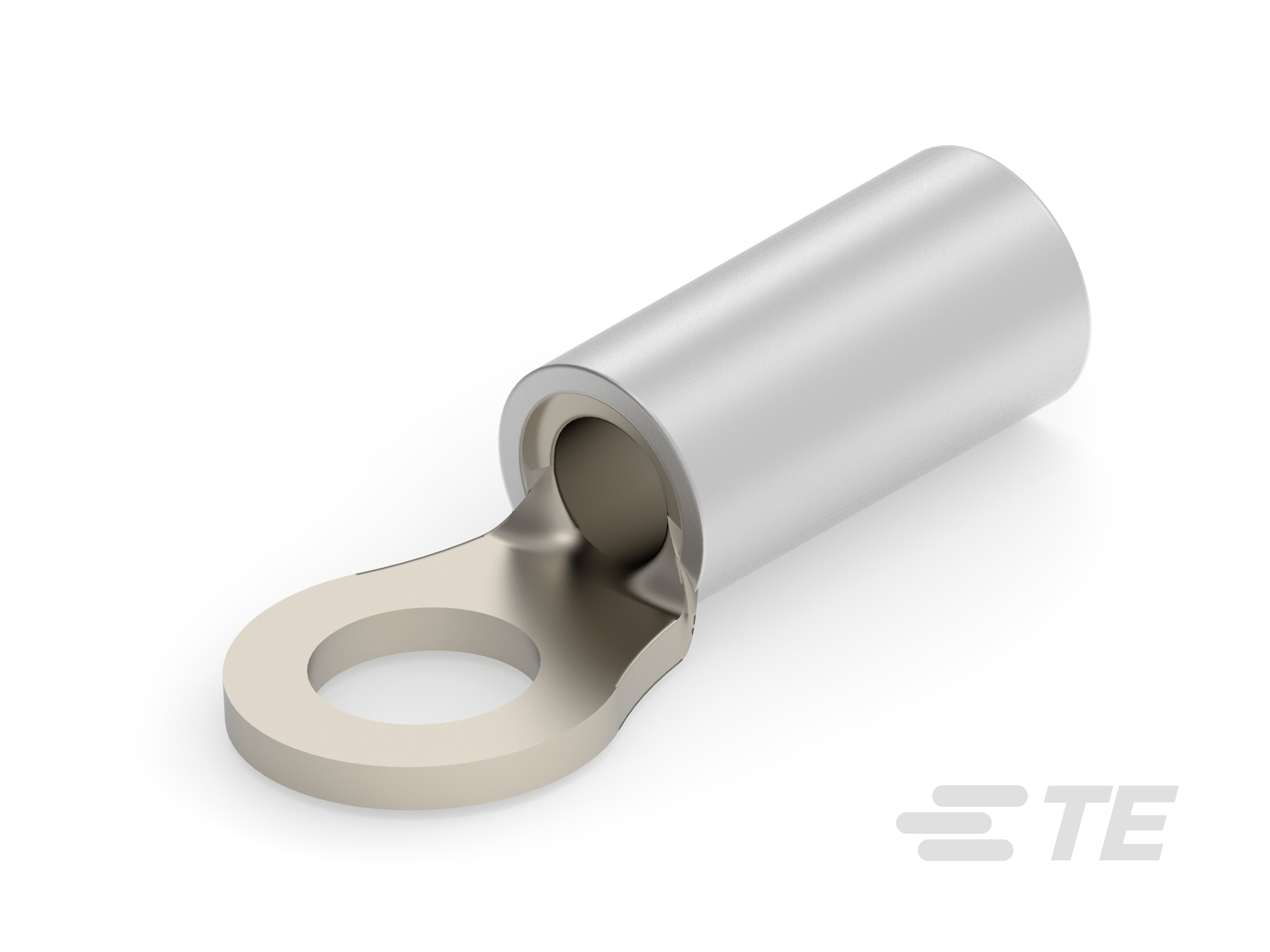

TE Connectivity AMP Connectors 323158		0.68 in	Circular	6 Stud			0.25 in	Free Hanging (In-Line)	0.031 in	Serrated Termination	Nickel	Copper	Non-Insulated	Crimp				0.13 in	0.08 in	16 AWG	14 AWG

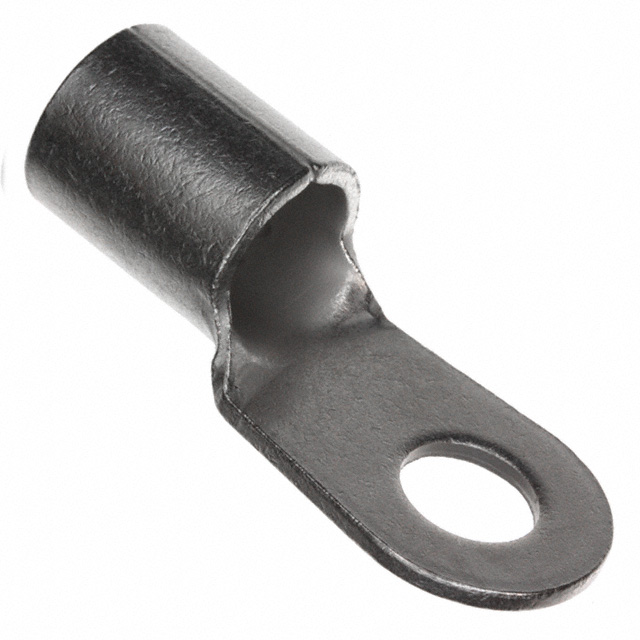

TE Connectivity AMP Connectors 323180	1/0 AWG	1.925 in	Circular	0.375 in		3 Stud 8 Stud	0.807 in	Free Hanging (In-Line)	0.07 in	Brazed Seam Serrated Termination	Nickel	Copper	Non-Insulated	Crimp

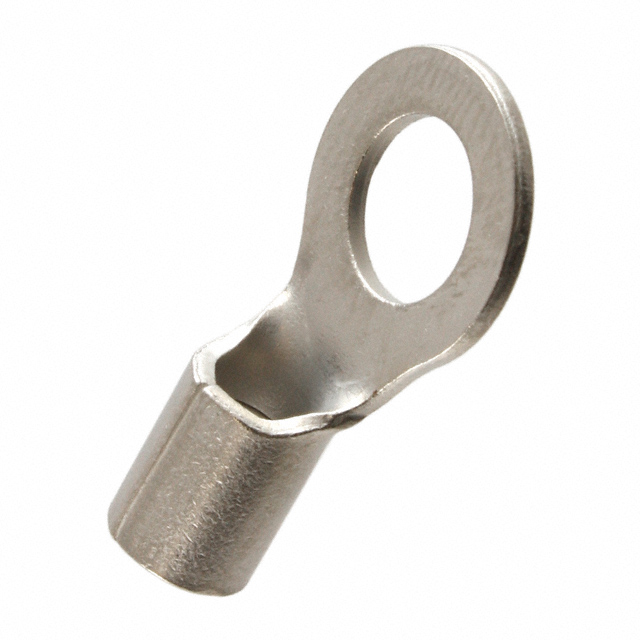

TE Connectivity AMP Connectors 323167
TE Connectivity AMP Connectors 323199		0.749 in	Circular	6 Stud			0.281 in	Free Hanging (In-Line)	0.031 in	Serrated Termination	Nickel	Copper	Non-Insulated	Crimp				0.14 in	0.105 in	22 AWG	16 AWG
TE Connectivity AMP Connectors 323127		0.623 in	Standard	6 Stud			0.25 in	Free Hanging (In-Line)		Brazed Seam Serrated Termination	Tin	Copper	Non-Insulated	Crimp						22 AWG	16 AWG	0.181 in	0.145 in	0.312 in
