60770 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

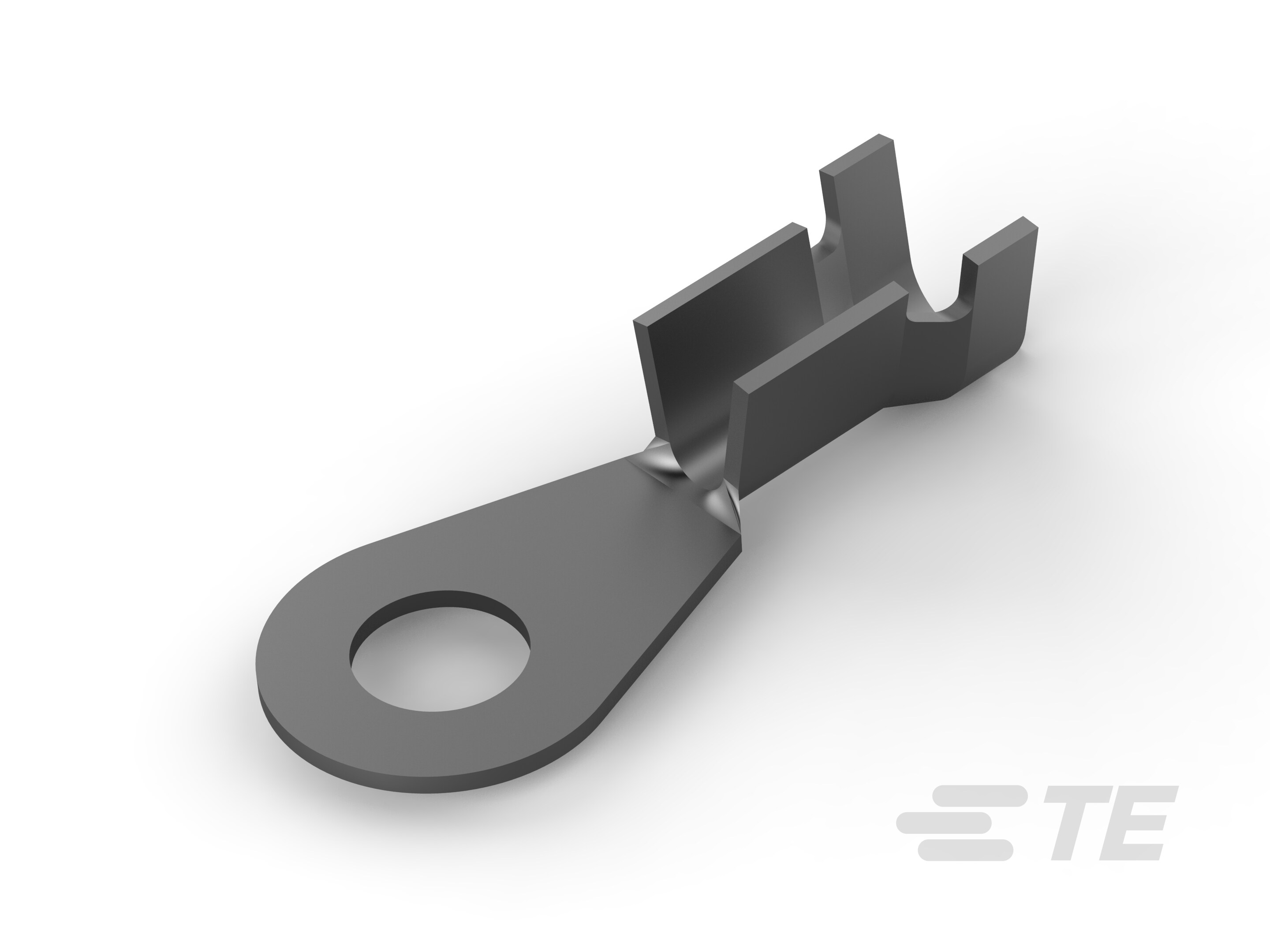

RING TONGUE TERMINAL, M3.5, #6, 14 AWG, 2 MM², AMPLIVAR SERIES
| Part | Length - Overall | Contact Finish | Features | Terminal Type | Thickness | Insulation | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Stud/Tab Size | Mounting Type | Width - Outer Edges | Contact Material | Termination | Insulation Diameter (Min) | Insulation Diameter (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.734 in | Tin | Serrated Termination | Circular | 0.018 in | Non-Insulated | 18 AWG | 14 AWG | 6 Stud | Free Hanging (In-Line) | 0.295 in | Brass | Crimp | 0.1 in | 0.14 in |
