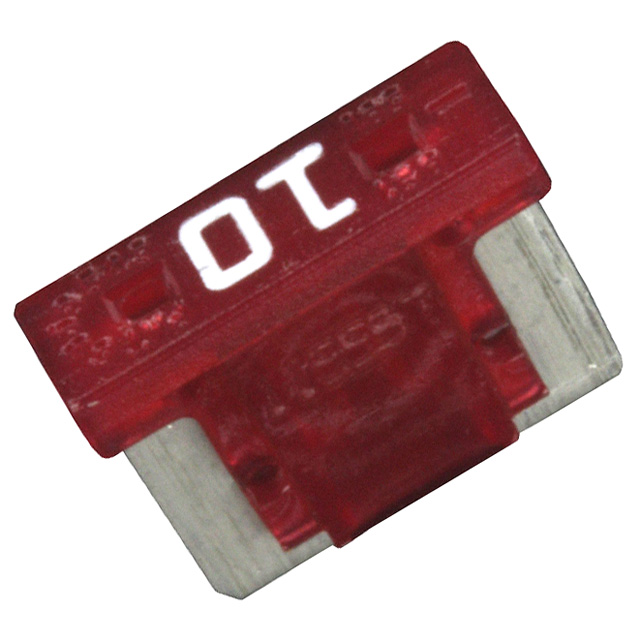

Fuse - LP Mini 58VDC 10.0mm Blade Ag 10A
Description
AI
This 10 A Low Profile MINI® 58V blade fuses performs as reliably as a taller MINI fuse.
Beta
⌘K
Fuse - LP Mini 58VDC 10.0mm Blade Ag 10A
Fuse - LP Mini 58VDC 10.0mm Blade Ag 10A
| Part | DC Cold Resistance | Fuse Type | Mounting Type | Current Rating | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Melting I²t | Package / Case | Color | Breaking Capacity | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating - DC | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.00759 Ohms | Automotive | Requires Holder | 10 A | 0.15 in | 0.429 in | 0.331 in | 102 | Blade Miniature (Low Profile) | Red | 1 kA | 125 °C | -40 °C | 58 VDC | Fast Blow |
