641922 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

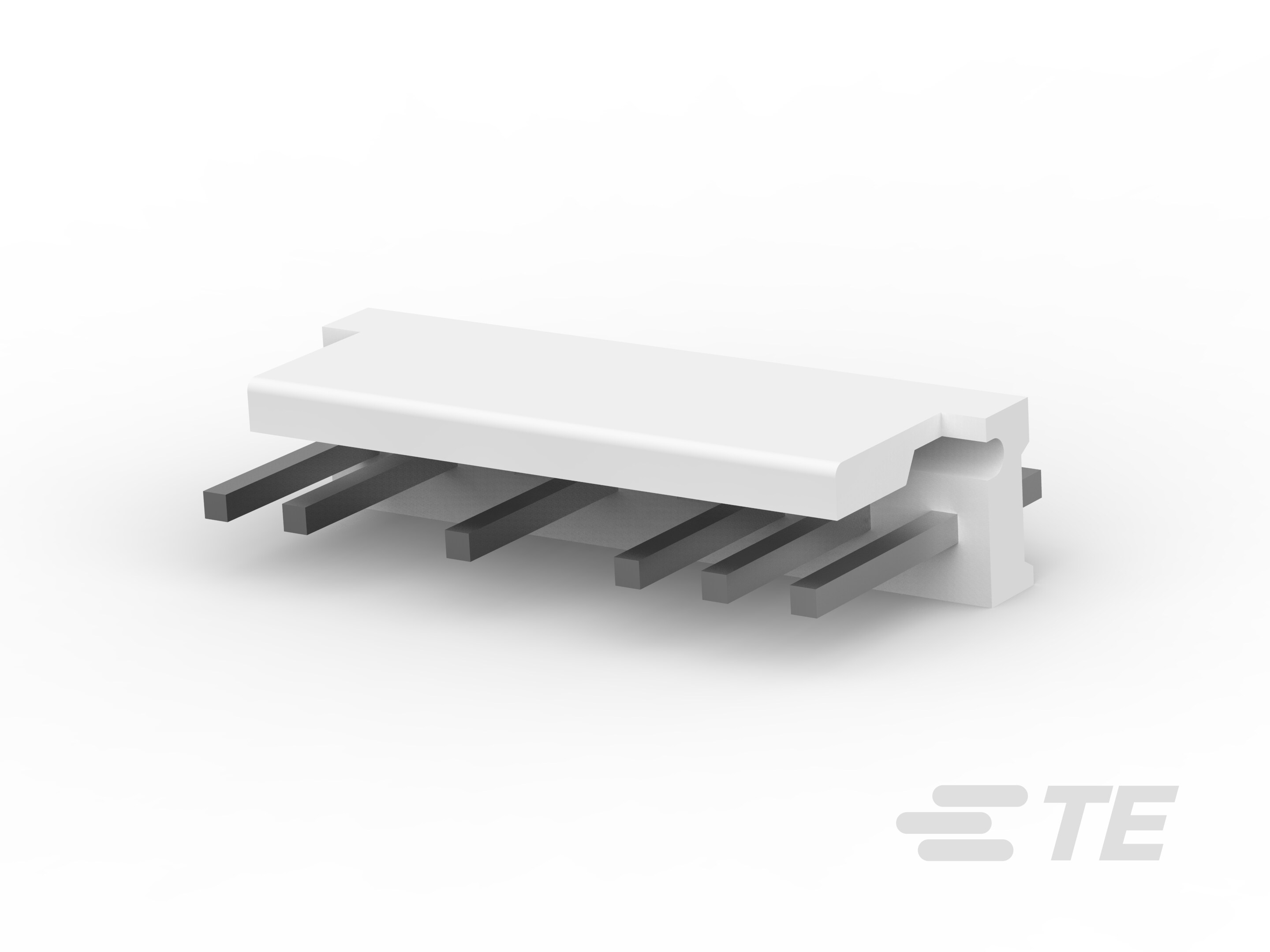

08P MTA156 HDR ASSY W/0#4,6 ROHS COMPLIANT: YES
| Part | Number of Positions | Number of Rows | Contact Material | Mounting Type | Pitch - Mating | Contact Length - Mating | Fastening Type | Shrouding | Material Flammability Rating | Number of Positions Loaded | Insulation Color | Voltage Rating | Contact Type | Current Rating | Current Rating | Insulation Height | Connector Type | Termination | Style | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Mating | Contact Shape | Contact Finish - Post | Overall Contact Length | Insulation Material | Contact Length - Post | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 8 | 1 | Copper Alloy | Through Hole | 0.156 in | 0.4 in | Friction Lock | Shrouded - 1 Wall | UL94 V-0 | 6 | Natural | 600 V | Male Pin | 0 A | Varies by Wire Gauge | 0.425 in | Header | Solder | Board Cable/Wire | -55 °C | 105 °C | Tin | Square | Tin | 0.65 in | Glass Filled Thermoplastic | 0.125 in | General Purpose Industrial |

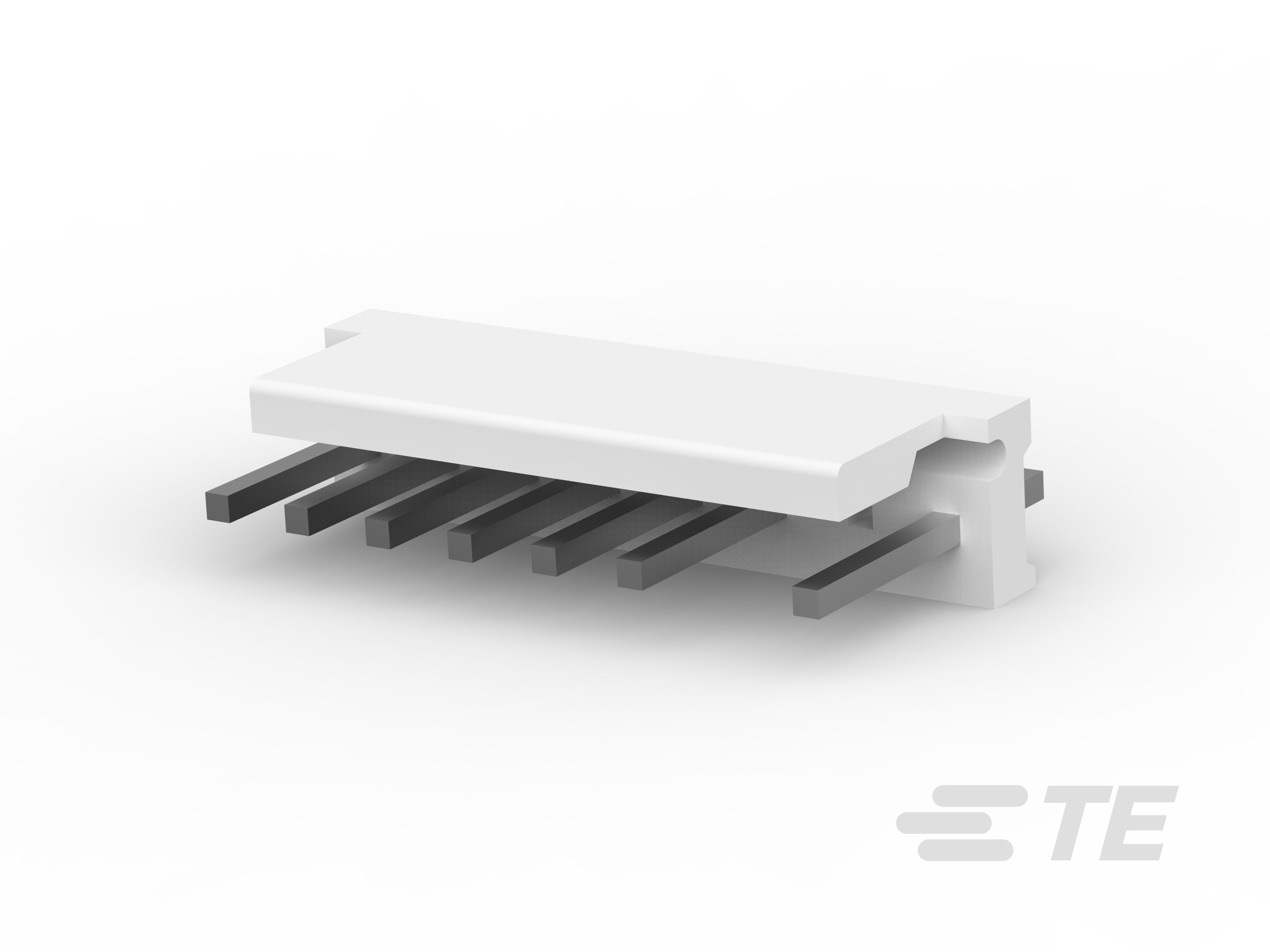

 TE Connectivity AMP Connectors | 8 | 1 | Copper Alloy | Through Hole | 0.156 in | 0.4 in | Friction Lock | Shrouded - 1 Wall | UL94 V-0 | 7 | Natural | 600 V | Male Pin | 0 A | Varies by Wire Gauge | 0.425 in | Header | Solder | Board Cable/Wire | -55 °C | 105 °C | Tin | Square | Tin | 0.65 in | Glass Filled Thermoplastic | 0.125 in | General Purpose Industrial |
