487544 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN FFC RCPT HSG 36POS 1.27MM

Part	Housing Color	Note	Current Rating	Housing Material	Connector Type	Material Flammability Rating	Flat Flex Type	Locking Feature	Number of Positions	Voltage Rating	FFC, FCB Thickness (Min)	FFC, FCB Thickness (Max)	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows
TE Connectivity AMP Connectors 3-487544-3	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	36	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1

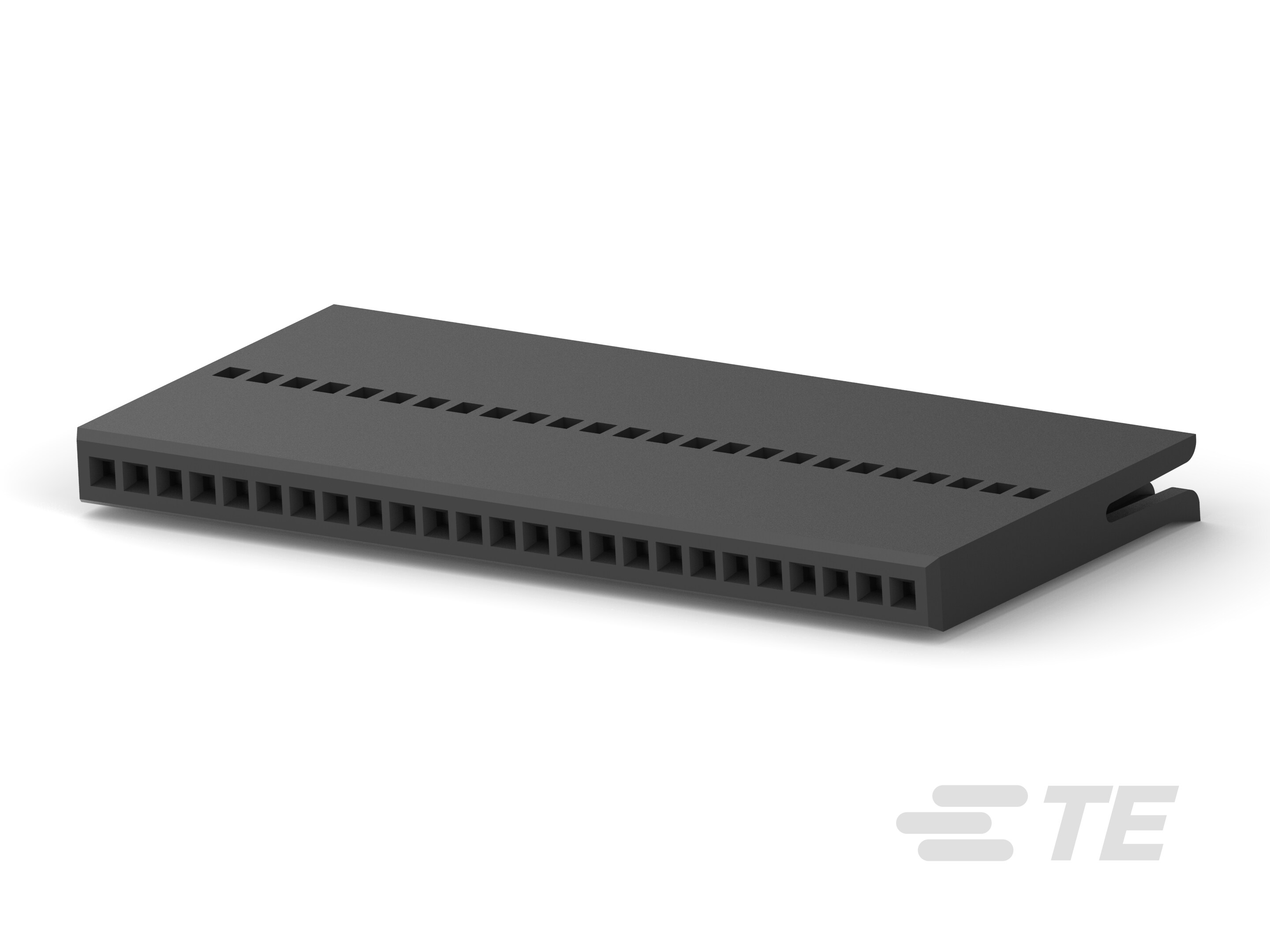

TE Connectivity AMP Connectors 2-487544-2	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	25	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1
TE Connectivity AMP Connectors 1-487544-2	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	15	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1

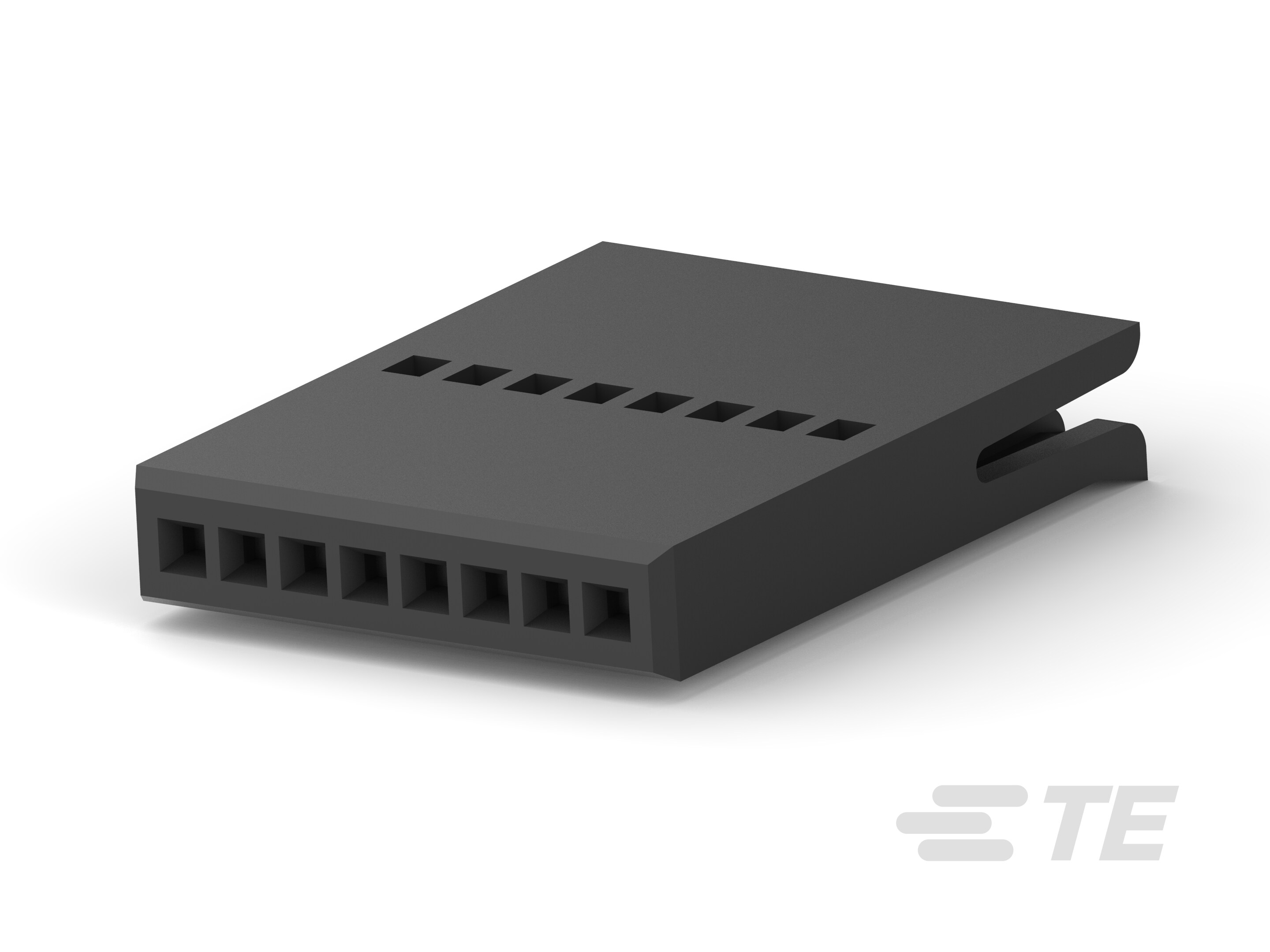

TE Connectivity AMP Connectors 487544-5	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	8	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1

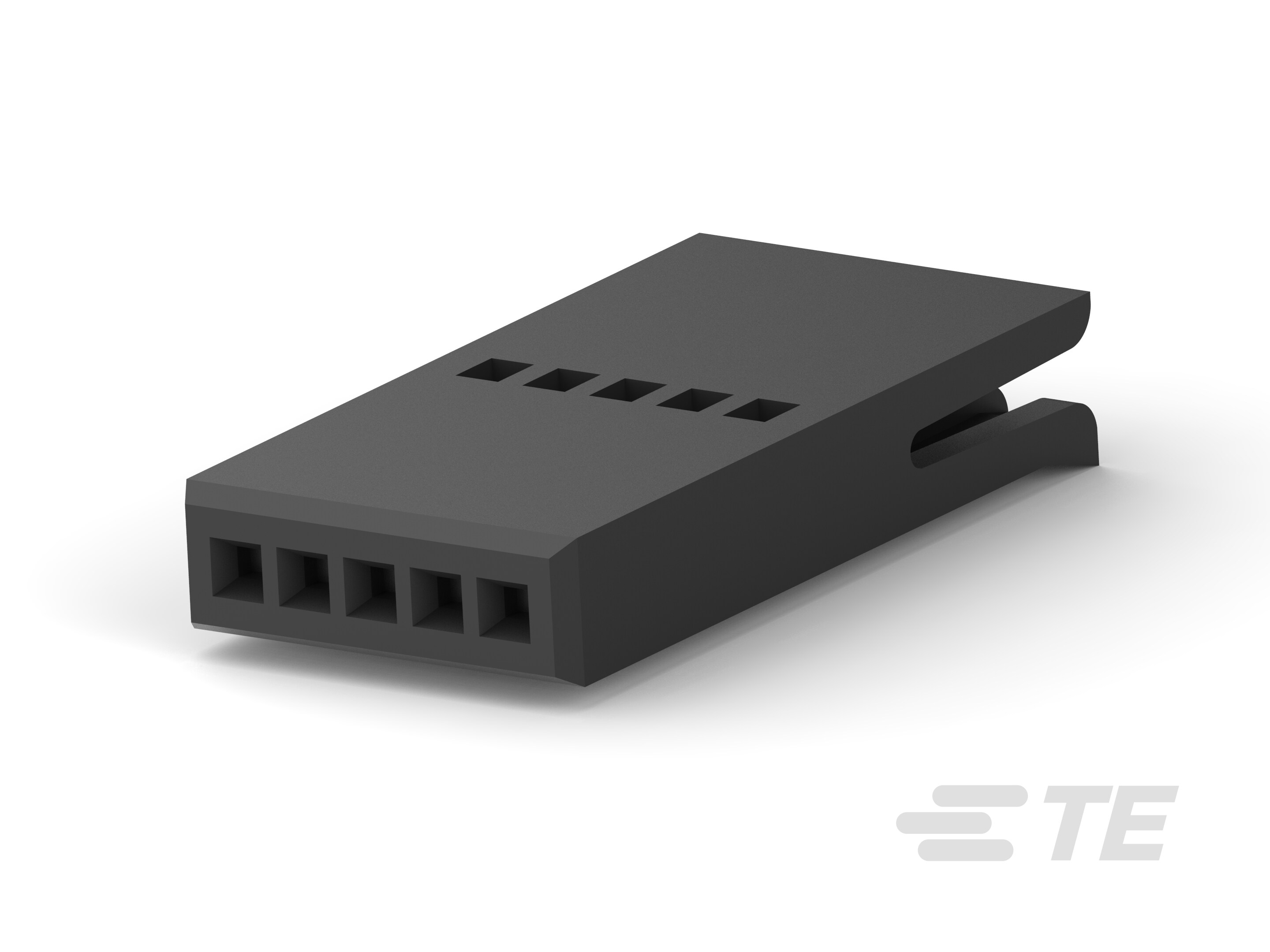

TE Connectivity AMP Connectors 487544-2	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	5	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1
TE Connectivity AMP Connectors 4-487544-7	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	50	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1

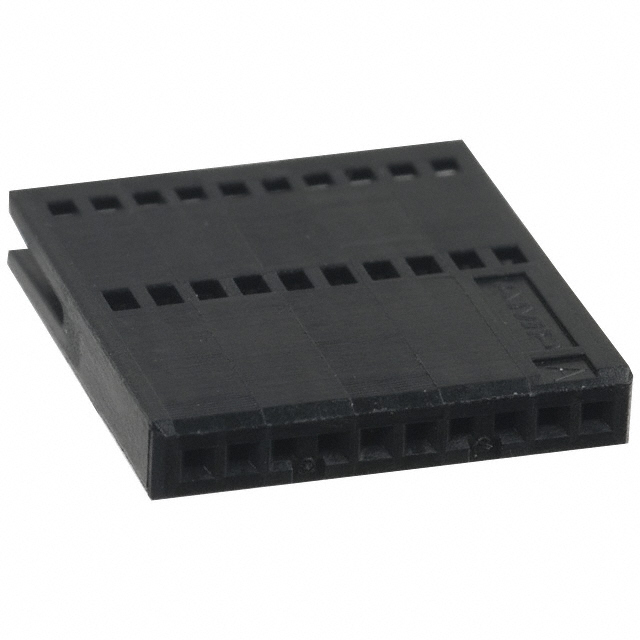

TE Connectivity AMP Connectors 487544-7	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	10	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1

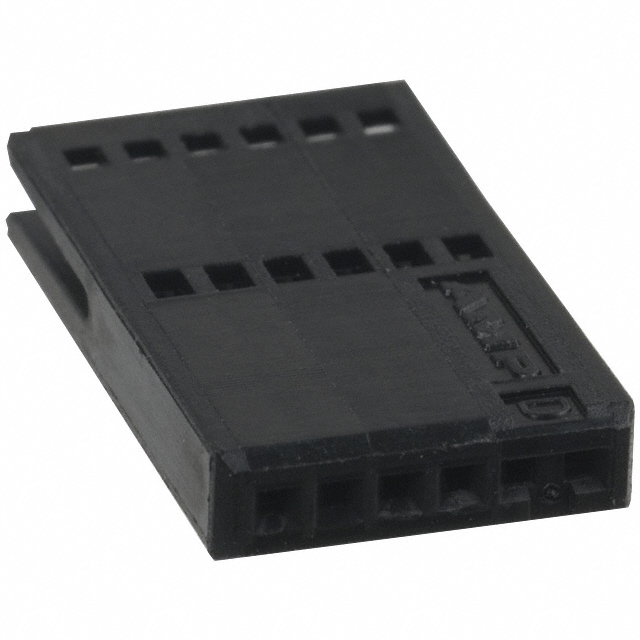

TE Connectivity AMP Connectors 487544-3	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	6	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1

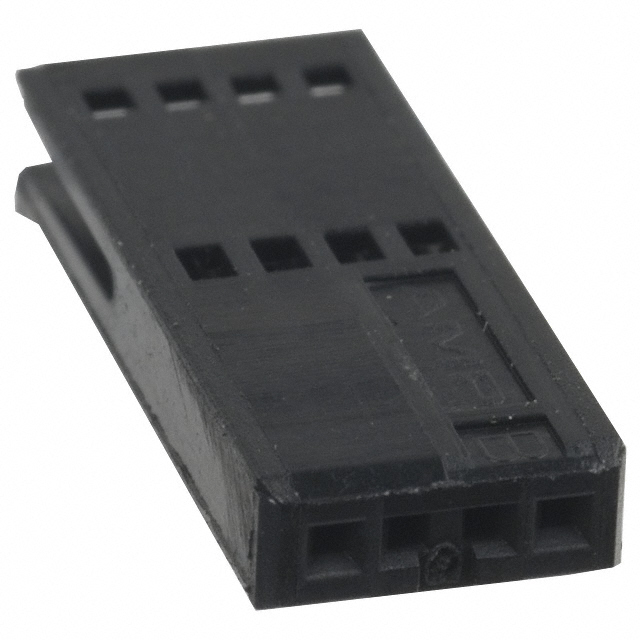

TE Connectivity AMP Connectors 487544-1	Black	Contacts Not Included	1.5 A	Polyester	Housing for Female Contacts	UL94 V-0	FFC	Detent Lock	4	100 VAC	0.05 mm	0.08 mm	0.05 in	-55 °C	105 °C	1
