0997030.WXN Series
Manufacturer: LITTELFUSE
Beta
⌘K

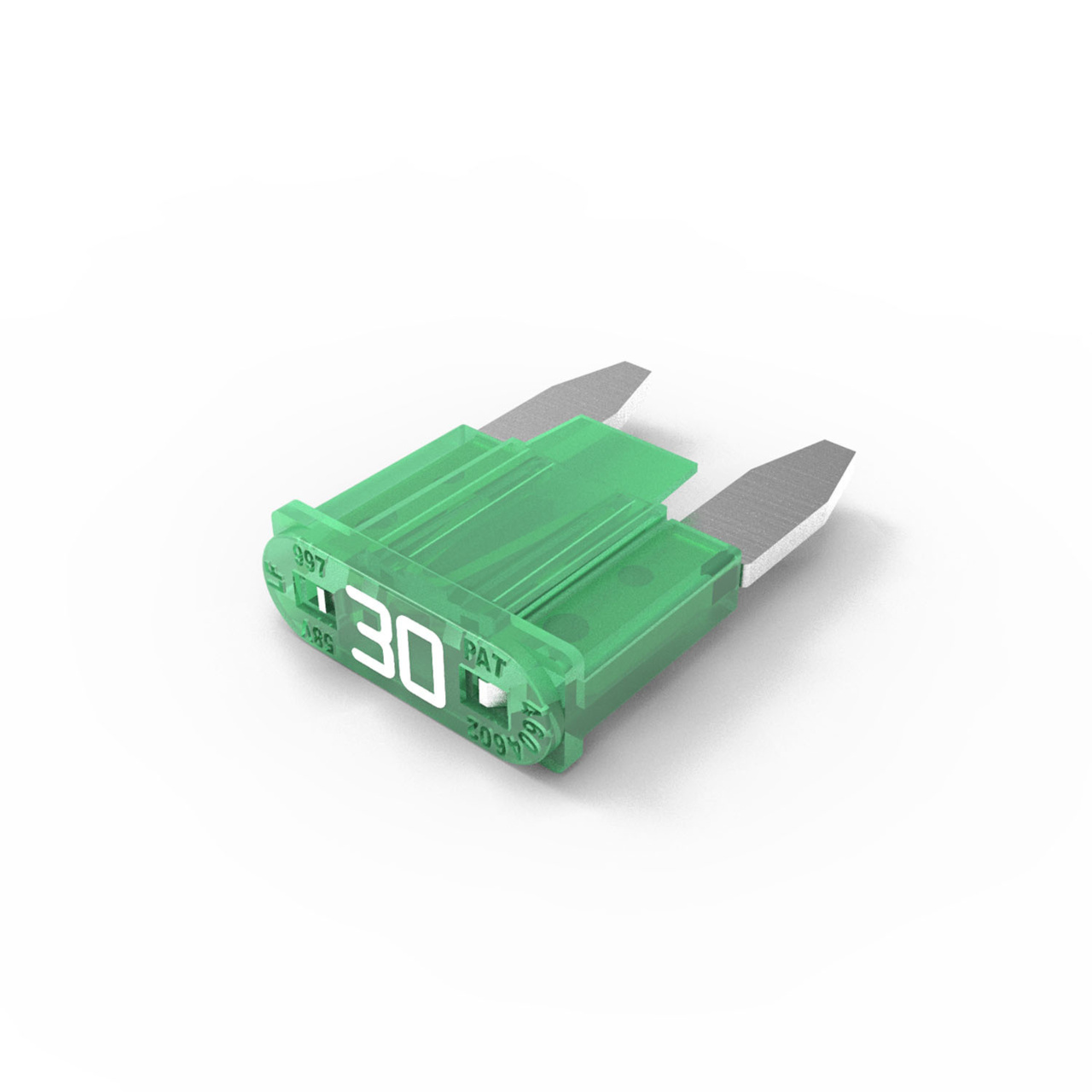

FUSE, AUTOMOTIVE, 30 A, 58 V, 10.9MM X 3.8MM X 16.3MM, MINI 997 SERIES
| Part | DC Cold Resistance | Voltage Rating - DC | Breaking Capacity | Package / Case | Melting I²t | Current Rating | Fuse Type | Response Time | Color | Mounting Type | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.00185 Ohms | 58 VDC | 1 kA | Blade Miniature | 1130 | 30 A | Automotive | Fast Blow | Green | Requires Holder | 0.346 in | 0.15 in | 0.429 in | 125 °C | -40 °C |
