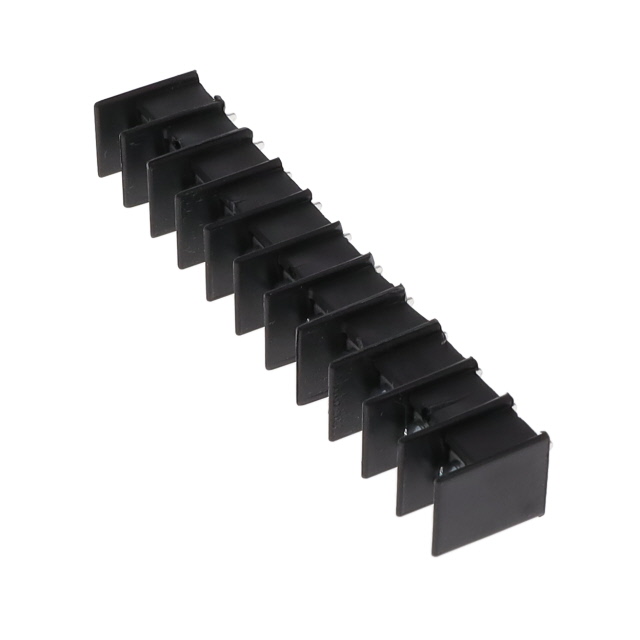

T38110 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 7CIRC 0.375"
| Part | Terminal Screw Finish | Material Flammability Rating | Mounting Type | Material - Insulation | Operating Temperature | Terminal Screw Material | Barrier Type | Terminal Block Type | Voltage Rating | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Pitch | Number of Circuits | Number of Rows | Number of Wire Entries | Bottom Termination | Top Termination | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 7 | 1 | 7 | PC Pin | Screws | 20 A |
 Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 11 | 1 | 11 | PC Pin | Screws | 20 A |
 Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 8 | 1 | 8 | PC Pin | Screws | 20 A |
Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 14 | 1 | 14 | PC Pin | Screws | 20 A |
Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 16 | 1 | 16 | PC Pin | Screws | 20 A |
Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 26 | 1 | 26 | PC Pin | Screws | 20 A |
Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 21 | 1 | 21 | PC Pin | Screws | 20 A |
Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 25 | 1 | 25 | PC Pin | Screws | 20 A |
 Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 4 | 1 | 4 | PC Pin | Screws | 20 A |
 Curtis Industries | Nickel | UL94 V-0 | Chassis Panel Through Hole | Polypropylene PP | 105 °C | Steel | 2 Wall (Dual) | Barrier Block | 300 VAC/DC | 12 AWG | 22 AWG | 0.375 in | 6 | 1 | 6 | PC Pin | Screws | 20 A |
