DCNHR100PF48 Series

DCNHR 100A 450V P 48Vcoil

Catalog

DCNHR 100A 450V P 48Vcoil

Part	Mounting Type	Switching Voltage DC (Max)	Contact Rating (Current)	Termination Style	Form A Count	Contact Form	Must Release Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Must Operate Voltage	Coil Voltage
LITTELFUSE DCNHR100PF48	Chassis Mount	900 VDC	100 A	Stud Wire Leads	1	SPST-NO	4.8 VAC	-40 °C	85 °C	33.6 VAC	48 V

Catalog

DCNHR 100A 450V P 48Vcoil

Description

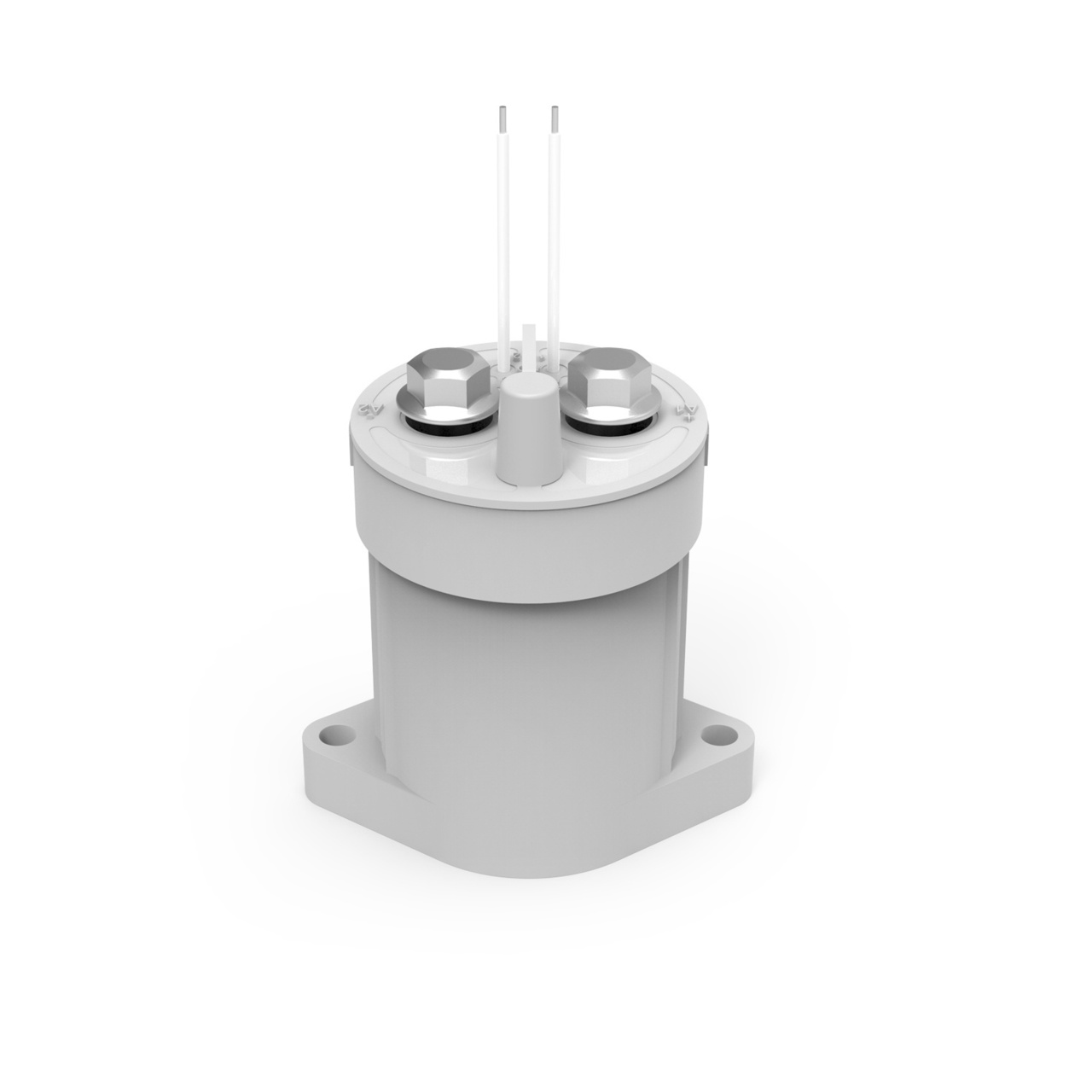

The DCNHR Series 900V High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff. This DCNHR Series contactor relay (DCNHR100PF48) is for 100A contact switching and features polarized main contacts and a 48V coil.
