207121 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

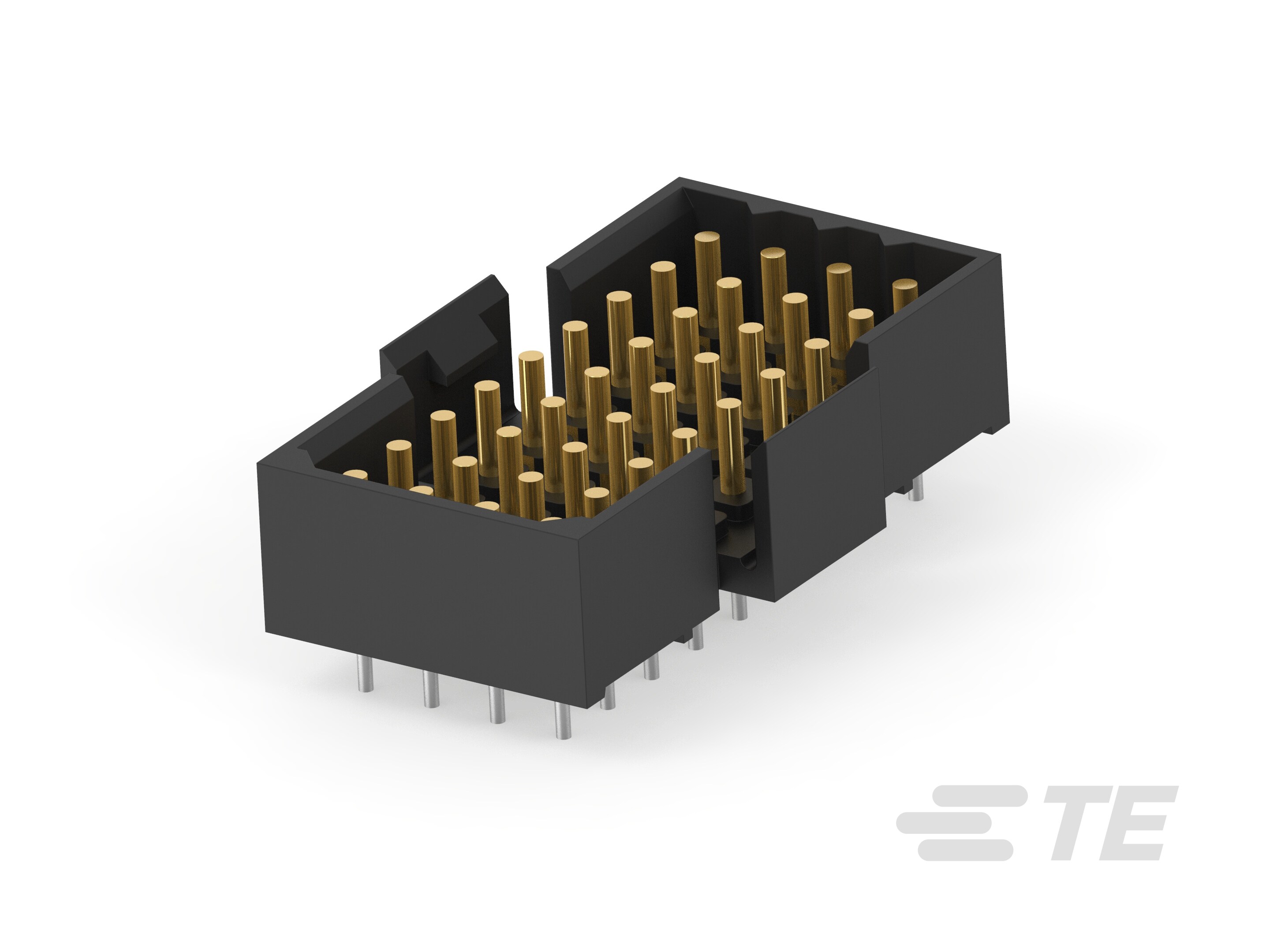

METRIMATE PIN HDR ASY,36P LF ROHS COMPLIANT: YES
| Part | Number of Positions | Style | Row Spacing - Mating | Voltage Rating | Contact Finish - Mating | Number of Rows | Contact Shape | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Color | Termination | Contact Finish - Post | Number of Positions Loaded | Insulation Material | Shrouding | Insulation Height | Mounting Type | Pitch - Mating | Contact Finish Thickness - Mating | Current Rating | Connector Type | Fastening Type | Material Flammability Rating | Contact Type | Contact Length - Post | Contact Material | Applications | Contact Finish Thickness - Post | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 36 | Board Board or Cable | 0.197 in | 600 V | Gold PdNi +Gold | 4 | Circular | -55 °C | 130 °C | Black Red | Solder | Tin | All | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.464 in | Through Hole | 0.197 in | 30 µin | 7.5 A | Header | Latch Lock | UL94 V-0 | Male Pin | 0.181 in | Brass | Automotive General Purpose Industrial | 150 µin | |
 TE Connectivity AMP Connectors | 36 | Board Board or Cable | 0.197 in | 600 V | Gold PdNi +Gold | 4 | Circular | -55 °C | 130 °C | Black Red | Solder | Tin | All | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.464 in | Through Hole | 0.197 in | 30 µin | 7.5 A | Header | Latch Lock | UL94 V-0 | Male Pin | 0.181 in | Brass | Automotive General Purpose Industrial | 150 µin | Mounting Flange |
 TE Connectivity AMP Connectors | 36 | Board Board or Cable | 0.197 in | 600 V | Gold | 4 | Circular | -55 °C | 130 °C | Black Red | Solder | Tin-Lead | All | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.464 in | Through Hole | 0.197 in | 30 µin | 7.5 A | Header | Latch Lock | UL94 V-0 | Male Pin | 0.181 in | Brass | Automotive General Purpose Industrial | 150 µin | |
TE Connectivity AMP Connectors | 36 | Board Board or Cable | 0.197 in | 600 V | Gold | 4 | Circular | -55 °C | 130 °C | Black Red | Solder | Tin-Lead | All | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.464 in | Through Hole | 0.197 in | 30 µin | 7.5 A | Header | Latch Lock | UL94 V-0 | Male Pin | 0.181 in | Brass | Automotive General Purpose Industrial | 150 µin | Mounting Flange |
 TE Connectivity AMP Connectors | 36 | Board Board or Cable | 0.197 in | 600 V | Tin | 4 | Circular | -55 °C | 130 °C | Black | Solder | Tin | All | Nylon Polyamide (PA) | Shrouded - 4 Wall | 0.464 in | Through Hole | 0.197 in | 150 µin | 7.5 A | Header | Latch Lock | UL94 V-0 | Male Pin | 0.181 in | Brass | Automotive General Purpose Industrial | 150 µin | Mounting Flange |
