2355091 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN, HEADER, 24POS, 1ROW, 1.2MM, SMT ROHS COMPLIANT: YES

Part	Contact Length - Mating	Connector Type	Fastening Type	Insulation Height	Voltage Rating	Voltage Rating (Type)	Current Rating	Shrouding	Style	Material Flammability Rating	Number of Rows	Pitch - Mating	Termination	Features	Insulation Material	Mounting Type	Contact Type	Contact Material	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Color
TE Connectivity AMP Connectors 2-2355091-4	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	24 pos	All	Tin	Square	85 °C	-30 °C	Natural
TE Connectivity AMP Connectors 2355091-5	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	5	All	Tin	Square	85 °C	-30 °C	Natural
TE Connectivity AMP Connectors 1-2355091-1	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	11	All	Tin	Square	85 °C	-30 °C	Natural

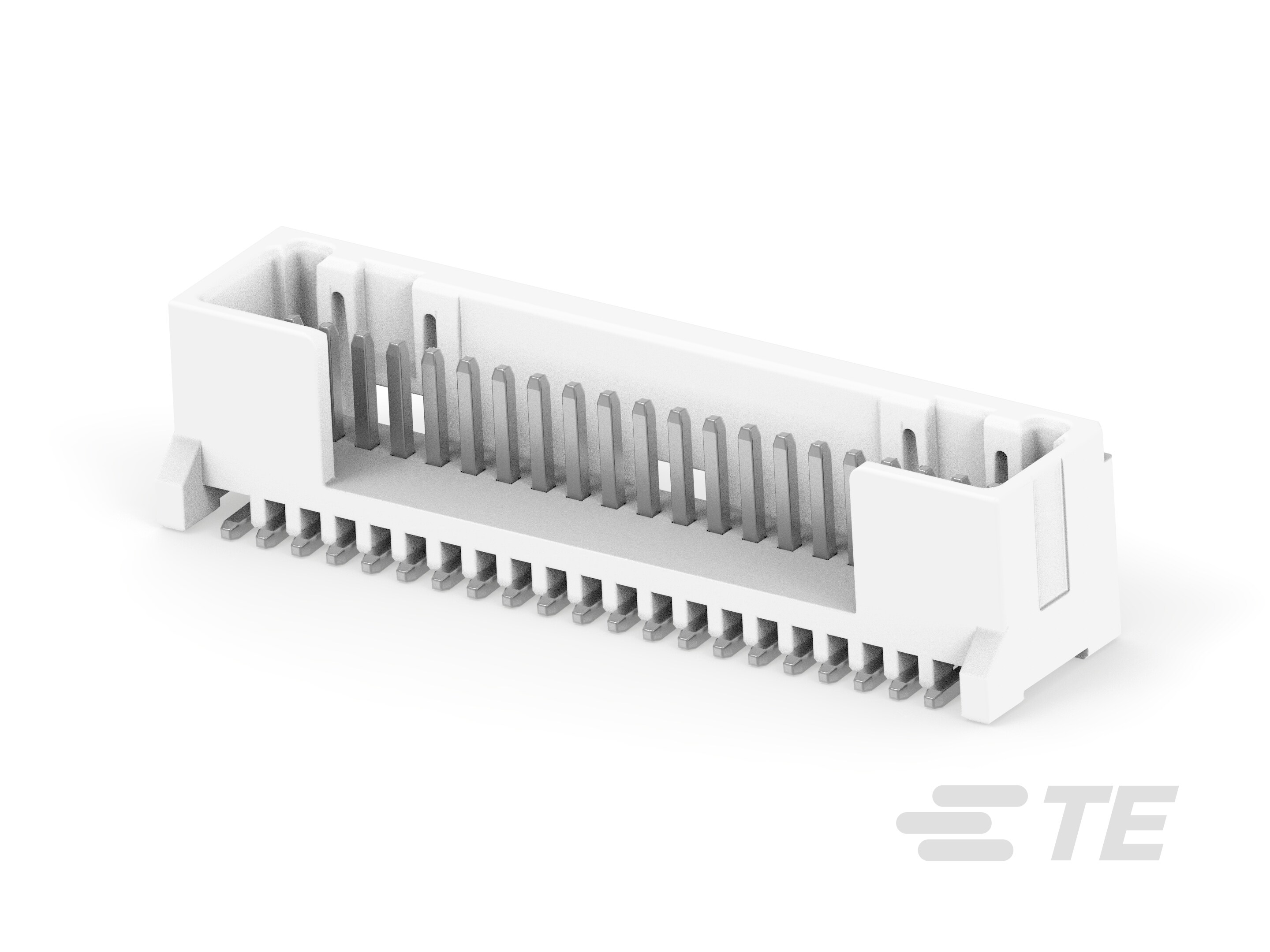

TE Connectivity AMP Connectors 2-2355091-1	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	21	All	Tin	Square	85 °C	-30 °C	Natural
TE Connectivity AMP Connectors 2355091-4	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	4	All	Tin	Square	85 °C	-30 °C	Natural

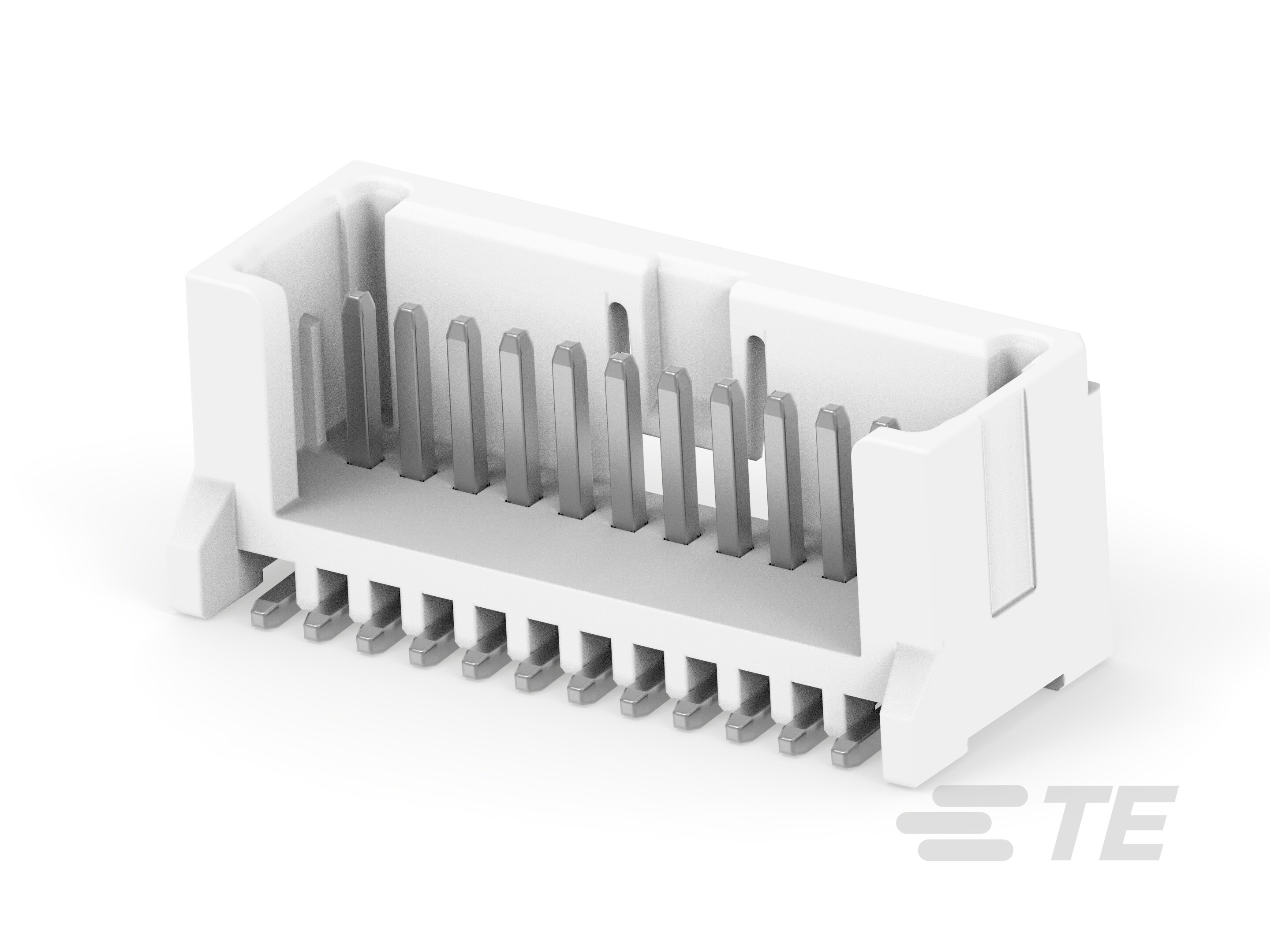

TE Connectivity AMP Connectors 1-2355091-2	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	12	All	Tin	Square	85 °C	-30 °C	Natural
TE Connectivity AMP Connectors 2-2355091-3	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	23	All	Tin	Square	85 °C	-30 °C	Natural

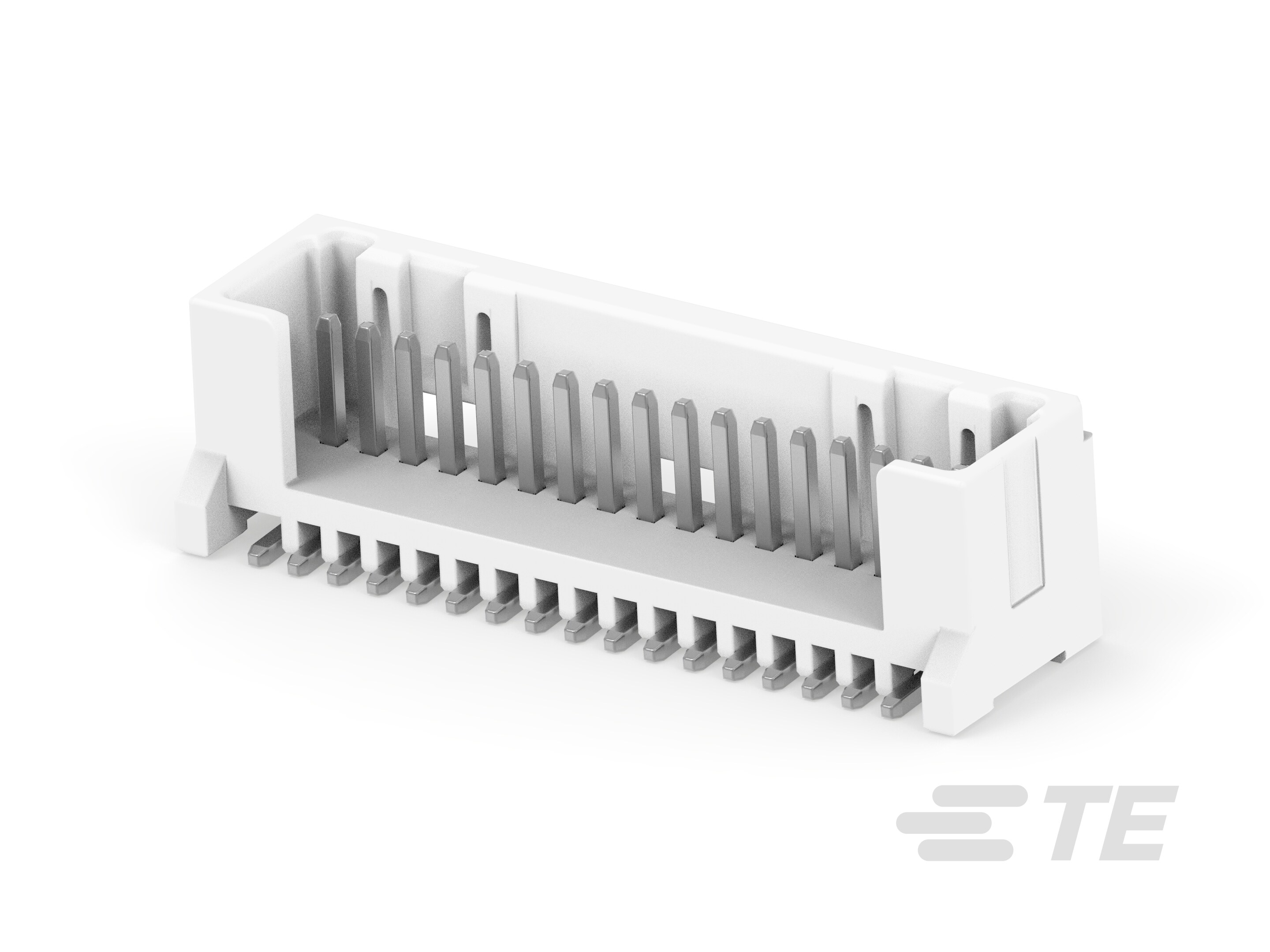

TE Connectivity AMP Connectors 1-2355091-7	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	17	All	Tin	Square	85 °C	-30 °C	Natural
TE Connectivity AMP Connectors 2355091-9	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	9	All	Tin	Square	85 °C	-30 °C	Natural
TE Connectivity AMP Connectors 1-2355091-8	0.136 in	Header	Push-Pull	0.264 in	50 V	DC	2 A	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	1	0.047 in	Solder	Board Guide	Thermoplastic	Surface Mount	Male Pin	Copper Alloy	18	All	Tin	Square	85 °C	-30 °C	Natural
