604336 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

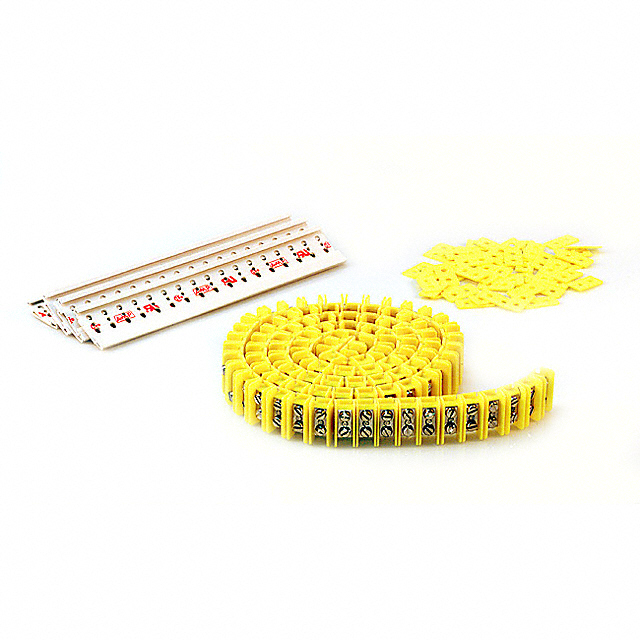

CONN BARR BLK KIT 60CIRC 0.375"
| Part | Mounting Type | Operating Temperature | Terminal Screw Material | Material - Insulation | Terminal Screw Finish | Number of Rows | Top Termination | Current Rating | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Number of Circuits | Voltage Rating | Barrier Type | Features | Bottom Termination | Color | Terminal Block Type | Pitch | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Channel Track | 105 °C | Brass | Nylon 6/6 PA66 Polyamide | Nickel | 2 | Screws with Captive Plate | 30 A | 22 AWG | 10 AWG | 60 | 600 V | 2 Wall (Dual) | Customizable | Closed | Yellow | Barrier Block Kit | 0.375 in | 120 |
