ISL78223 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

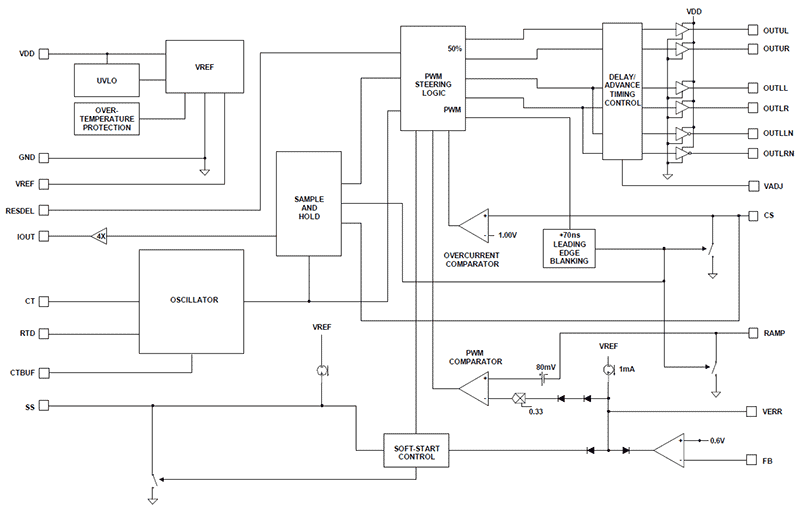

ZVS FULL-BRIDGE PWM CONTROLLER WITH ADJUSTABLE SYNCHRONOUS RECTIFIER CONTROL
| Part | Voltage - Supply (Vcc/Vdd) Minimum | Voltage - Supply (Vcc/Vdd) Maximum | Qualification | Output Phases | Package Width | Package Name | Package Length | Operating Temperature (Max) | Operating Temperature (Min) | Clock Sync | Frequency - Switching (Max) | Number of Outputs | Output Type | Topology | Duty Cycle (Max) | Output Configuration | Synchronous Rectifier | Grade | Function | Mounting Type | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation | 9 V | 16 V | AEC-Q100 | 1 | 3.9 mm | 20-QSOP 20-SSOP | 0.154 in | 105 °C | -40 °C | No | 2 MHz | 1 | Transistor Driver | Full-Bridge | 99 % | Isolation Capable Positive | Yes | Automotive | Step-Down Step-Up | Surface Mount | Frequency Control Ramp Soft Start |
Renesas Electronics Corporation | 9 V | 16 V | AEC-Q100 | 1 | 3.9 mm | 20-QSOP 20-SSOP | 0.154 in | 105 °C | -40 °C | No | 2 MHz | 1 | Transistor Driver | Full-Bridge | 99 % | Isolation Capable Positive | Yes | Automotive | Step-Down Step-Up | Surface Mount | Frequency Control Ramp Soft Start |
