5227222 Series

Catalog

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 50 OHM, PHOSPHOR BRONZE ROHS COMPLIANT: YES

Part	Shield Termination	Number of Ports	Contact Termination	Features	Fastening Type	Mounting Type	Housing Color	Connector Type	Center Contact Material	Frequency - Max	Impedance	Connector Style	Mounting Feature	Dielectric Material	Body Material	Mating Cycles	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Voltage Rating
TE Connectivity AMP Connectors 5227222-2	Solder	1	Solder	Board Guide Isolated	Bayonet Lock	Panel Mount Through Hole	Black Silver	Female Socket Jack	Phosphor Bronze	4 GHz	50 Ohm	BNC	Bulkhead Front Side Nut	Polymethylpentene (PMP)	Zinc	500 cycles	Nickel	-55 °C	85 °C	Tin	500 V
TE Connectivity AMP Connectors 5227222-6	Solder	1	Solder	Board Guide Isolated	Bayonet Lock	Panel Mount Through Hole	Black Silver	Female Socket Jack	Phosphor Bronze	4 GHz	50 Ohm	BNC	Bulkhead Front Side Nut	Polymethylpentene (PMP)	Zinc	500 cycles	Nickel	-55 °C	85 °C	Gold	500 V

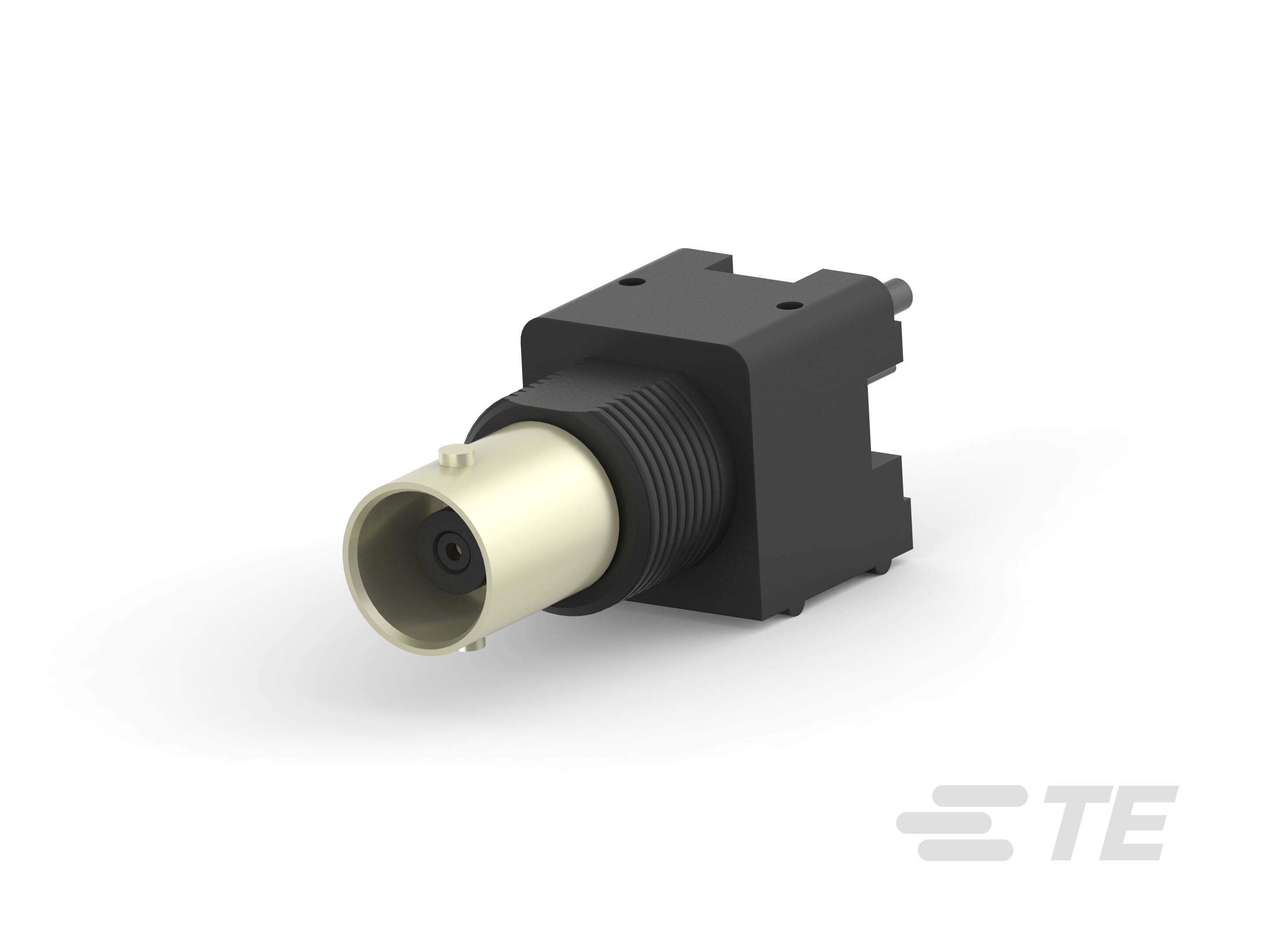

TE Connectivity AMP Connectors 5227222-6
TE Connectivity AMP Connectors 5227222-3	Solder	1	Solder	Board Guide Isolated	Bayonet Lock	Panel Mount Through Hole	Natural Silver	Female Socket Jack	Phosphor Bronze	4 GHz	50 Ohm	BNC	Bulkhead Front Side Nut	Polymethylpentene (PMP)	Zinc	500 cycles	Nickel	-55 °C	85 °C	Gold	500 V
