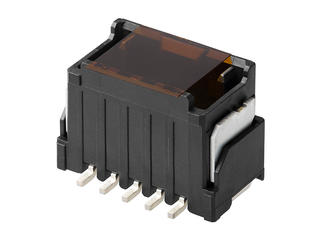

Micro-One Wire-to-Board Header, Vertical, 2.00mm Pitch, Single Row, Surface Mount, 5 Circuits, Tin-Bismuth Plating, Black, with Cover Tape
Micro-One Wire-to-Board Header, Vertical, 2.00mm Pitch, Single Row, Surface Mount, 5 Circuits, Tin-Bismuth Plating, Black, with Cover Tape
Micro-One Wire-to-Board Header, Vertical, 2.00mm Pitch, Single Row, Surface Mount, 5 Circuits, Tin-Bismuth Plating, Black, with Cover Tape
| Part | Insulation Height | Connector Type | Termination | Style | Contact Shape | Voltage Rating | Voltage Rating (Type) | Contact Finish - Mating | Number of Positions | Insulation Material | Contact Type | Mounting Type | Number of Rows | Features | Fastening Type | Shrouding | Contact Finish Thickness - Mating | Number of Positions Loaded | Contact Material | Pitch - Mating | Current Rating (Per Contact) | Operating Temperature (Min) | Operating Temperature (Max) | Material Flammability Rating | Contact Finish - Post | Insulation Color | Current Rating | Current Rating | Contact Finish Thickness - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.39 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin-Bismuth | 2 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Latch Lock | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | 4 A | -40 °C | 105 °C | UL94 V-0 | Tin-Bismuth | Black | ||||
 Molex | 0.39 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin | 2 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | -40 °C | 105 °C | UL94 V-0 | Tin | Black | 0 A | Varies by Wire Gauge | 39.4 µin | |||
 Molex | 0.28 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin | 5 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Latch Lock | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | -40 °C | 105 °C | UL94 V-0 | Tin-Bismuth | Black | 4 A | 39.4 µin | 0.047 in | ||
 Molex | 0.39 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin-Bismuth | 5 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Latch Lock | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | 4 A | -40 °C | 105 °C | UL94 V-0 | Tin-Bismuth | Black | ||||
Molex | 0.39 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin | 6 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | -40 °C | 105 °C | UL94 V-0 | Tin | Black | 0 A | Varies by Wire Gauge | 39.4 µin | |||
Molex | 0.39 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin-Bismuth | 7 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Latch Lock | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | 4 A | -40 °C | 105 °C | UL94 V-0 | Tin-Bismuth | Black | ||||
 Molex | 0.39 in | Header | Solder | Board Board or Cable | Square | 250 V | DC | Tin | 2 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Push-Pull | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | -40 °C | 105 °C | UL94 V-0 | Tin | Beige | 0 A | Varies by Wire Gauge | 39.4 µin | ||
Molex | 0.39 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin | 7 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | -40 °C | 105 °C | UL94 V-0 | Tin | Black | 0 A | Varies by Wire Gauge | 39.4 µin | |||
 Molex | 0.39 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin-Bismuth | 4 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Latch Lock | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | -40 °C | 105 °C | UL94 V-0 | Tin-Bismuth | Black | 0 A | Varies by Wire Gauge | |||
Molex | 0.39 in | Header | Solder | Board Cable/Wire | Square | 250 V | DC | Tin-Bismuth | 6 | Nylon Polyamide (PA) | Male Pin | Surface Mount | 1 | Solder Retention | Latch Lock | Shrouded - 4 Wall | 39.4 µin | All | Brass | 0.079 in | 4 A | -40 °C | 105 °C | UL94 V-0 | Tin-Bismuth | Black |
