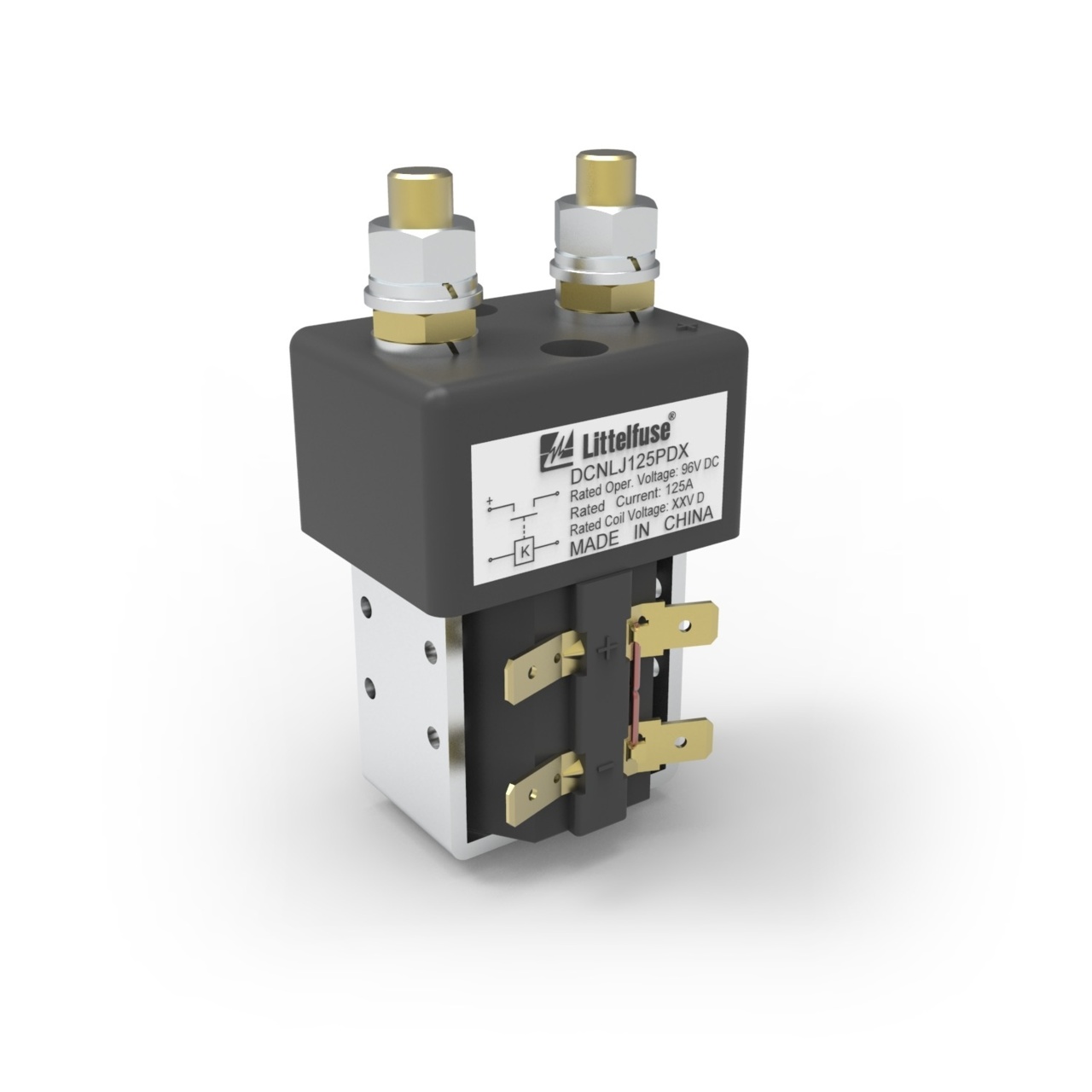

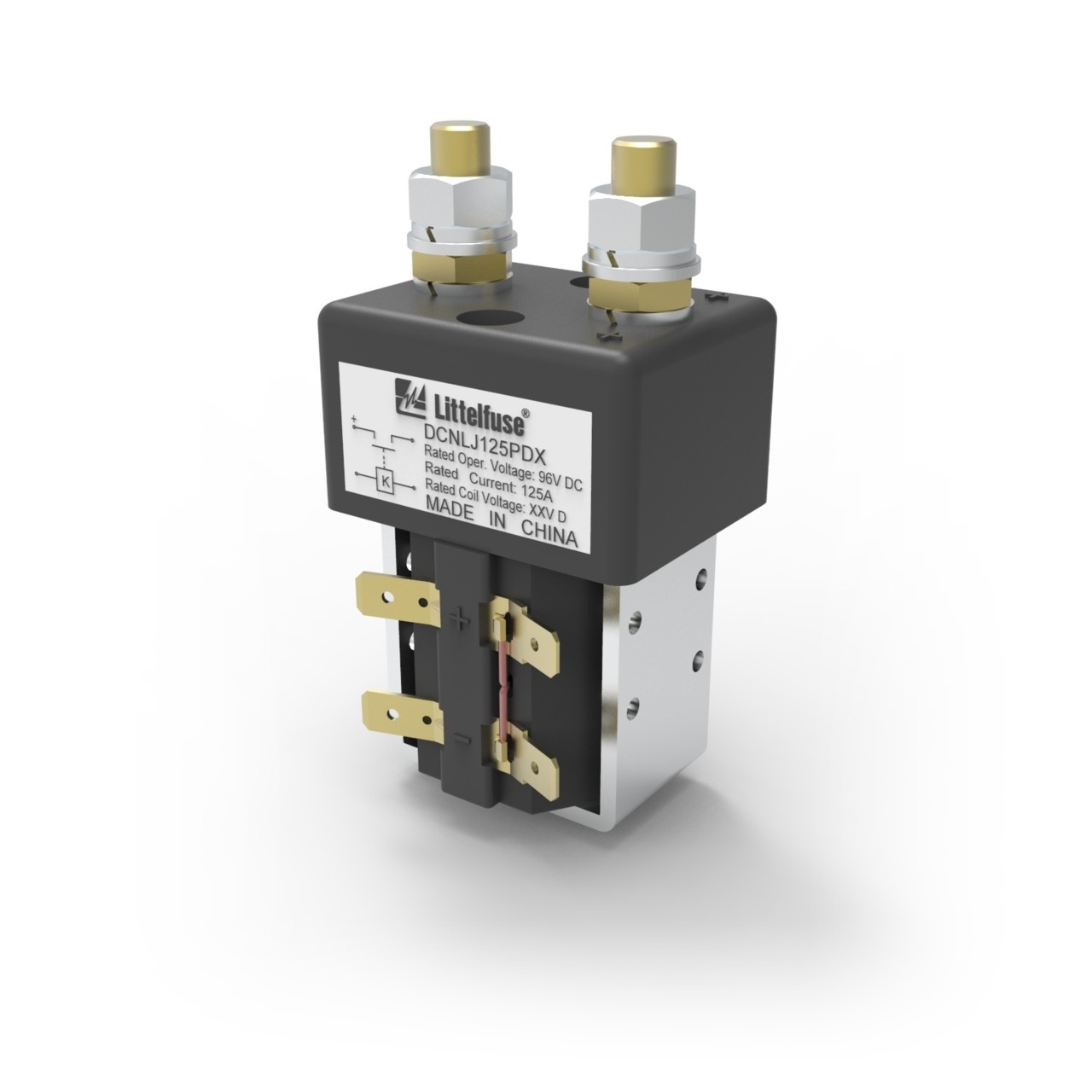

DCNLJ125PD12 Series

DCNLJ 125A 96V P 12Vcoil

Catalog

DCNLJ 125A 96V P 12Vcoil

Part	Quick Connect Size (0.250")	Termination Style	Coil Voltage	Mounting Type	Must Release Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Form A Count	Contact Form	Switching Voltage DC (Max)	Contact Rating (Current)	Must Operate Voltage
LITTELFUSE DCNLJ125PD12	0.25 in	Quick Connect Screw Terminal	12 VAC	Chassis Mount	1 VDC	-40 °C	85 °C	1	SPST-NO	110 VDC	125 A	8.4 VAC

Catalog

DCNLJ 125A 96V P 12Vcoil

Description

Designed for high-current contact switching in electric control systems of communication power supplies, electro-motion forklifts, motor cars, trains, uninterruptible power supplies (UPS), and more, this 125A High-Current High-Voltage DC Contactor Relay has a normally open contact arrangement and features a contact voltage drop of ≤80 mV @ 100A.This model of the DCNLJ125 series (DCNLJ125PD12) DC contactor has a 12V coil and polarized contacts rated for 96V (typical) and 110V (max).
