MIC4451 Series

Catalog

IC GATE DRVR LOW-SIDE 8SOIC

Part	Gate Type	Package Length	Package Name	Package Width	Current - Peak Output (Source)	Current - Peak Output (Sink)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Gate Channel	Driven Configuration	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Channel Type	Rise Time (Typ)	Fall Time (Typ)	Logic Voltage - VIH	Logic Voltage - VIL	Number of Drivers	Input Type	Package / Case
Microchip Technology MIC4451ABM-TR	IGBT MOSFET N-Channel MOSFET	0.154 in	8-SOIC	3.9 mm	12 A	12 A	18 V	4.5 V	N-Channel	Low-Side	Surface Mount	85 °C	-40 °C	Single	20 ns	24 ns	2.4 V	0.8 V	1	Inverting
Microchip Technology MIC4451YN	IGBT MOSFET N-Channel MOSFET	0.3 in	8-DIP 8-PDIP	7.62 mm	12 A	12 A	18 V	4.5 V	N-Channel	Low-Side	Through Hole	85 °C	-40 °C	Single	20 ns	24 ns	2.4 V	0.8 V	1	Inverting
Microchip Technology MIC4451YM	IGBT MOSFET N-Channel MOSFET	0.154 in	8-SOIC	3.9 mm	12 A	12 A	18 V	4.5 V	N-Channel	Low-Side	Surface Mount	85 °C	-40 °C	Single	20 ns	24 ns	2.4 V	0.8 V	1	Inverting
Microchip Technology MIC4451BM-TR	IGBT MOSFET N-Channel MOSFET	0.154 in	8-SOIC	3.9 mm	12 A	12 A	18 V	4.5 V	N-Channel	Low-Side	Surface Mount	85 °C	-40 °C	Single	20 ns	24 ns	2.4 V	0.8 V	1	Inverting
Microchip Technology MIC4451BN	IGBT MOSFET N-Channel MOSFET	0.3 in	8-DIP 8-PDIP	7.62 mm	12 A	12 A	18 V	4.5 V	N-Channel	Low-Side	Through Hole	85 °C	-40 °C	Single	20 ns	24 ns	2.4 V	0.8 V	1	Inverting
Microchip Technology MIC4451ABN	IGBT MOSFET N-Channel MOSFET	0.3 in	8-DIP 8-PDIP	7.62 mm	12 A	12 A	18 V	4.5 V	N-Channel	Low-Side	Through Hole	85 °C	-40 °C	Single	20 ns	24 ns	2.4 V	0.8 V	1	Inverting

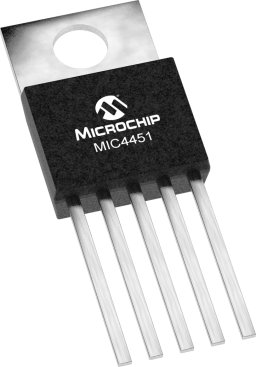

Microchip Technology MIC4451ZT	IGBT MOSFET		TO-220-5		12 A	12 A	18 V	4.5 V	N-Channel	Low-Side	Through Hole	70 °C	0 °C	Single	20 ns	24 ns	2.4 V	0.8 V	1	Inverting	TO-220-5
Microchip Technology MIC4451YM-TR	IGBT MOSFET N-Channel MOSFET	0.154 in	8-SOIC	3.9 mm	12 A	12 A	18 V	4.5 V	N-Channel	Low-Side	Surface Mount	85 °C	-40 °C	Single	20 ns	24 ns	2.4 V	0.8 V	1	Inverting
