214097 Series
Manufacturer: Molex
Beta
⌘K

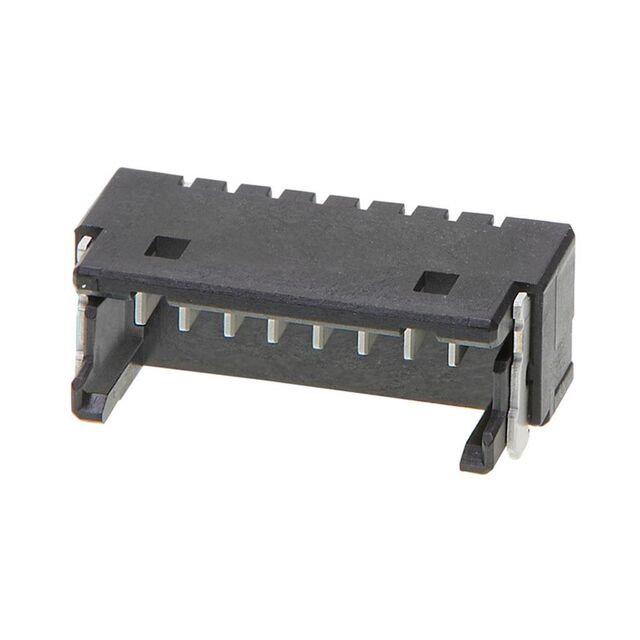

ONEBLADE HEADER, 1.00MM PITCH, SINGLE ROW, RIGHT-ANGLE, SURFACE MOUNT, TIN (SN) PLATING, FRICTION LOCK, 7 CIRCUITS, TAPE AND REEL
| Part | Contact Shape | Contact Material | Insulation Height | Current Rating | Current Rating | Number of Positions Loaded | Connector Type | Contact Finish - Mating | Fastening Type | Operating Temperature (Min) | Operating Temperature (Max) | Pitch - Mating | Features | Insulation Color | Number of Rows | Style | Insulation Material | Termination | Number of Positions | Voltage Rating | Voltage Rating (Type) | Contact Finish Thickness - Post | Mounting Type | Material Flammability Rating | Contact Type | Shrouding | Contact Finish - Post | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Rectangular | Brass | 0.157 in | 0 A | Varies by Wire Gauge | All | Header | Tin | Friction Lock | -40 °C | 105 °C | 0.039 in | Solder Retention | Black | 1 | Board Cable/Wire | Glass Filled Nylon Polyamide (PA) | Solder | 7 | 100 VAC | AC DC | 39.4 µin | Right Angle Surface Mount | UL94 V-0 | Male Blade | Shrouded - 3 Wall | Tin | 39.4 µin |
 Molex | Rectangular | Brass | 0.157 in | 0 A | Varies by Wire Gauge | All | Header | Tin | Friction Lock | -40 °C | 105 °C | 0.039 in | Solder Retention | Black | 1 | Board Cable/Wire | Glass Filled Nylon Polyamide (PA) | Solder | 2 | 100 VAC | AC DC | 39.4 µin | Right Angle Surface Mount | UL94 V-0 | Male Blade | Shrouded - 3 Wall | Tin | 39.4 µin |
 Molex | Rectangular | Brass | 0.157 in | 0 A | Varies by Wire Gauge | All | Header | Tin | Friction Lock | -40 °C | 105 °C | 0.039 in | Solder Retention | Black | 1 | Board Cable/Wire | Glass Filled Nylon Polyamide (PA) | Solder | 8 | 100 VAC | AC DC | 39.4 µin | Right Angle Surface Mount | UL94 V-0 | Male Blade | Shrouded - 3 Wall | Tin | 39.4 µin |
 Molex | Rectangular | Brass | 0.157 in | 0 A | Varies by Wire Gauge | All | Header | Tin | Friction Lock | -40 °C | 105 °C | 0.039 in | Solder Retention | Black | 1 | Board Cable/Wire | Glass Filled Nylon Polyamide (PA) | Solder | 4 | 100 VAC | AC DC | 39.4 µin | Right Angle Surface Mount | UL94 V-0 | Male Blade | Shrouded - 3 Wall | Tin | 39.4 µin |
Molex | Rectangular | Brass | 0.157 in | 0 A | Varies by Wire Gauge | All | Header | Tin | Friction Lock | -40 °C | 105 °C | 0.039 in | Solder Retention | Black | 1 | Board Cable/Wire | Glass Filled Nylon Polyamide (PA) | Solder | 5 | 100 VAC | AC DC | 39.4 µin | Right Angle Surface Mount | UL94 V-0 | Male Blade | Shrouded - 3 Wall | Tin | 39.4 µin |
 Molex | Rectangular | Brass | 0.157 in | 0 A | Varies by Wire Gauge | All | Header | Tin | Friction Lock | -40 °C | 105 °C | 0.039 in | Solder Retention | Black | 1 | Board Cable/Wire | Glass Filled Nylon Polyamide (PA) | Solder | 3 | 100 VAC | AC DC | 39.4 µin | Right Angle Surface Mount | UL94 V-0 | Male Blade | Shrouded - 3 Wall | Tin | 39.4 µin |
 Molex | Rectangular | Brass | 0.157 in | 0 A | Varies by Wire Gauge | All | Header | Tin | Friction Lock | -40 °C | 105 °C | 0.039 in | Solder Retention | Black | 1 | Board Cable/Wire | Glass Filled Nylon Polyamide (PA) | Solder | 6 | 100 VAC | AC DC | 39.4 µin | Right Angle Surface Mount | UL94 V-0 | Male Blade | Shrouded - 3 Wall | Tin | 39.4 µin |
