039773 Series

Manufacturer: Molex

Catalog

CONN TERMINAL BLOCK 3 POS 2.54MM SOLDER ST THRU-HOLE 10A/CONTACT EUROSTYLE FIXED MOUNT

Part	Mounting Type	Pitch	Color	Positions Per Level	Voltage	Wire Termination	Mating Orientation	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Levels	Current	Screw Thread	Torque - Screw	Operating Temperature (Min)	Operating Temperature (Max)	Plating	Contact Material	Housing Material	Clamp Material	Clamp Plating	Screw Plating	Screw Material
Molex 0397730003	Through Hole	0.1 in	Green	3	150 V	Rising Cage Clamp Screw	Horizontal with Board	16 AWG	30 AWG	1	10 A	M1.6	0.19 Nm	-40 °C	110 °C	Tin Plated	Copper Alloy	Nylon 6/6 PA66 Polyamide	Copper Alloy	Nickel Plated	Nickel Plated	Copper Alloy
Molex 0397730004	Through Hole	0.1 in	Green	4	150 V	Rising Cage Clamp Screw	Horizontal with Board	16 AWG	30 AWG	1	10 A	M1.6	0.19 Nm	-40 °C	110 °C	Tin Plated	Copper Alloy	Nylon 6/6 PA66 Polyamide	Copper Alloy	Nickel Plated	Nickel Plated	Copper Alloy
Molex 0397730006	Through Hole	0.1 in	Green	6	150 V	Rising Cage Clamp Screw	Horizontal with Board	16 AWG	30 AWG	1	10 A	M1.6	0.2 Nm	-40 °C	110 °C	Tin Plated	Copper Alloy	Nylon 6/6 PA66 Polyamide	Copper Alloy	Nickel Plated	Nickel Plated	Copper Alloy
Molex 0397730002	Through Hole	0.1 in	Green	2	150 V	Rising Cage Clamp Screw	Horizontal with Board	16 AWG	30 AWG	1	10 A	M1.6	0.19 Nm	-40 °C	110 °C	Tin Plated	Copper Alloy	Nylon 6/6 PA66 Polyamide	Copper Alloy	Nickel Plated	Nickel Plated	Copper Alloy

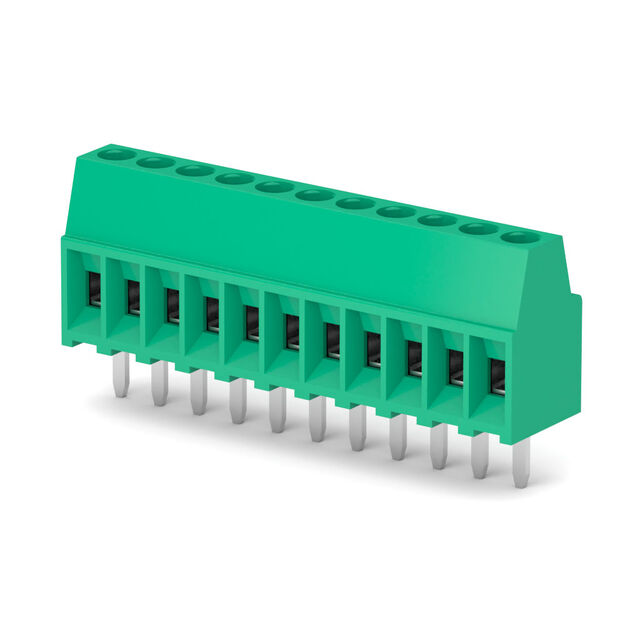

Molex 0397730011	Through Hole	0.1 in	Green	11	150 V	Rising Cage Clamp Screw	Horizontal with Board	16 AWG	30 AWG	1	10 A	M1.6	0.2 Nm	-40 °C	110 °C	Tin Plated	Copper Alloy	Nylon 6/6 PA66 Polyamide	Copper Alloy	Nickel Plated	Nickel Plated	Copper Alloy
Molex 0397730012	Through Hole	0.1 in	Green	12	150 V	Rising Cage Clamp Screw	Horizontal with Board	16 AWG	30 AWG	1	10 A	M1.6	0.2 Nm	-40 °C	110 °C	Tin Plated	Copper Alloy	Nylon 6/6 PA66 Polyamide	Copper Alloy	Nickel Plated	Nickel Plated	Copper Alloy
Molex 0397730010	Through Hole	0.1 in	Green	10	150 V	Rising Cage Clamp Screw	Horizontal with Board	16 AWG	30 AWG	1	10 A	M1.6	0.2 Nm	-40 °C	110 °C	Tin Plated	Copper Alloy	Nylon 6/6 PA66 Polyamide	Copper Alloy	Nickel Plated	Nickel Plated	Copper Alloy
Molex 0397730005	Through Hole	0.1 in	Green	5	150 V	Rising Cage Clamp Screw	Horizontal with Board	16 AWG	30 AWG	1	10 A	M1.6	0.2 Nm	-40 °C	110 °C	Tin Plated	Copper Alloy	Nylon 6/6 PA66 Polyamide	Copper Alloy	Nickel Plated	Nickel Plated	Copper Alloy
