S8VK-G060 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 60W
| Part | Approval Agency | Power (Watts) | Number of Outputs | Operating Temperature (Max) | Operating Temperature (Min) | AC Voltage - Input (Max) | AC Voltage - Input (Min) | Efficiency | Applications | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Voltage - Isolation | Current - Output (Max) | Voltage - Output 1 | Features | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | CE cULus cURus TUV | 60 W | 1 | 70 °C | -40 °C | 264 VAC | 85 VAC | 88 % | ITE (Commercial) | 3.54 in | 1.26 in | 4.33 in | 3 kV | 2.5 A | 24 V | Adjustable Output PFC Universal Input | AC |
 Omron Automation and Safety | CE cULus cURus VDE | 60 W | 1 | 75 °C | -40 °C | 264 VAC | 85 VAC | 88 % | ITE (Commercial) | 3.54 in | 1.26 in | 4.33 in | 3 kV | 2.5 A | 24 V | Adjustable Output Load Sharing Universal Input | AC |

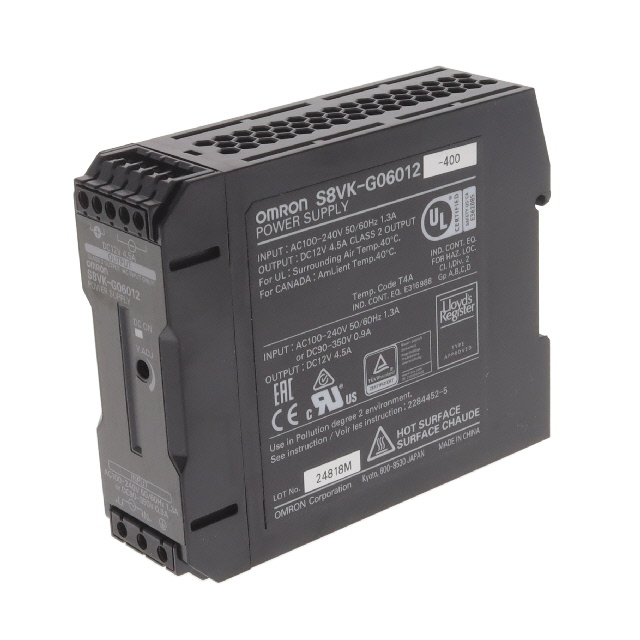

 Omron Automation and Safety | CE cULus cURus TUV | 60 W | 1 | 70 °C | -40 °C | 264 VAC | 85 VAC | 85 % | ITE (Commercial) | 3.54 in | 1.26 in | 4.33 in | 3 kV | 4.5 A | 12 V | Adjustable Output PFC Universal Input | AC |
