234465 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

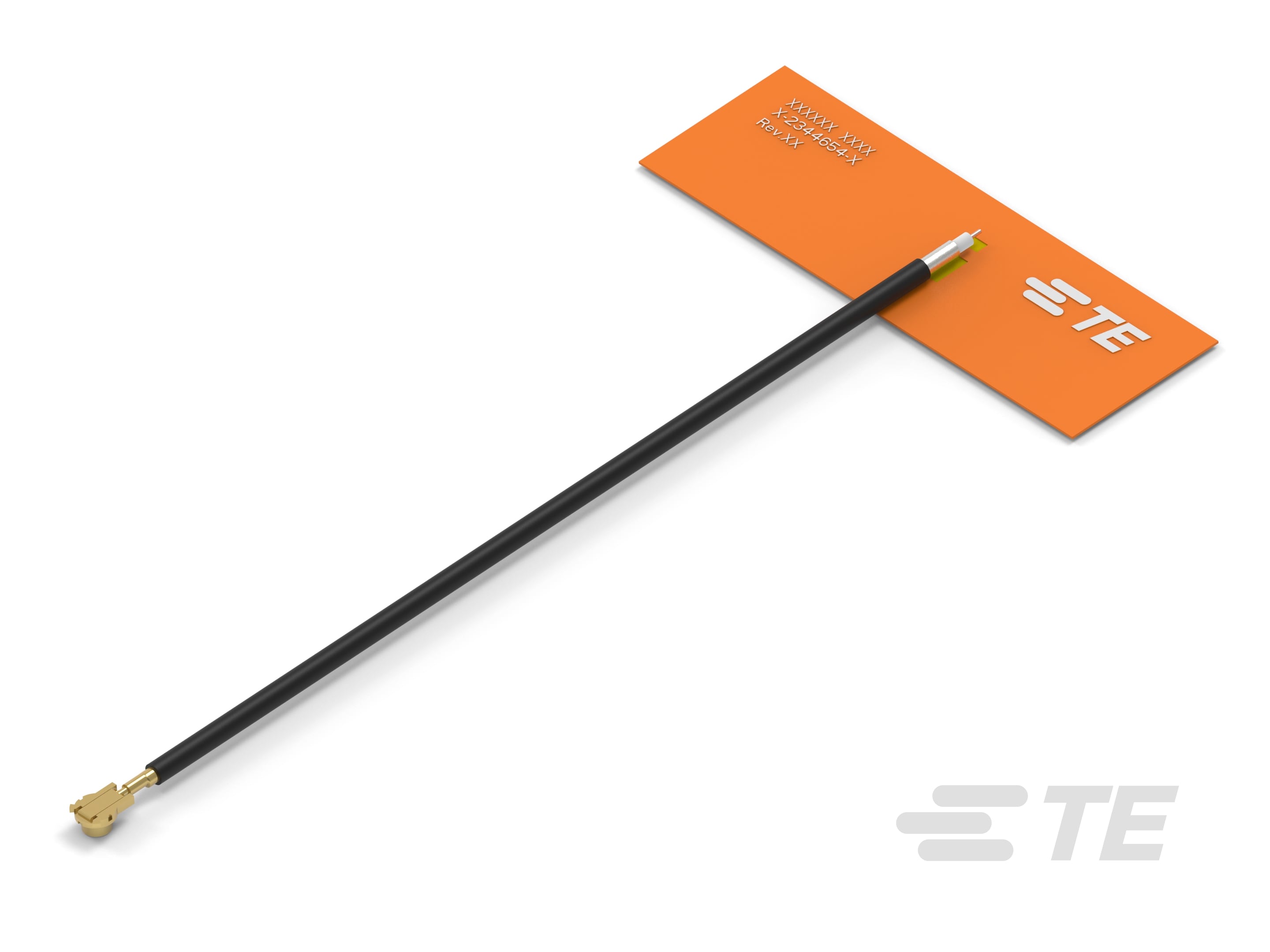

ANTENNA, EMBEDDED, PCB, 5.15 GHZ - 5.85 GHZ, 7 DBI, LINEAR, ADHESIVE, 150MM CABLE, MHF4 CONNECTOR
| Part | Termination | Height (Max) | Frequency Range (Band 1) Maximum | Frequency Range (Band 1) Minimum | Frequency Range (Band 2) Maximum | Frequency Range (Band 2) Minimum | Antenna Type | Gain | Mounting Type | Features | Frequency (Band) | Frequency (Center) | VSWR | Frequency Group Minimum (SHF) | Frequency Group | Frequency Group Maximum (UHF) | Frequency Group Minimum (UHF) | RF Family/Standard | Number of Bands | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | I-PEX MHF4 IPEX MHF4 U.FL (UMCC) | 0.007 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 150mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | I-PEX MHF4 IPEX MHF4 U.FL (UMCC) | 0.007 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 200mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | I-PEX MHF4 IPEX MHF4 U.FL (UMCC) | 0.039 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 100mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | IPEX MHF4 MHF4 U.FL (UMCC) | 0.007 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 150mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | I-PEX MHF4 IPEX MHF4 | 0.007 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 100mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | I-PEX MHF4 IPEX MHF4 U.FL (UMCC) | 0.039 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 200mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | I-PEX MHF4 IPEX MHF4 U.FL (UMCC) | 0.039 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 150mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | I-PEX MHF4 IPEX MHF4 U.FL (UMCC) | 0.039 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 50mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | IPEX MHF4 MHF4 U.FL (UMCC) | 0.007 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 200mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
 TE Connectivity AMP Connectors | IPEX MHF4 MHF4 U.FL (UMCC) | 0.007 in | 2.5 GHz | 2.4 GHz | 5.875 GHz | 5.15 GHz | PCB Trace | 5 dBi | Adhesive | 100mm Cable | 5.5125 GHz | 2.45 GHz | 2 | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 802.15.4 Bluetooth WiFi | 2 | Bluetooth WLAN Zigbee™ |
