16R1100G Series

PTC 16V POLYFUSE AMMO RADIAL LEADS 11A

Catalog

PTC 16V POLYFUSE AMMO RADIAL LEADS 11A

Part	Approval Agency	Current - Max	Operating Temperature (Min)	Operating Temperature (Max)	Resistance - Post Trip (R1) (Max)	Time to Trip	Current - Trip (It)	Mounting Type	Voltage - Max	Resistance - Initial (Ri) (Min)	Lead Spacing	Size / Dimension Width	Size / Dimension Length	Package / Case	Current - Hold (Ih) (Max)	Height - Seated (Max)	Type

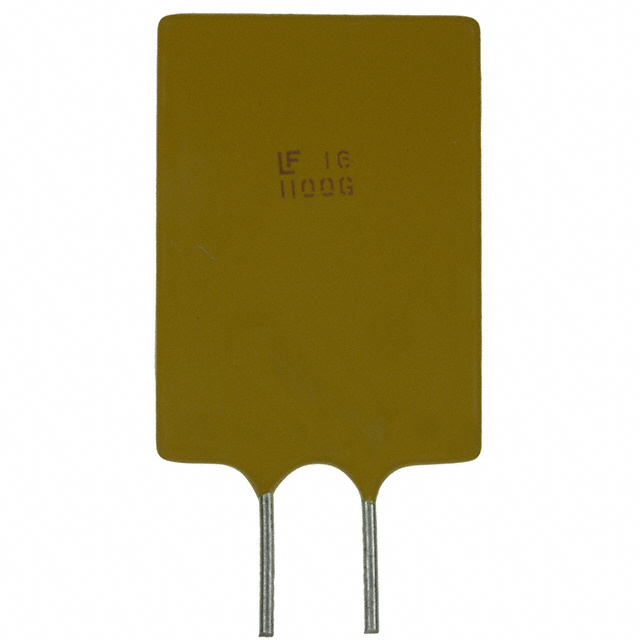

LITTELFUSE 16R1100GMR	cURus TUV	100 A	-40 °C	85 °C	8.9 mOhms	7 s	18.7 A	Through Hole	16 V	3.7 mOhms	0.201 in	0.118 in	0.689 in	Disc Radial	11 A	1.024 in	Polymeric

Catalog

PTC 16V POLYFUSE AMMO RADIAL LEADS 11A

Description

Littelfuse 16R Series Radial Leaded PTCs are designed to provide resettable overcurrent protection serving a wide range of electronics applications. With maximum 16 volts and maximum 100-ampere short circuit rating, they offer an ideal solution for USB protection.
