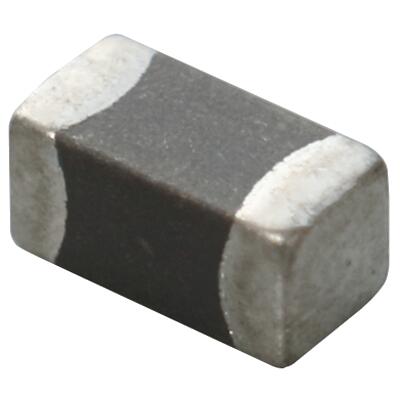

LQM18NN Series

Catalog

FIXED IND 180NH 50MA 600MOHM SMD

Part	Inductance	Current Rating	Tolerance	Inductance Frequency - Test	Type	Mounting Type	Frequency - Self Resonant	Package / Case	Q	Shielding	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Material - Core	DC Resistance (DCR) (Max)	Package Name
Murata Electronics LQM18NNR18K00D	180 nH	50 mA	10 %	25 MHz	Multilayer	Surface Mount	165 MHz	0603 (1608 Metric)	15	Shielded	0.031 in	0.063 in	0.037 in	-40 °C	85 °C	Ferrite	600 mOhm	0603 (1608 Metric)
Murata Electronics LQM18NNR27K00D	270 nH	50 mA	10 %	25 MHz	Multilayer	Surface Mount	136 MHz	0603 (1608 Metric)	15	Shielded	0.031 in	0.063 in	0.037 in	-40 °C	85 °C	Ferrite	800 mOhm	0603 (1608 Metric)
Murata Electronics LQM18NNR39K00D	390 nH	0.035 A	10 %	25 MHz	Multilayer	Surface Mount	110 MHz	0603 (1608 Metric)	15	Shielded	0.031 in	0.063 in	0.035 in	-40 °C	85 °C	Ferrite	1 Ohm	0603 (1608 Metric)
Murata Electronics LQM18NNR12K00D	120 nH	50 mA	10 %	25 MHz	Multilayer	Surface Mount	205 MHz	0603 (1608 Metric)	15	Shielded	0.031 in	0.063 in	0.035 in	-40 °C	85 °C	Ferrite	500 mOhm	0603 (1608 Metric)
Murata Electronics LQM18NN1R8K00D	1.8 µH	0.025 A	10 %	10 MHz	Multilayer	Surface Mount	55 MHz	0603 (1608 Metric)	35	Shielded	0.031 in	0.063 in	0.037 in	-40 °C	85 °C	Ferrite	950 mOhm	0603 (1608 Metric)
Murata Electronics LQM18NNR22K00D	220 nH	50 mA	10 %	25 MHz	Multilayer	Surface Mount	150 MHz	0603 (1608 Metric)	15	Shielded	0.031 in	0.063 in	0.035 in	-40 °C	85 °C	Ferrite	800 mOhm	0603 (1608 Metric)
Murata Electronics LQM18NN2R2K00D	2.2 µH	0.015 A	10 %	10 MHz	Multilayer	Surface Mount	50 MHz	0603 (1608 Metric)	35	Shielded	0.031 in	0.063 in	0.035 in	-40 °C	85 °C	Ferrite	1.15 Ohm	0603 (1608 Metric)
Murata Electronics LQM18NNR47K00D	470 nH	0.035 A	10 %	25 MHz	Multilayer	Surface Mount	105 MHz	0603 (1608 Metric)	15	Shielded	0.031 in	0.063 in	0.035 in	-40 °C	85 °C	Ferrite	1.35 Ohm	0603 (1608 Metric)
Murata Electronics LQM18NNR33K00D	330 nH	0.035 A	10 %	25 MHz	Multilayer	Surface Mount	125 MHz	0603 (1608 Metric)	15	Shielded	0.031 in	0.063 in	0.035 in	-40 °C	85 °C	Ferrite	850 mOhm	0603 (1608 Metric)
Murata Electronics LQM18NN1R0K00D	1 µH	0.025 A	10 %	10 MHz	Multilayer	Surface Mount	75 MHz	0603 (1608 Metric)	35	Shielded	0.031 in	0.063 in	0.035 in	-40 °C	85 °C	Ferrite	600 mOhm	0603 (1608 Metric)
