415490 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

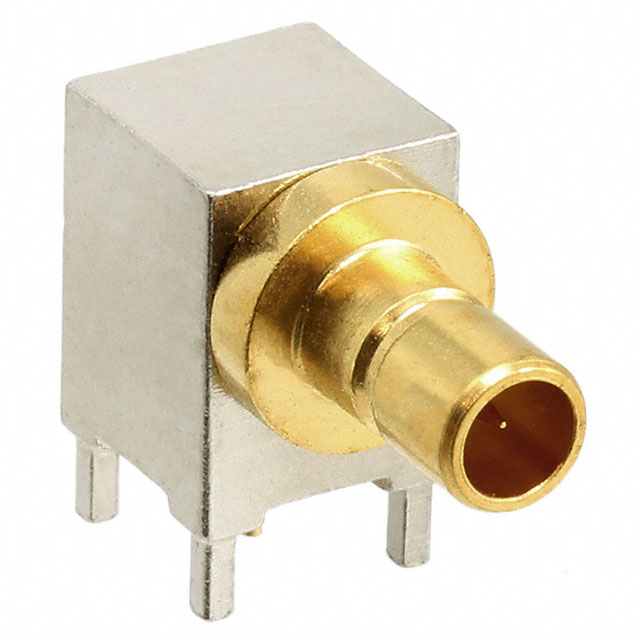

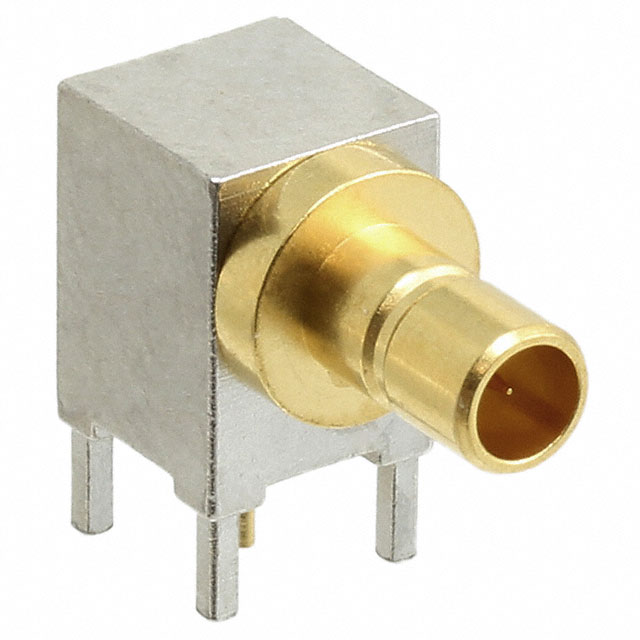

CONN MINI SMB JACK R/A 75OHM PCB
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Dielectric Material | Voltage Rating | Body Finish | Body Material | Fastening Type | Housing Color | Connector Style | Mounting Type | Connector Type | Contact Termination | Shield Termination | Center Contact Material | Impedance | Frequency - Max | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold Nickel | Brass | Snap-On | Gold Silver | Mini SMB | Right Angle Through Hole | Jack Male Pin | Solder | Solder | Brass | 75 Ohm | 4 GHz | 1 |
 TE Connectivity AMP Connectors | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold Nickel | Brass | Snap-On | Gold Silver | Mini SMB | Right Angle Through Hole | Jack Male Pin | Solder | Solder | Brass | 75 Ohm | 4 GHz | 1 |
